Heat Shrinkage

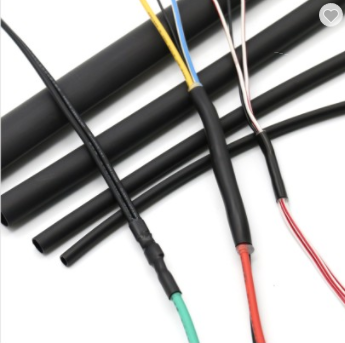

Heat shrink tubing machine is a specialized device that uses heat to shrink heat shrink tubing around cables or components. It is widely used in electronic manufacturing, automotive, aerospace, and other industries. Its core principle is to utilize the thermoplastic properties of heat shrink materials (such as PVC, PE, PTFE, etc.) to shrink them at high temperatures to form a sealed or insulated protective layer.
Home Porducts Heat Shrinkage
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

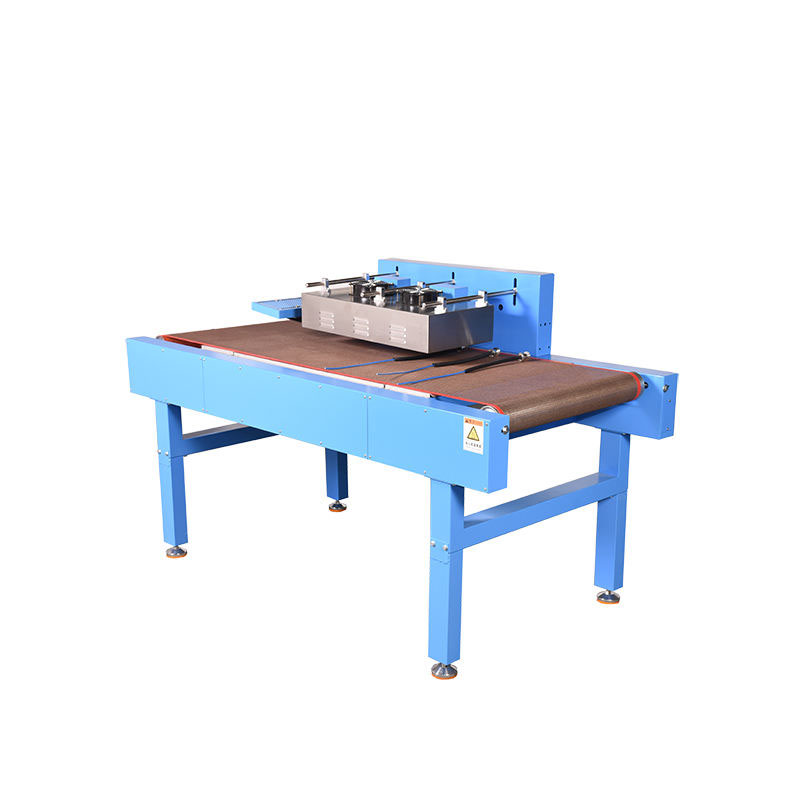

heat shrinkable tube heater
Model:MN-H4010
ENQUIRE NOW!
1. The heating product is uniform, does not damage the wire, concentrates the heat energy, and consumes low power.
2. Pipeline operation, high yield.

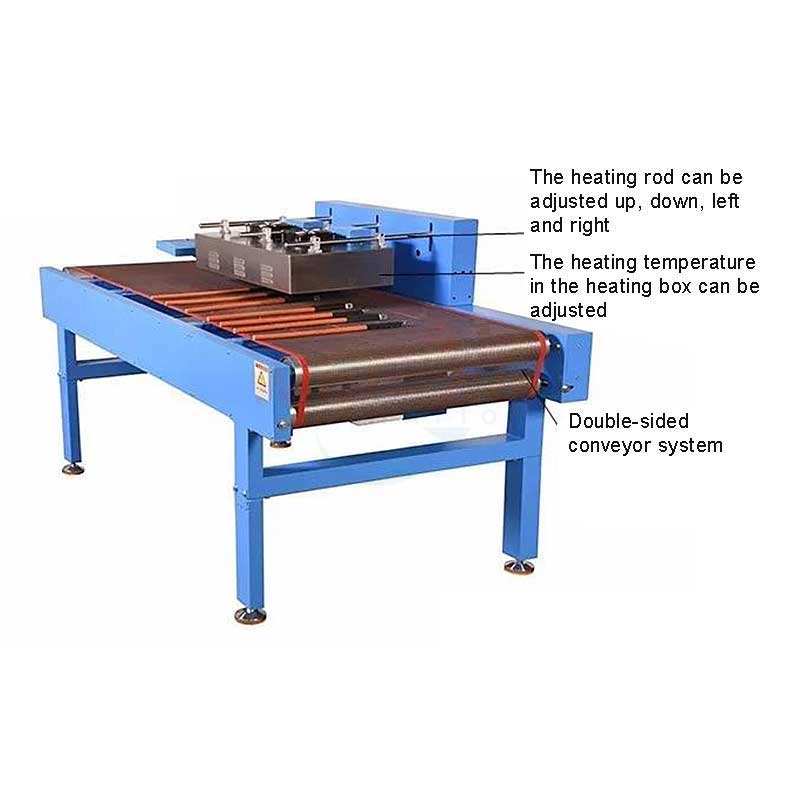

3. The heating position can be adjusted according to different wiring harness. The vertical distance and parallel direction from heater to conveyor belt can be adjusted.
Specifications
Video
Download
ModelMN-H4010-1MN-H4010-2
Heating width1-220mm1-180mm
Wire diameter1-18mm1-25mm
Conveying width1-650mm1-650mm
Temperature range1-2001-260
Temperature accuracy±5±5
Noise< 48db<53db<>
Heating power3KW4KW
Weight92103
Dimension1800*860*10701800*860*1070
Heating systemSingle side heatingDouble heating

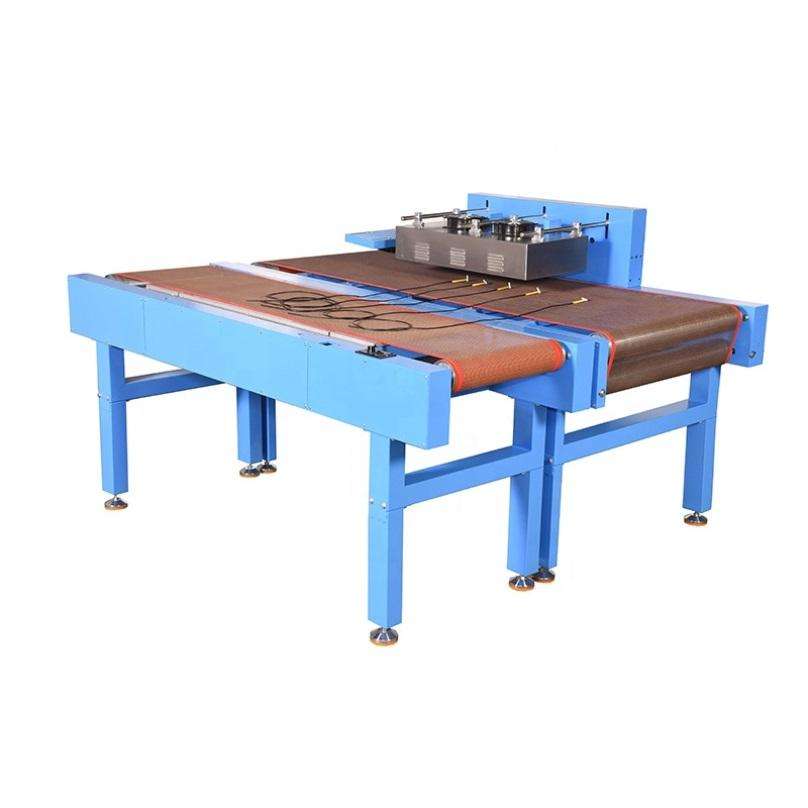

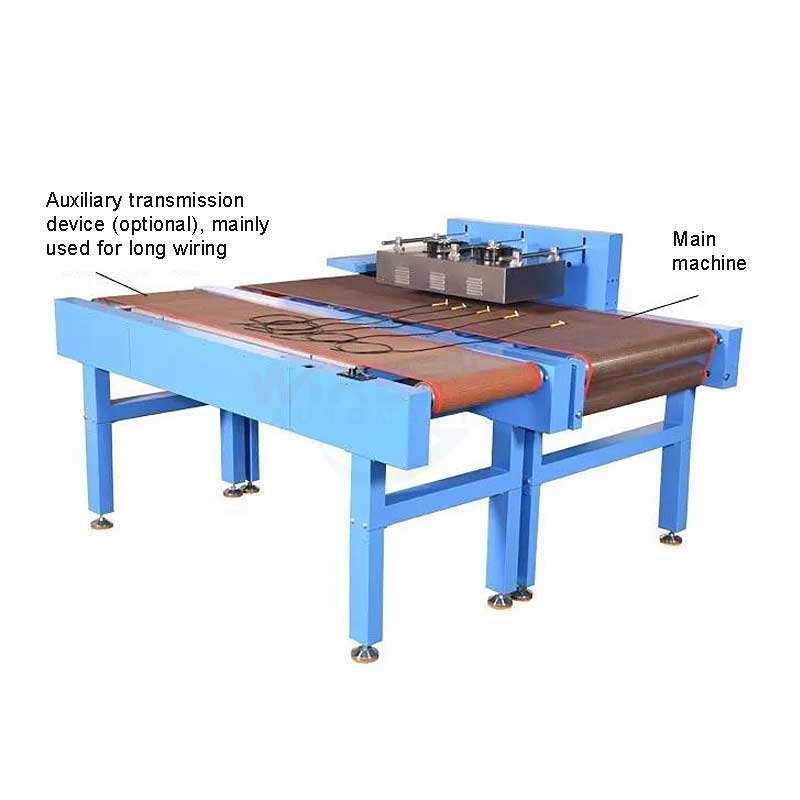

Optional extra conveyor400/600mm400/600mm
Feature
