Wire Shielding Brushing machine (OD 1-30mm)
Model:MN-T6065
ENQUIRE NOW!

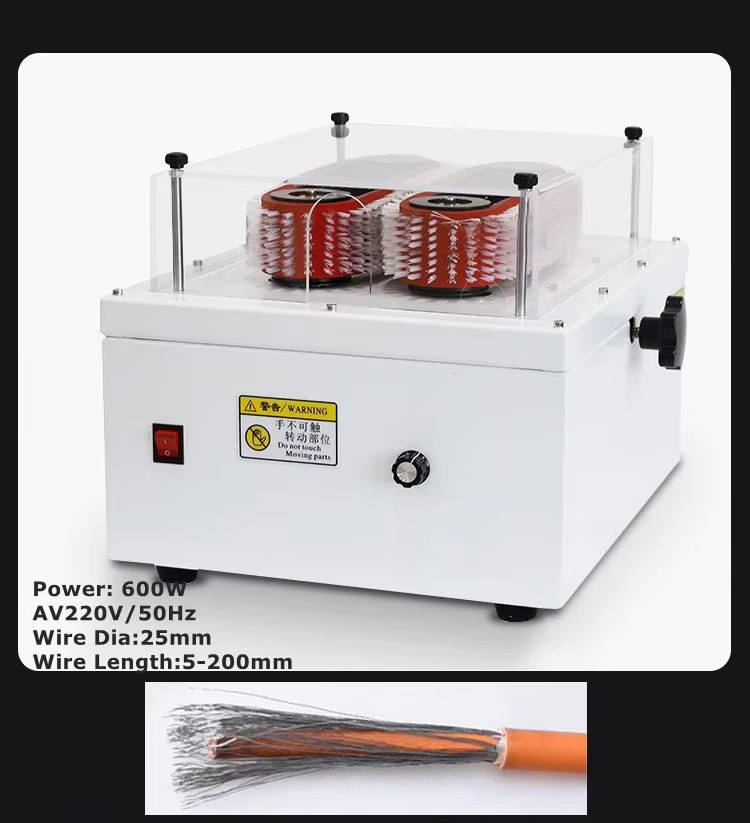

Model: MN-T6065
Wire diameter: 1 - 30 mm
Combing length: 5 - 200 mm
Production rate:0 - 1800 rev/min (adjustable)
Power: 300 W * 2
Specifications
Video
Download
ModelMN-T6065
Wire diameter1 - 30 mm
Combing length5 - 200 mm
Production rate0 - 1800 rev/min (adjustable)
Power300 W * 2
Weight46 kg
Dimension460 * 480 * 320 mm

    Wide Compatibility: Designed for 1-30mm wire diameter cables with 5-200mm adjustable combing length, perfectly suitable for all wound and braided shielded cables, meeting diverse cable processing demands.

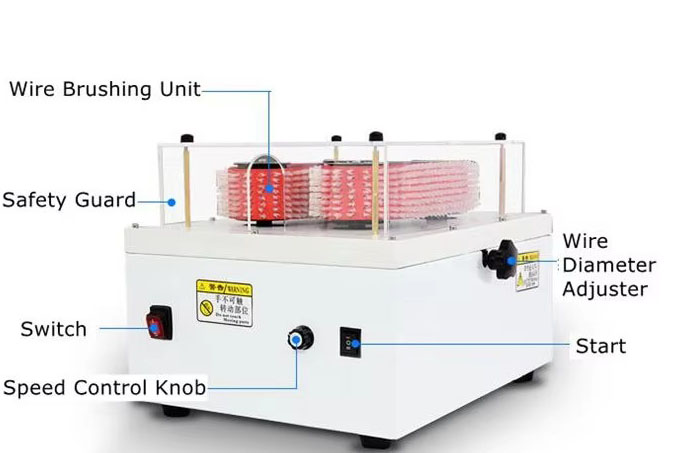

    Precision Adjustable Design: The brush wheel spacing is fully adjustable and easy to modify, enabling flexible adaptation to cables of different diameters for accurate shield net combing and separating.

    Stepless Speed Regulation: Equipped with 0-1800 rev/min adjustable rotating speed, supports customized processing speed, ensures stable operation and greatly accelerates wire splitting and carding workflow.

    Durable Powerful Performance: Adopts dual 300W power configuration, delivers stable and lasting power output. 46kg lightweight body realizes flexible placement and convenient operation for factory production lines.

    Safe Operation Protection: Comes with a professional safety cover, effectively isolating running brush wheels to prevent operational risks and protect the safety of operators during working.

    High Continuous Working Efficiency: Supports long-term uninterrupted continuous work, avoids frequent shutdowns, effectively improves cable shield processing efficiency and reduces manual labor cost.

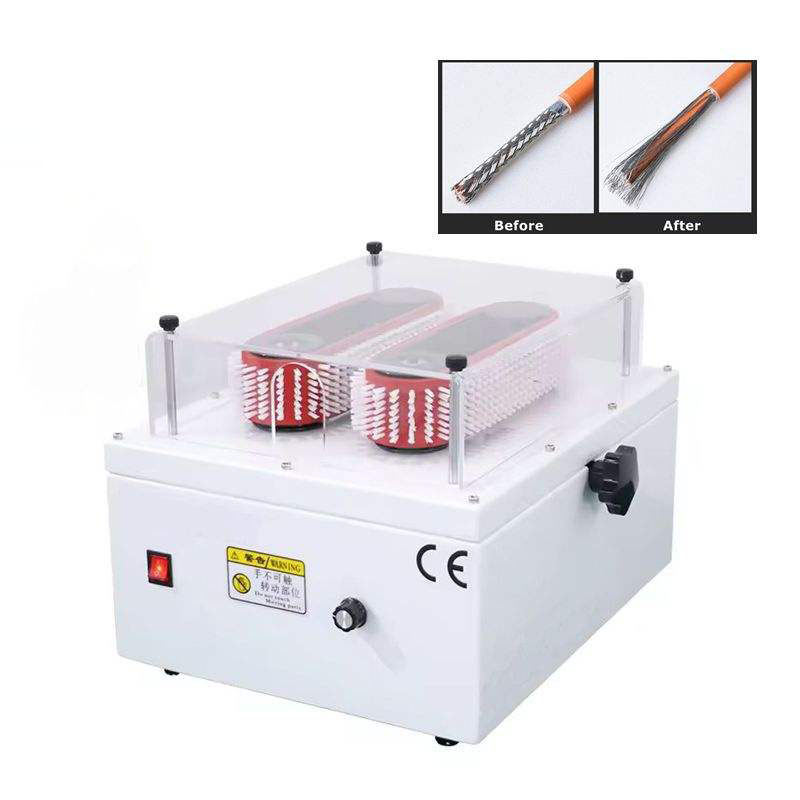

    Automatic Processing: After stripping the cable jacket, simply place the cable on the machine track, the equipment will automatically rotate and comb the shield net, realizing semi-automatic processing and saving working time.
