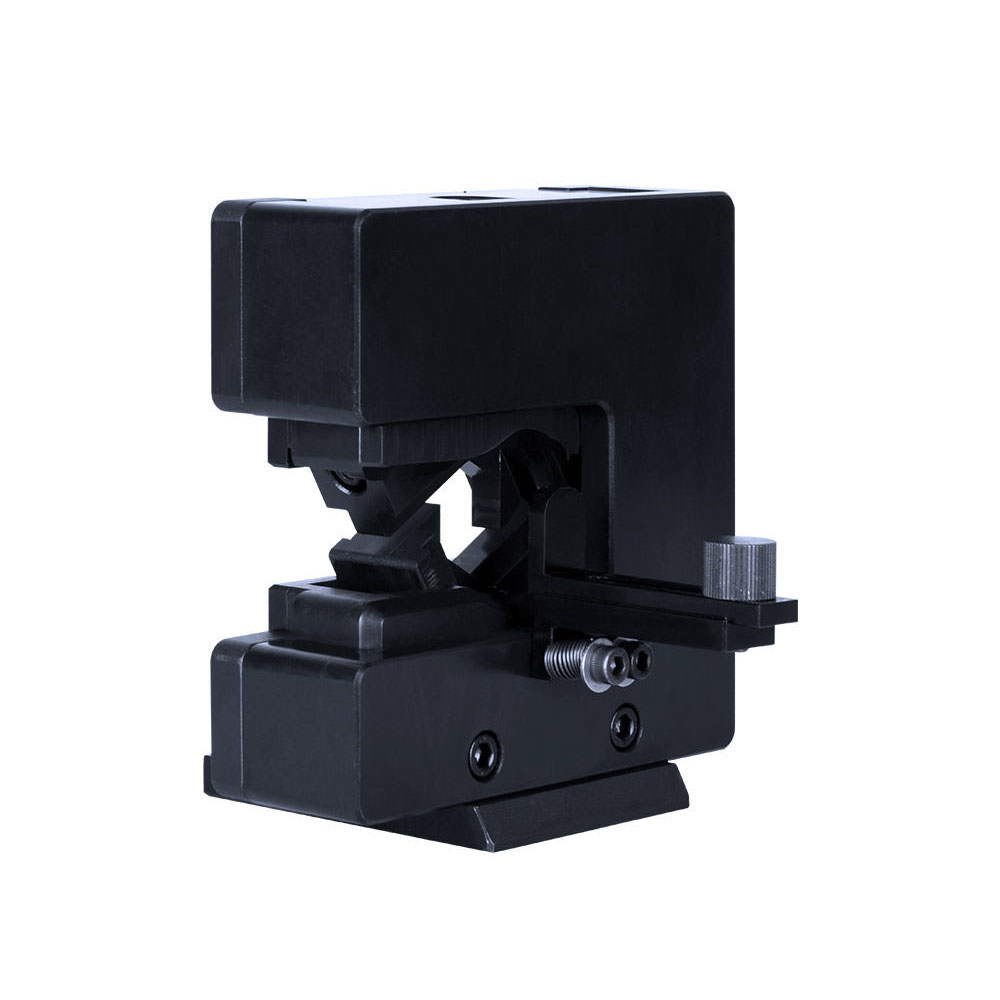

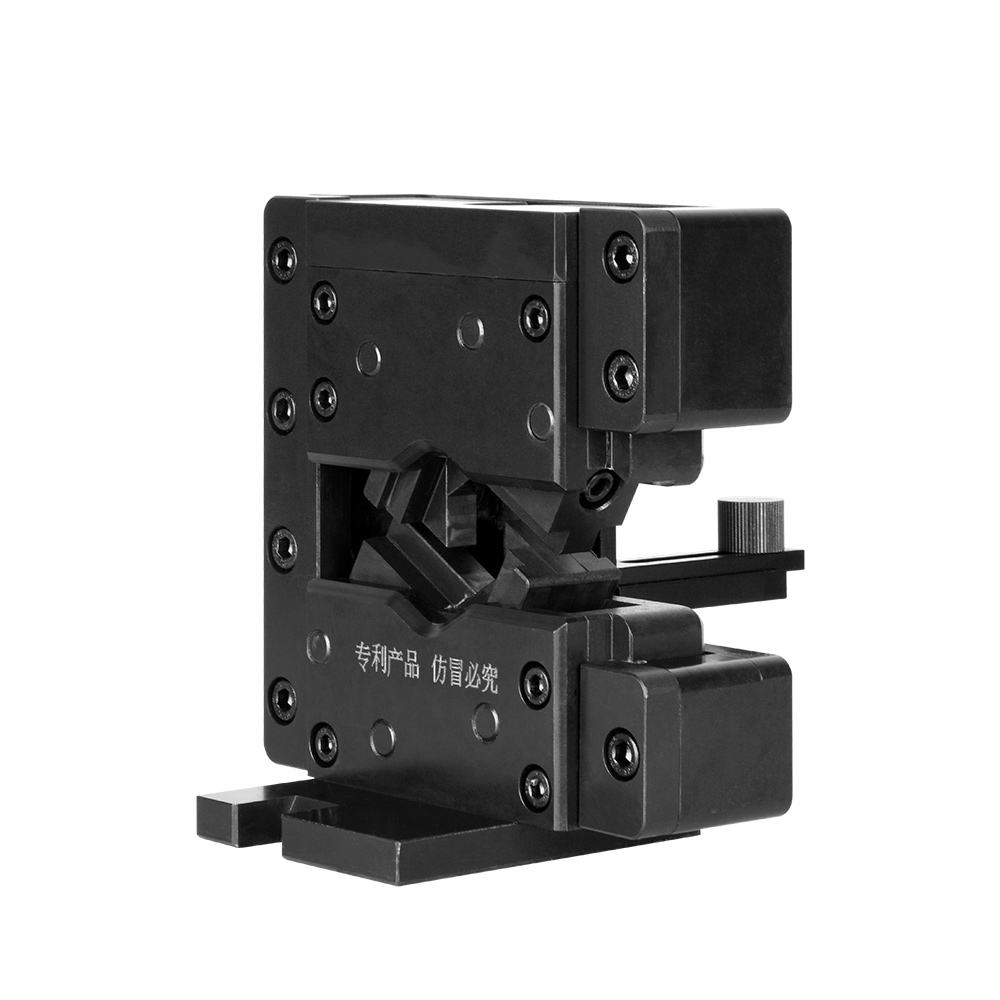

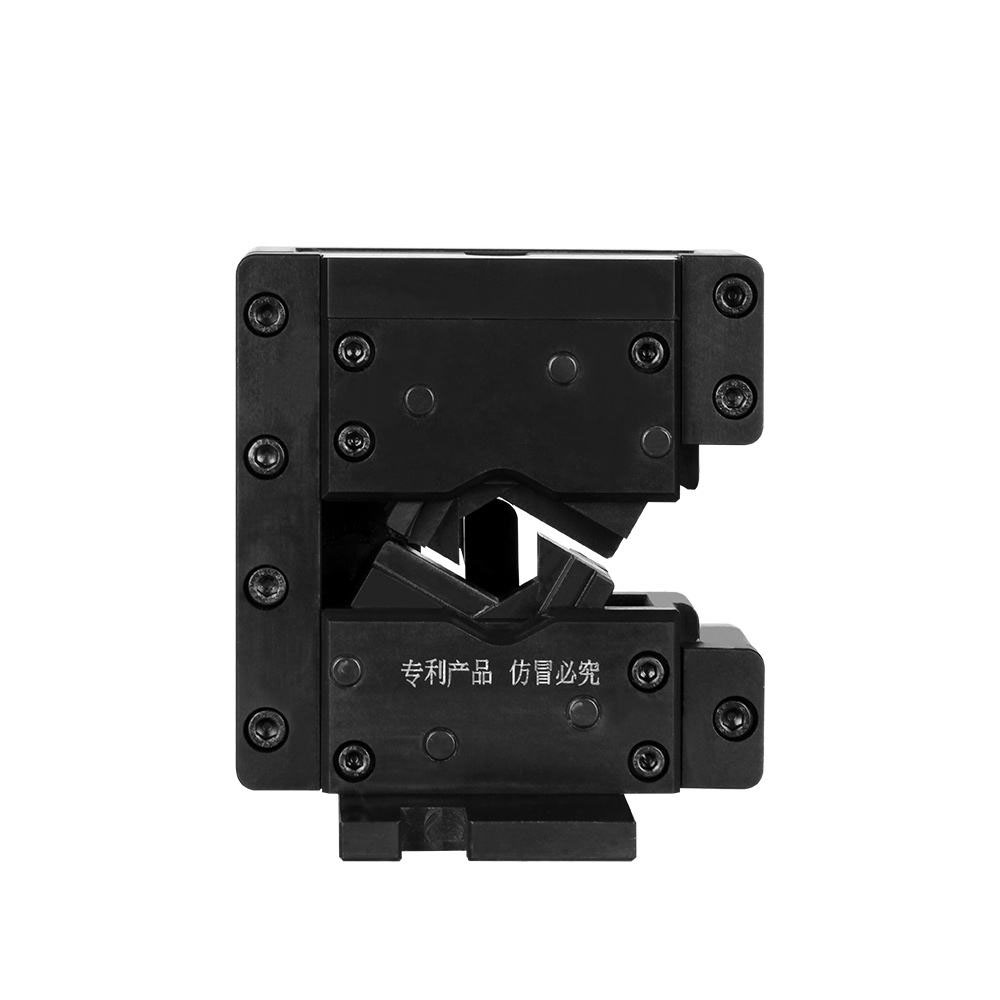

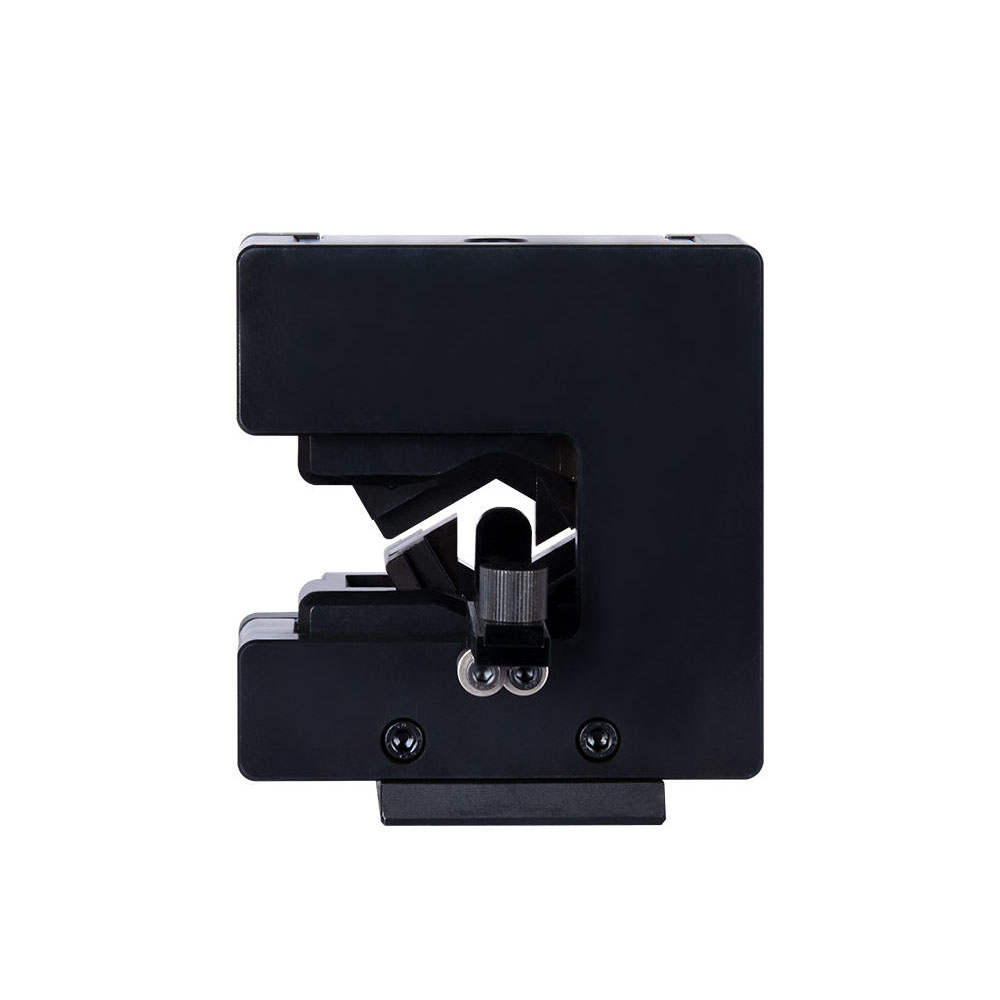

Model | MN-M5011 |
Applicable equipment | 4T/10T servo terminal crimping machine, 8T or above silent terminal machine |
Size | 70*130*142mm |
Wight | 5.2kg |
Working stroke | 0-50mm |
Crimping scope | 6-95mm² |
Crimping accurancy | ±0.03mm |
Thickness of knife mold | 3-22mm |
Crimping shape | Hexagon |
Crimping frequency | About 100,000 times |
Feature | No change to mold, strong versatility |
Technical Performance Advantages
1. High - precision Crimping: Achieves a crimping accuracy of ±0.03mm, ensuring reliable and consistent connections, which helps improve the overall quality and stability of products.
2. Large Working Stroke and Wide Crimping Range: Features a working stroke of 0 - 50mm and a crimping scope of 6-95mm²,capable of handling a wide variety of wire gauges and meeting diverse production requirements.
3. High Durability: With a crimping frequency of approximately 100,000 times, it has excellent durability, reducing the frequency of mold replacements, cutting maintenance costs, and boosting production efficiency.
Product Application
Our products are mainly used in new energy electric vehicle wiring harness processing, charging gun and charging pile processing,aerospace, datatransmission, medical equipment, industrial electronics, home appliances and other fields.
