| Model | MN-A9050 |

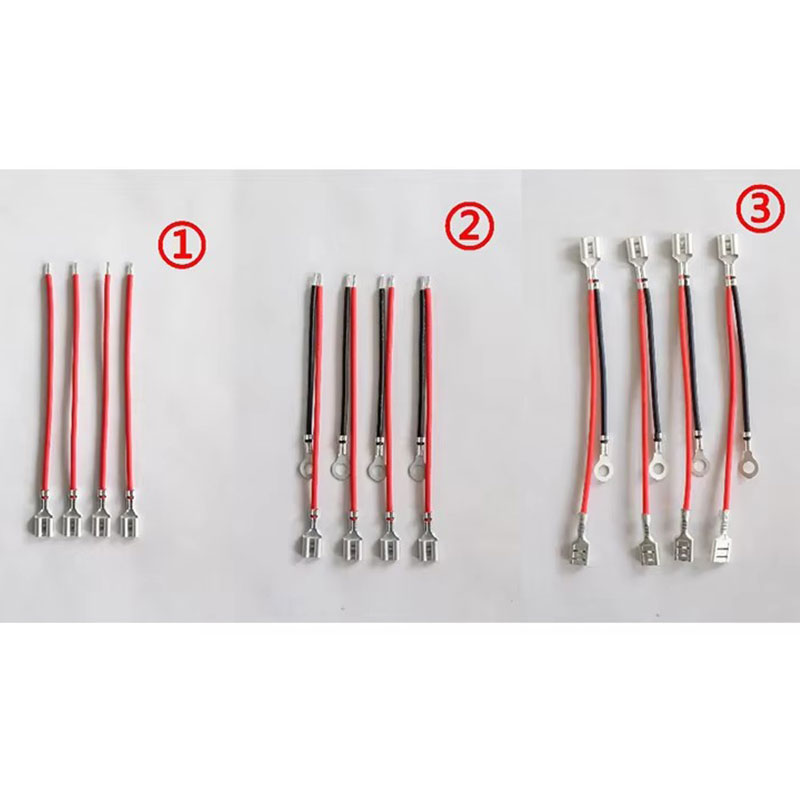

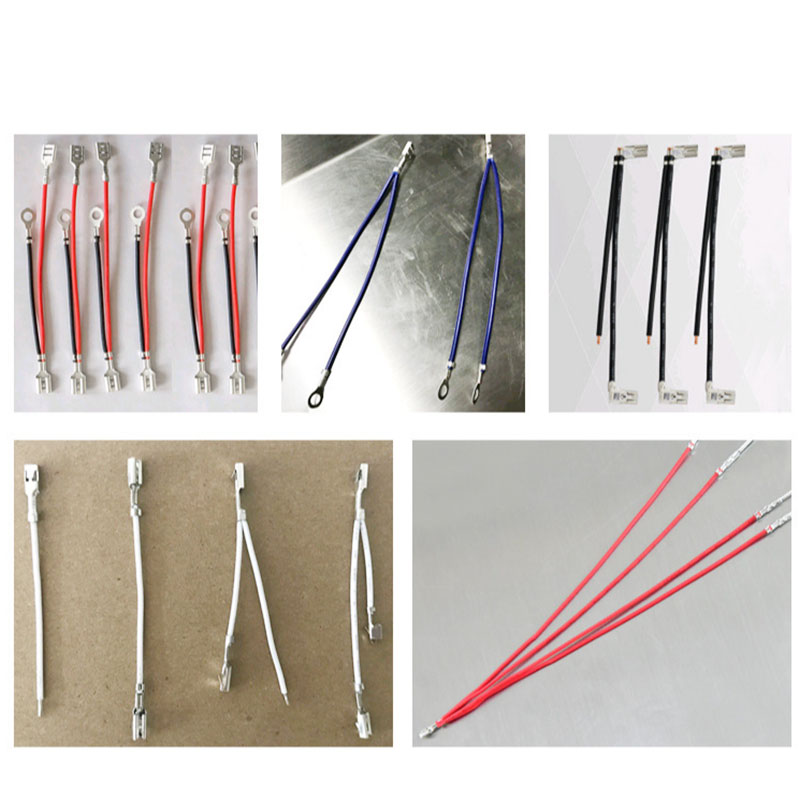

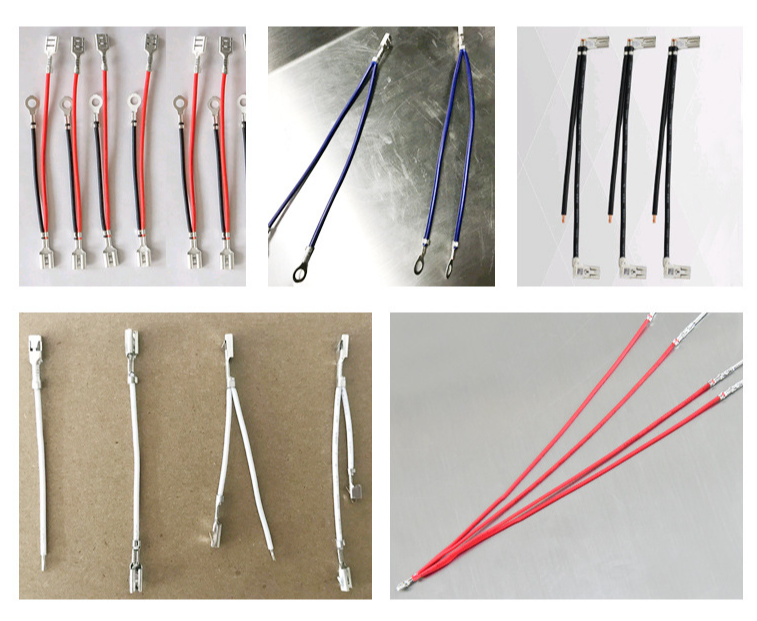

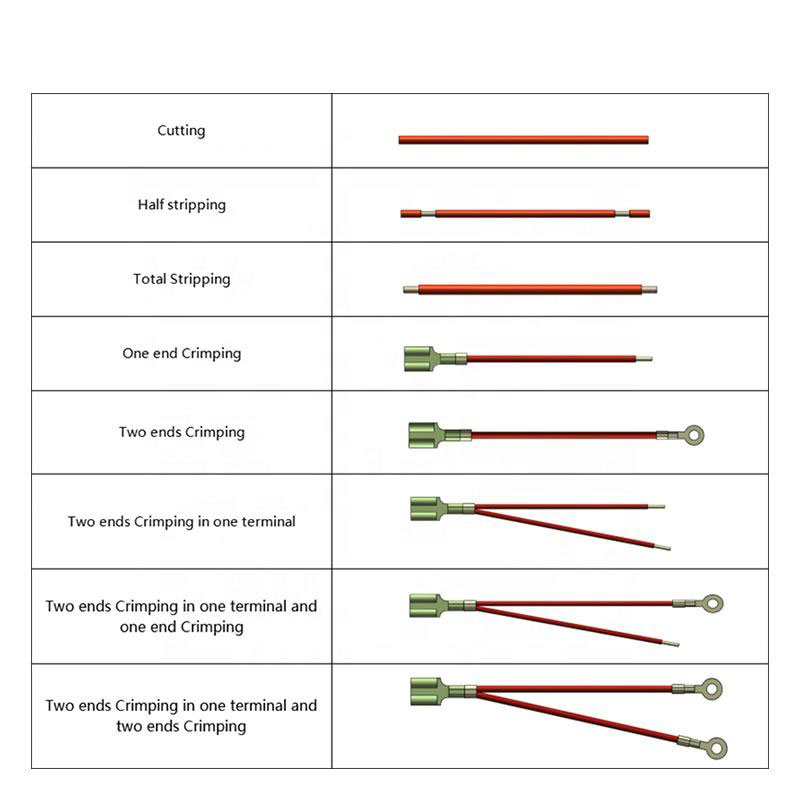

| Machine Features | Wire cutting, two-end stripping, single-end half stripping, single-wire single-end crimping, single-wire double-end crimping, double-wire and crimping, double-wire single-end crimping, three-end crimping terminal |
| Cutting length | 41mm ~ 9999mm |
| Cutting tolerance | ±0.2% or less |
| Stripping length | Front stripping 0.5~ 8mm Back stripping 0.1 ~ 10 mm |
| Processing efficiency | 3000pieces/h (within 100mm) |
| End pressure | 2.0T ( other pressures can be customized ) |
| Applicable wire | AWG16 # ~ 30# |
| Applicable mold | OTP, Horizontal mold, vertical mold (European mold can be customized) |
| Dimensions | Length 1400 * Width 800 * Height 1800 (mm) |
| Machine weight | About 600 Kg |
| Operating voltage | AC220V 50Hz |
| Working air pressure | 0.5 ~ 0.6MPa (stable, clean, dry) |
| Rated Power | 2.5KW |
Technical Precision and Reliability:
1. Dimensions & Weight: The machine#39;s robust build, measuring 1400mm (L) x 800mm (W) x 1800mm (H) and weighing approximately 600kg, ensures stability and durability for continuous operation.
2. Power & Air Supply: Operating on AC220V 50Hz with a working air pressure of 0.5~0.6MPa (stable, clean, dry) and a rated power of 2.5KW, it delivers consistent performance.
3. Cutting & Stripping Accuracy: With a cutting length range of 55mm to 99,999mm and a cutting tolerance of ±0.2% or less, precision is guaranteed. Stripping lengths range from 0mm to 30mm for front stripping and 0mm to 16mm for back stripping.
4. High-Speed Processing: Achieving a cutting speed of 3800 pieces/h (within 100mm) and a processing efficiency of 3500 pieces/h (within 100mm), this machine significantly boosts productivity.
5. Crimping Power & Flexibility: Delivering an end pressure of 2.0T (customizable pressures available), it accommodates AWG14# to 28# wires and supports OTP, horizontal, and vertical molds (European molds customizable).
Key Features and Benefits:
* Multi-Functional Processing: The machine#39;s ability to handle various wire processing tasks, including the complex three-end crimping, makes it a versatile asset.
* High Precision & Consistency: Servo-driven systems and precise tolerances ensure consistent and accurate results, minimizing errors and waste.
* Enhanced Productivity: High processing speeds and automated functions significantly increase production output.
* Reduced Labor Costs: Automation reduces the need for manual labor, lowering operational costs.
* Customization Options: Adaptable mold support and customizable end pressure allow for flexibility in handling diverse wire harness requirements.
Applications:

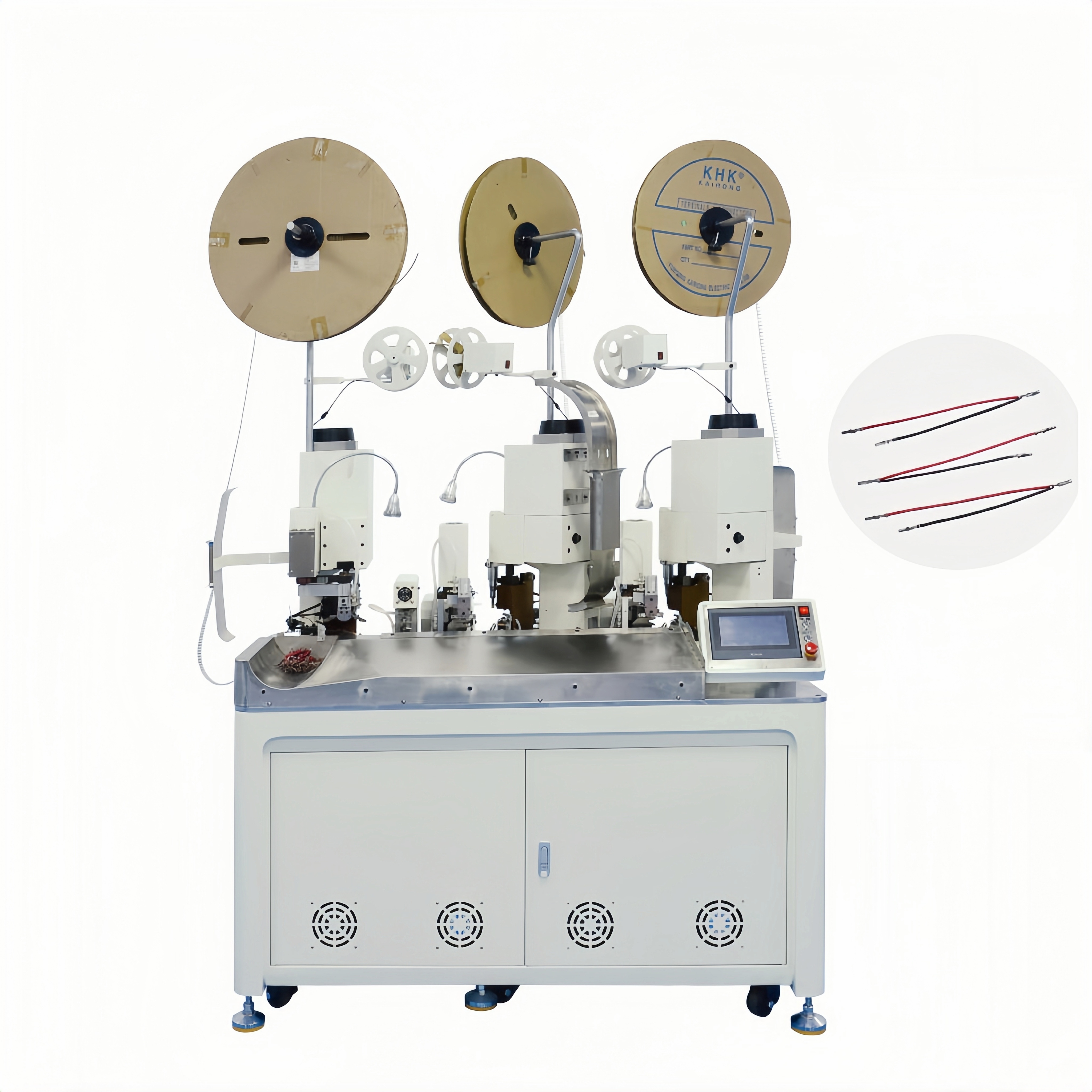

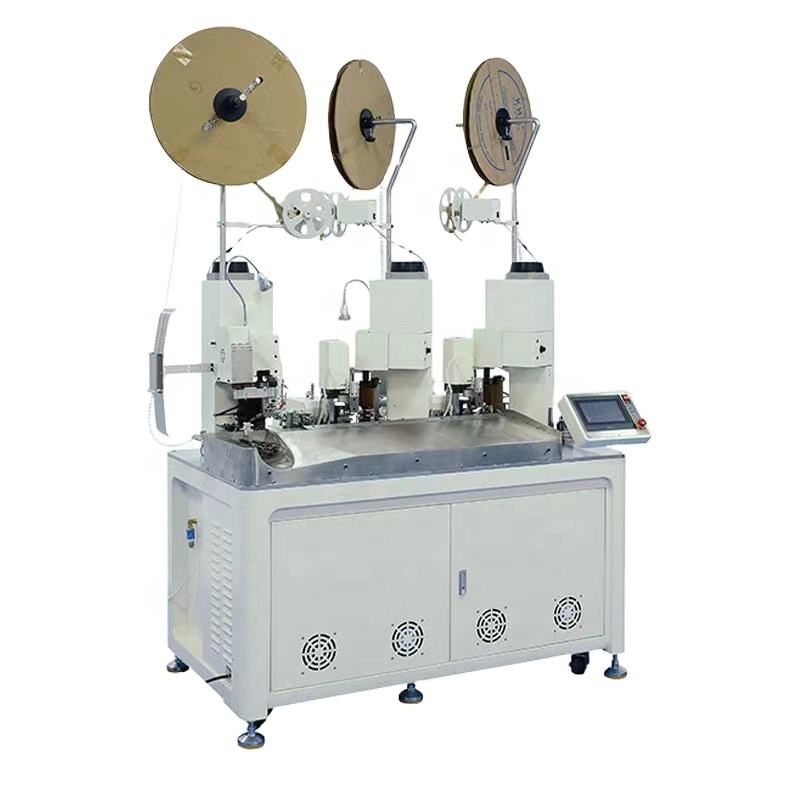

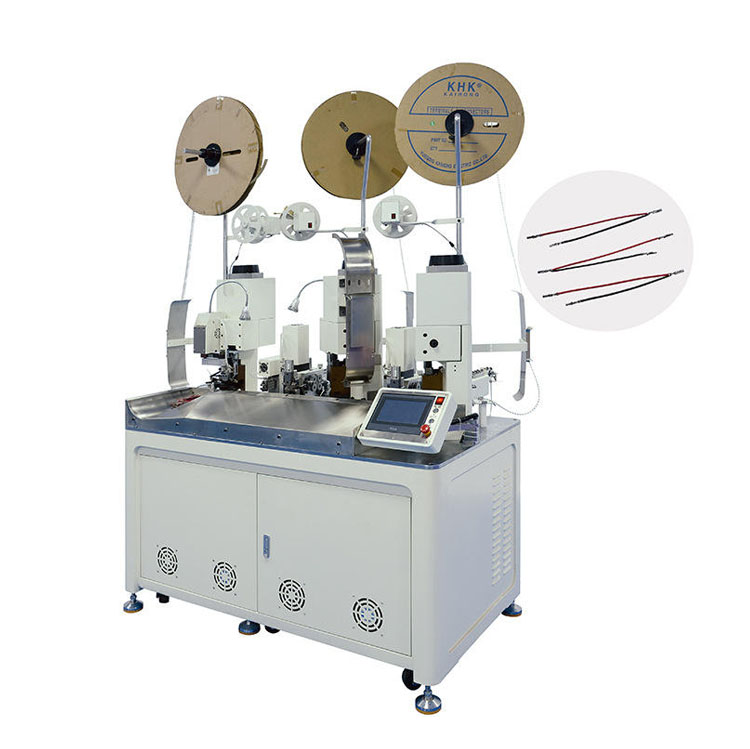

The three end crimping machine is ideal for industries requiring high-volume, precise wire harness production, including:
* Automotive manufacturing
* Electronics assembly
* Appliance manufacturing
* Telecommunications
Why Choose Our Three End Crimping Machine?
Our machine is designed for reliability and efficiency, incorporating advanced technology and robust construction. We offer customizable solutions to meet specific production needs, ensuring optimal performance and long-term value.
