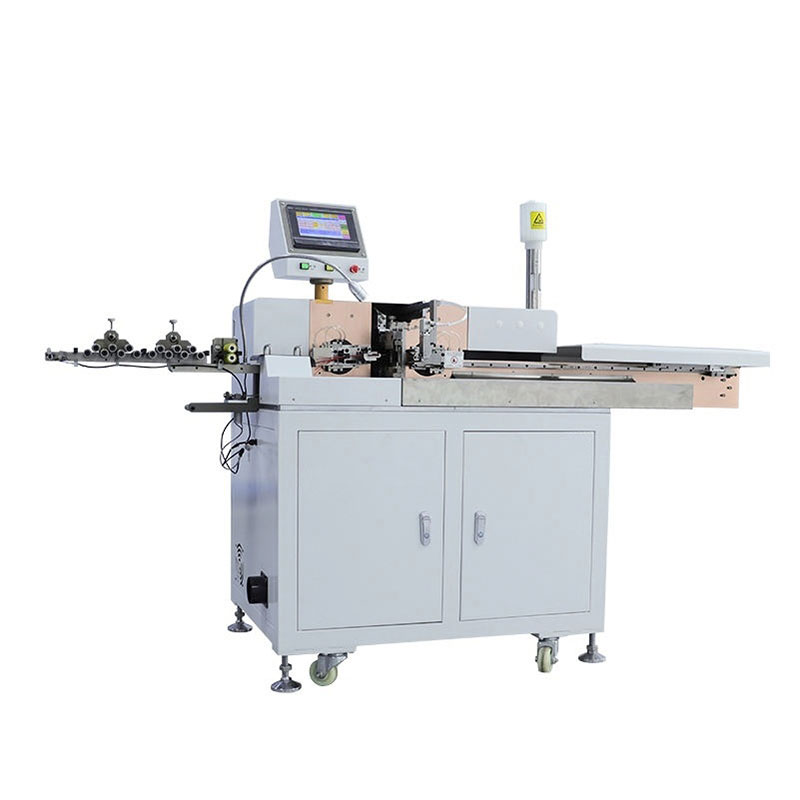

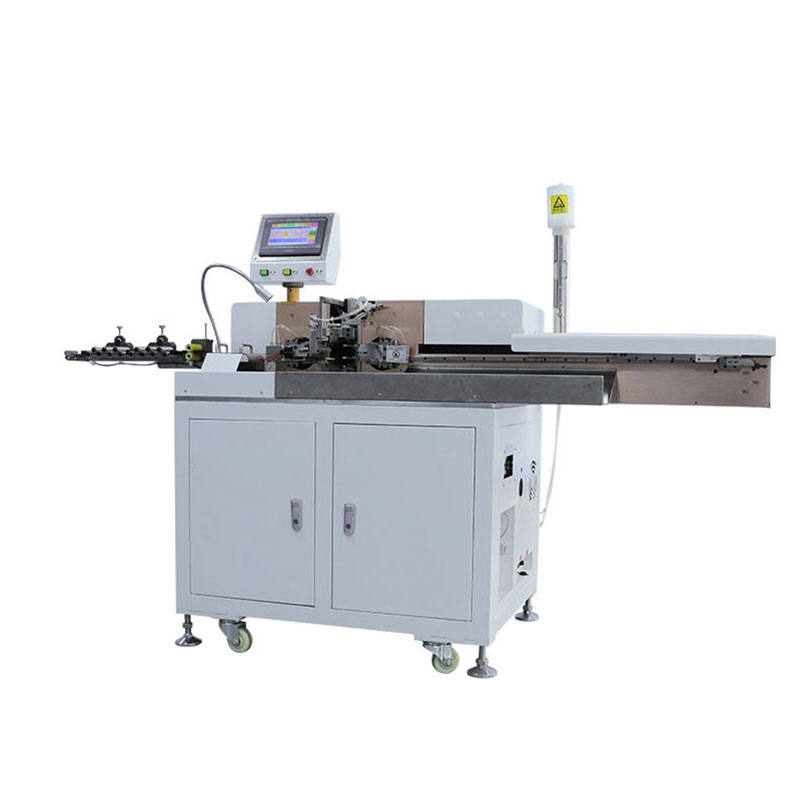

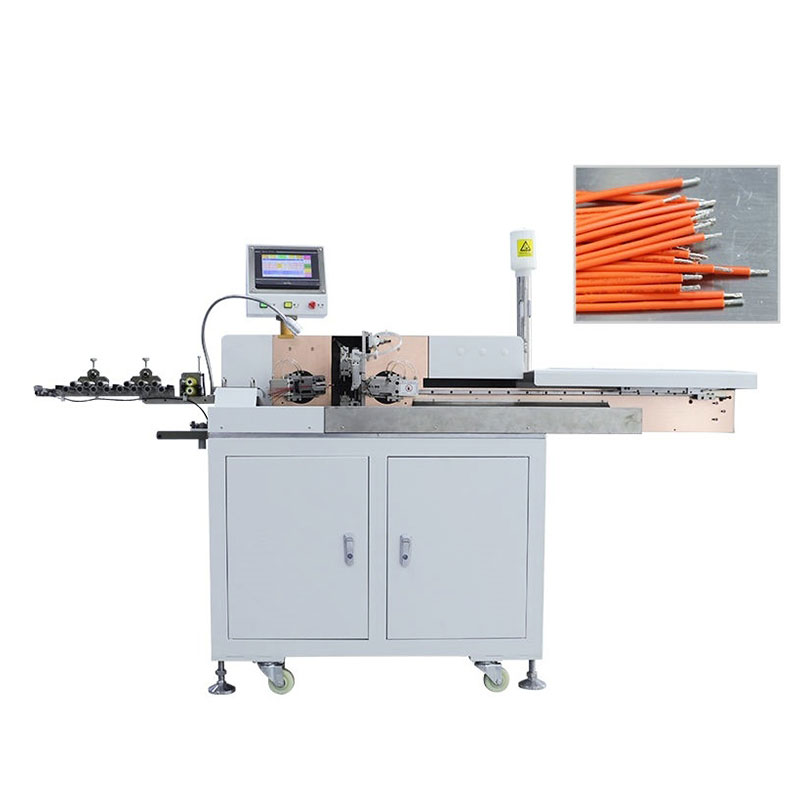

| Model | MN-A9055 |
| Wire range | AWG32-AWG16 |
| Stripping length | 1-12mm |
| Cut precision | ±(0.03*L) mm |
| Cutting length | 10-830mm |
| Twisting length | 2-10mm |
| Tinning length | 0.5-11mm |
| Capacity | 6000-15500pcs/hour |
| Power | 220V/110V/50/60HZ |
| Air pressure | 0.4-0.7Mpa |
| Machine size | 1720*750*1450mm |
| Weight | 358Kg |
| Transmission structure | Precision screw, guide rail, reducer |
1. Long and short line switching without changing the stripping clip, changing in seconds is thefirst in China; if you need to add cable splitting, you can add a motor electric splittingmechanism;
2.Fully automatic wire cutting, stripping, twisting and tinning machine, touch screen interface,blade size, wire cutting length, wire stripping length, wire twisting tightness, forward and reversetwisting, tinning depth, all digitally operated; the only one in China with motor-type wire twistingforward and reverse twisting, and fast and slow twisting tightness touch screen switching.
3.The program has been increased to include multiple stripping stages, and the front and rearstripping strokes have been increased, allowing for long-stroke stripping.
