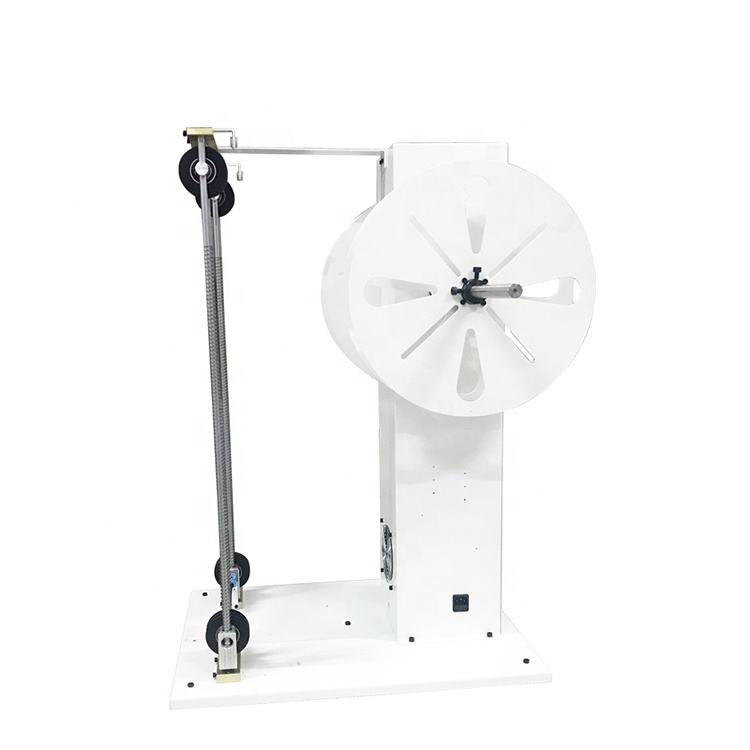

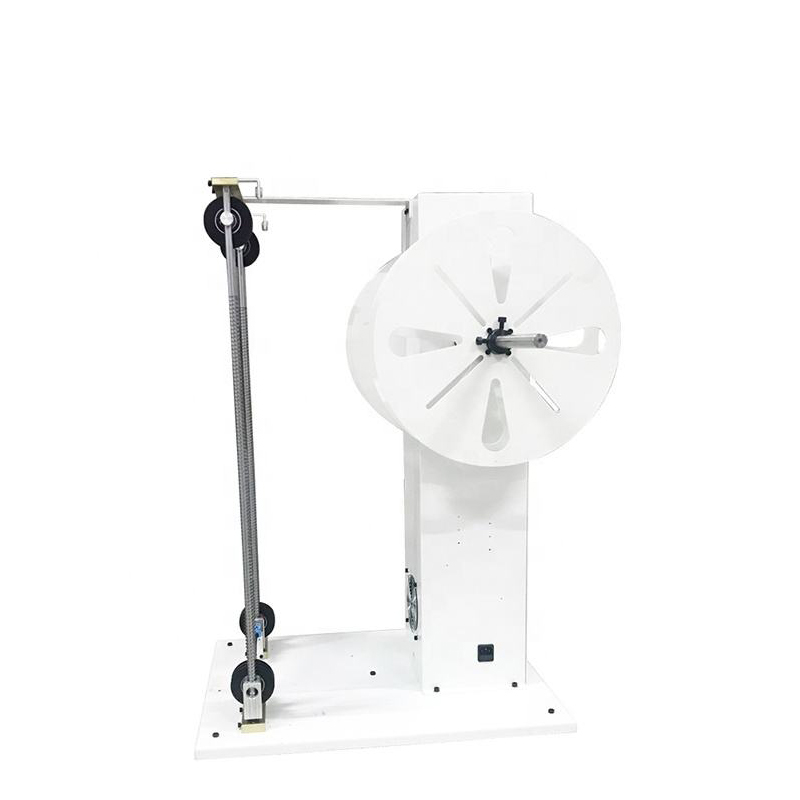

Wire Two-Axis Wire Feeding Machine (Max. Loading weight: 15kgs)
Model:MN-F7015

Model MN-F7015
Power Rating 180W
Wire Feeding speed Infinitely variable speeds, no need artificial adjust
Wire Feeding length According to feeding speed
Loading Weight Max 15KG

Specifications

Video

Download

Model	MN-F7015
Power Rating	180W
Wire Feeding speed	Infinitely variable speeds, no need artificial adjust
Wire Feeding length	According to feeding speed
Loading Weight	Max 15KG
Size	500500900mm

Feature

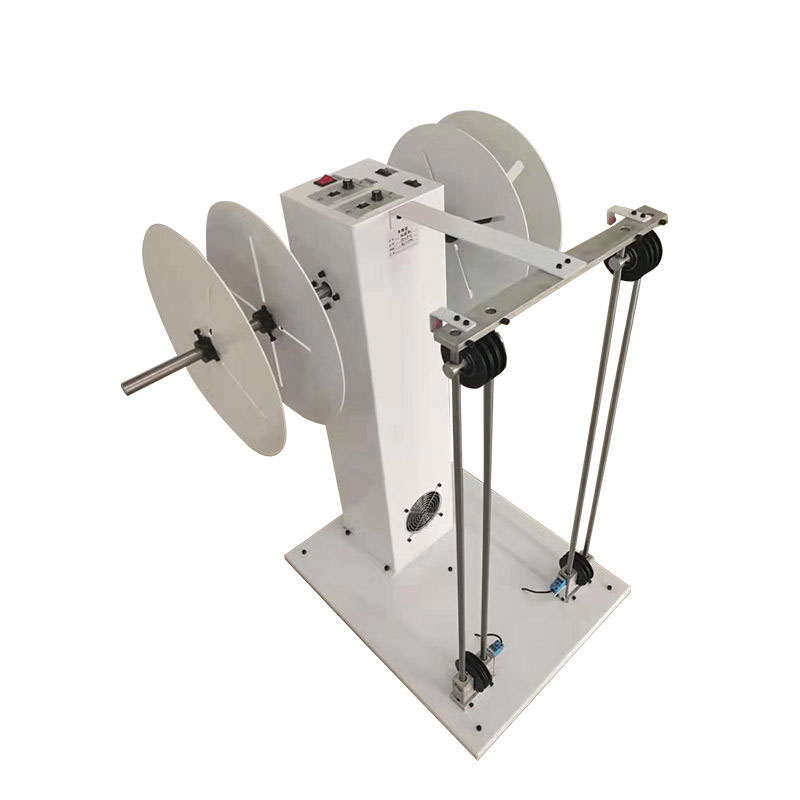

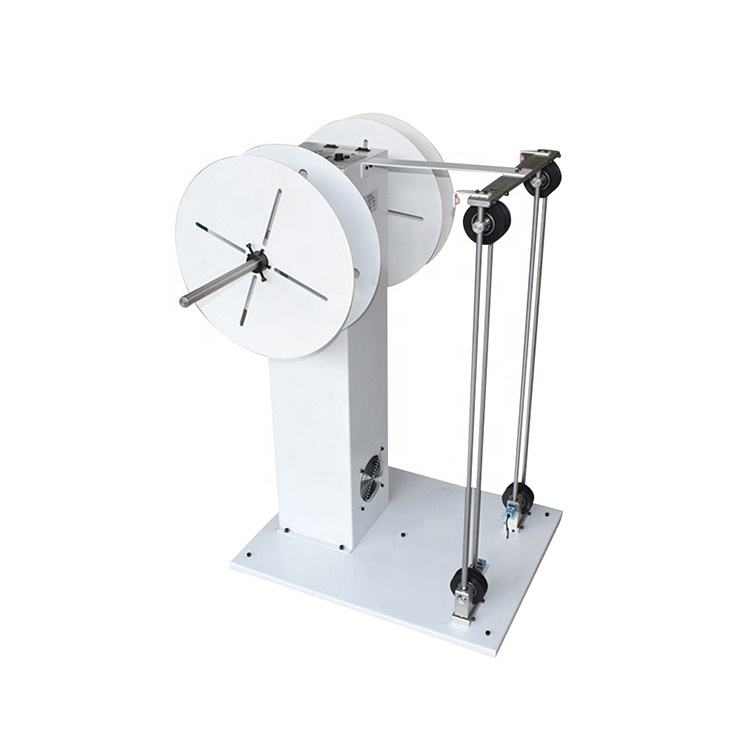

● The double station wire prefeeder is a free-standing, electric-demand prefeeding machine designed to pull wire and cable from racks or barrels and provide a constant tension to downstream wire processing machines.

● It is able to handle 2 different wires at the same time, each spool is driven by its individual motor, due to an electronic control system, the feed rate of both spools automatically adjusts to the actual requirement of any downline machine.
