MN-C100S-700S
Model:MN-C100S-700S
ENQUIRE NOW!

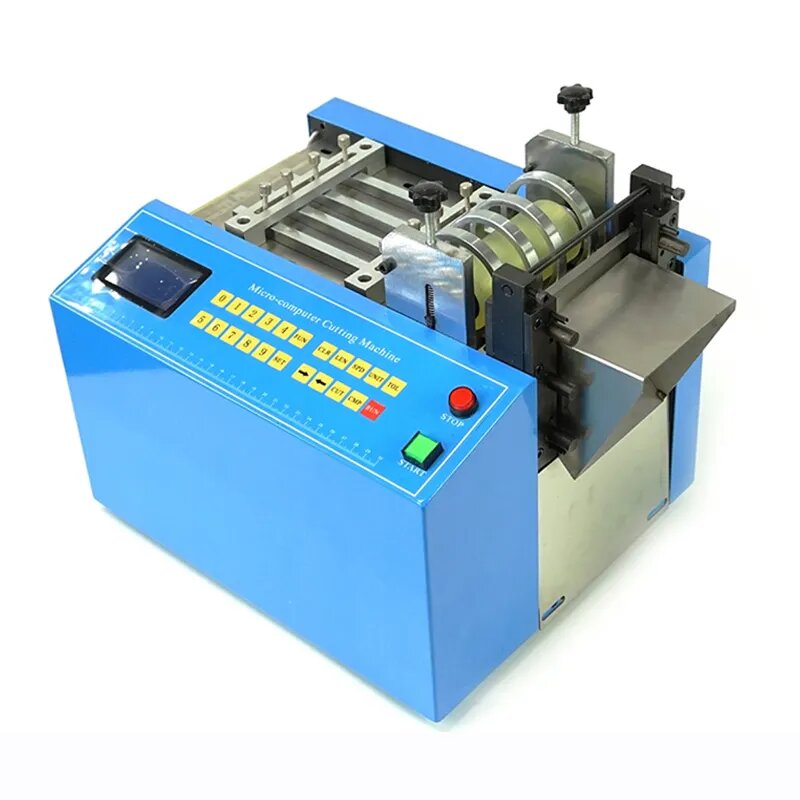

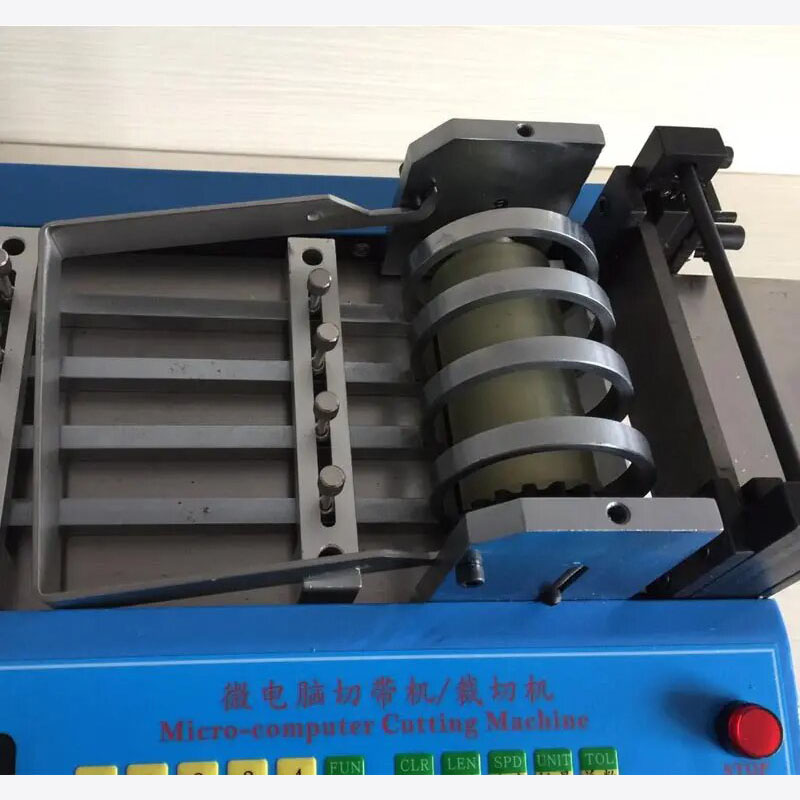

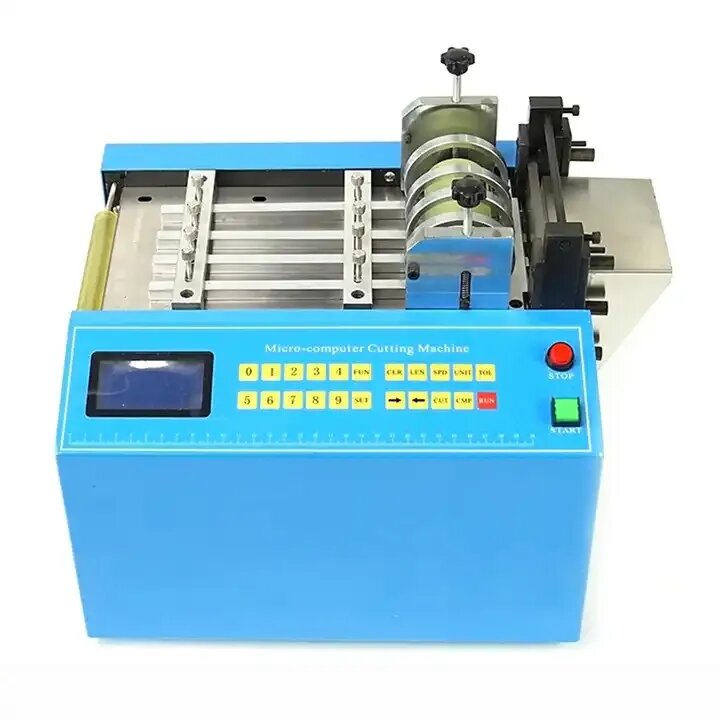

This fully automatic multifunctional cutting machine is designed for cutting tubes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc.
Specifications
Feature
Download
ModelMN-100
Cutting length (mm)1-100000
Max cutting width(mm)100
Cuttingspeed120
Knife max temperature(C)cold knife
Voltage/ frequency(V/Hz)110V/220V50/60
RatingPower350
Packagesize(CM)(L)43x(W)33x(H)48cm

ModelMN-100S
Cutting length (mm)1-100000
Max cutting width(mm)100
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower500
Packagesize(CM)(L)43x(W)33x(H)48cm

ModelMN-100ST
Cutting length (mm)1-100000
Max cutting width(mm)100
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower750
Packagesize(CM)(L)43x(W)33x(H)48cm

ModelMN-160S
Cutting length (mm)1-100000
Max cutting width(mm)120
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower1100
Packagesize(CM)(L)43x(W)38x(H)48cm

ModelMN-200S
Cutting length (mm)1-100000
Max cutting width(mm)200
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower1300
Packagesize(CM)(L)43x(W)43x(H)48cm

ModelMN-300S
Cutting length (mm)1-100000
Max cutting width(mm)300
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower1500
Packagesize(CM)(L)43x(W)51x(H)48cm

ModelMN-400S
Cutting length (mm)1-100000
Max cutting width(mm)400
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower1800
Packagesize(CM)(L)43x(W)62x(H)48cm

ModelMN-500S
Cutting length (mm)1-100000
Max cutting width(mm)500
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower2000
Packagesize(CM)(L)43x(W)81x(H)48cm

ModelMN-600S
Cutting length (mm)1-100000
Max cutting width(mm)600
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower2200
Packagesize(CM)(L)65x(W)91x(H)48cm

ModelMN-700S
Cutting length (mm)1-100000
Max cutting width(mm)700
Cuttingspeed150
Knife max temperature(C)cold knife
Voltage/frequency(V/Hz)110V/220V50/60
RatingPower2500
Packagesize(CM)(L)65x(W)91x(H)48cm

This fully automatic multifunctional cutting machine is designed for cutting tubes and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, etc.
Suitable for cutting all kinds of non-woven fabrics, PET protective film, PVC film, PE film, plastic film, heat shrinkable film, hot melt film, Mylar film, EVA foam, all kinds of insulation paper, release paper, quit Tape, all kinds of copper foil, aluminum foil, copper tape, aluminum tape, nickel tape, tin foil and other metal sheet.
1.High efficiency and high accuracy: up to 150 times per minute;
2.Tolerance: +/- 0.5% of cutting length;
3.Cutting type: Cold cutting with a durable cold knife;

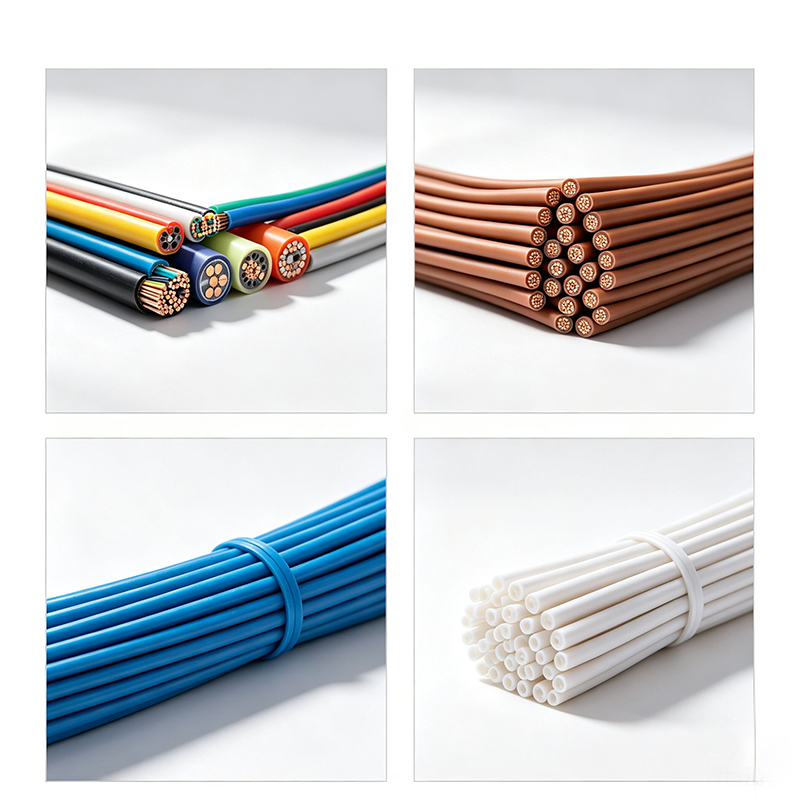

4.Suitable for cutting fiberglass tubes, teflong tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, electric cables, and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.
5.Automatic operation: It works automatically only by setting length and quantity;
6.Automatic stopper: It stops automatically if materials run out during operation;
7.Memory function: the previously set length, quantity and speed will not be erased even if power off & on;
8.We supply different models to fit your requests.
