AM-10 Easy Carry Pneumatic Crimper, Pneumatic JST Crimp Tool Cable Lug Crimping Machine Terminal Crimper

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

< >

1.3T Pneumatic Terminal Crimping Machine
Model:AM-10

Model:AM-10
Crimping range: Non-insulated terminals《10mm²;Insulated Terminal《6mm²；tube terminal 《10mm²
Air Pressure Range:0.5-0.8Mpa
Output:13.5KN

Metric

Imperial

Model AM-10

Crimping force 1.3T

Air pressure 0.4-0.7Mpa

Crimping range Non-insulated terminals《10mm²;Insulated Terminal《6mm²；tube terminal 《10mm²

Material high-carbon steel

Weight 4 kg

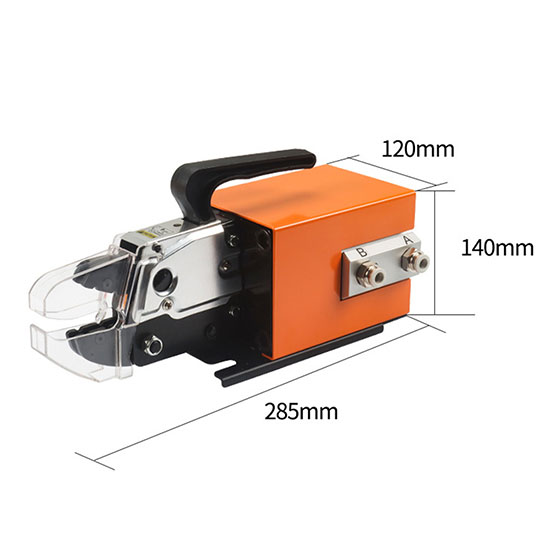

Dimension 26*12*14 cm

Foot Pedal Yes

• AM-10 Pneumatic Crimping Tools used for non-insulated terminals,insulated terminals, wire-end ferrules, and many other cable connections.

•The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed.

•he die sets are interchangeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.

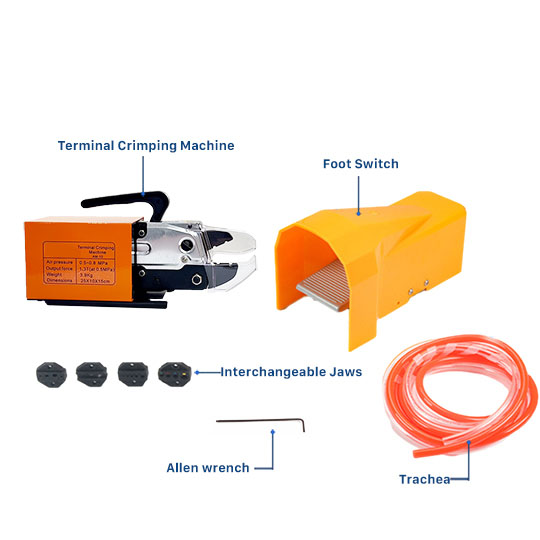

•Accessories: 1 die set; 1 foot air valve; 2 air pipes.
