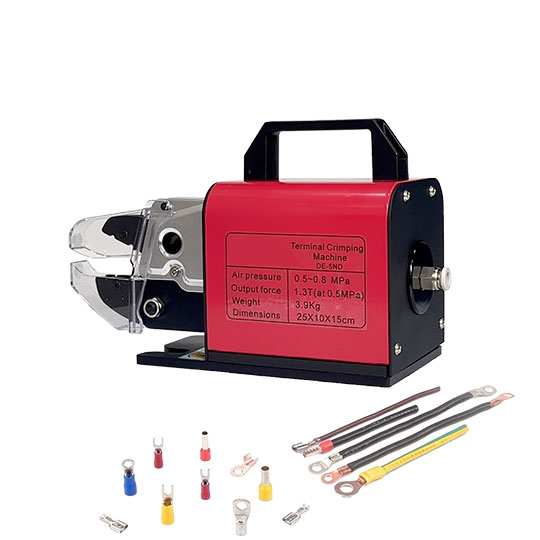

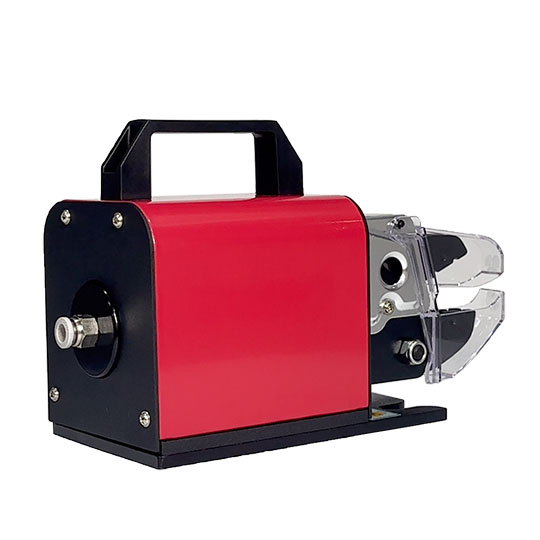

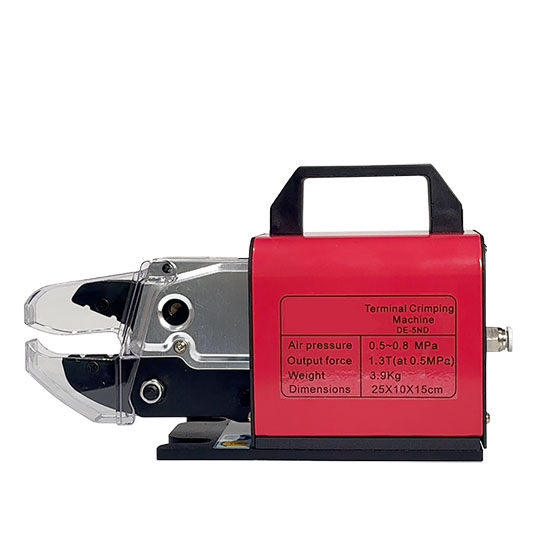

1.3T Multi-Functional Pneumatic Terminal Crimping Machine
Model:MN-5ND

Model: MN-5ND
Crimp Size:0.5~6sqmm Ferrule terminal and 0.5~16sqmm spade terminal
Air Pressure:0.5-0.6MPa
Crimping Force:1.3T

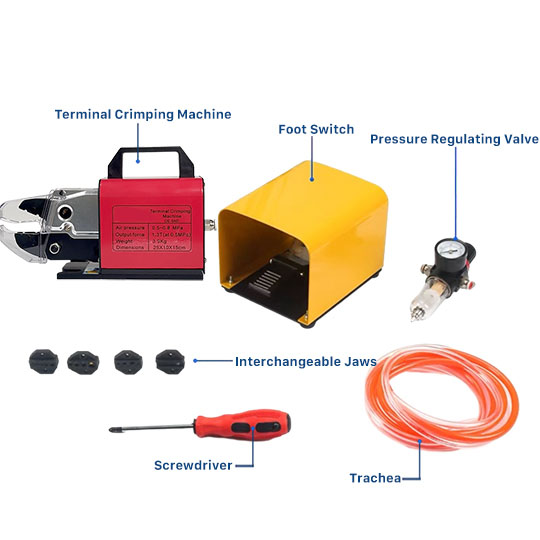

Operate:foot switch

Specifications

Feature

Download

Metric

Imperial

Model MN-5ND

Crimping Size 0.5~6sqmm Ferrule terminal and 0.5~16sqmm spade terminal

Air Pressure 0.5-0.6MPa

Crimping Force 1.3T

Operate foot switch

Weight 5 kg

Dimension 230*187*100mm

1. the crimpingspeed is 10 times of the manual crimping tools, it has a greater cost advantage, andit is applicable for the international standard welding or tubular electrical connectiontermination crimping,

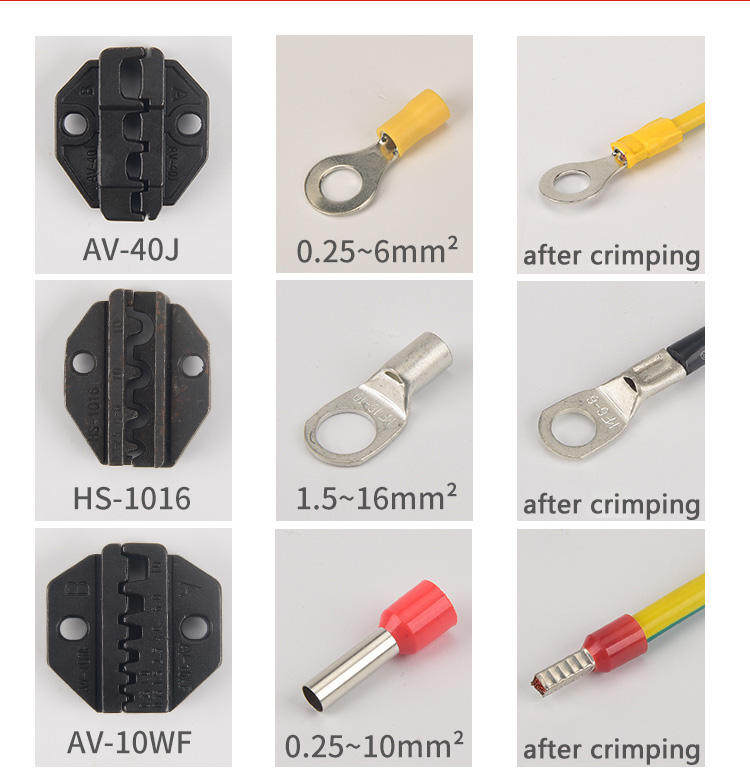

2. The materials of the precision die sets is made of high qualityalloy steel by the special heat treatment process, quick crimping, reliable firmness aftercrimping.

3.Ferrule insertion at the side of the toolSelf-adjusting adaptation to the desired end sleeve (ferrule) size, no wrong crimpscaused by using the wrong die.
