Shield Brushing & Twisting
The shielding layer brushing and twisting machine is an automated device used for shielding layer processing in cable manufacturing. Its main functions include: Brushing: Removing impurities or residual insulation from the surface of the shielding layer Twisting: Pre-tightening the shielding layer (such as copper wire braided layer)
Home Porducts Shield Brushing & Twisting
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

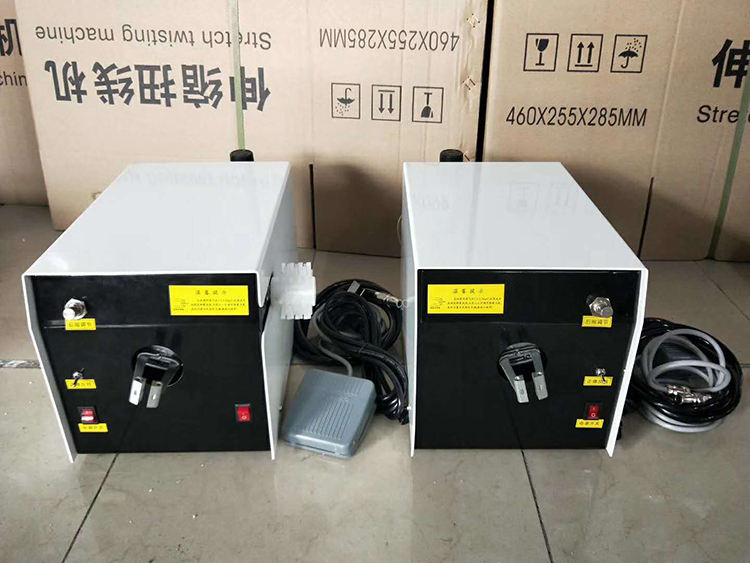

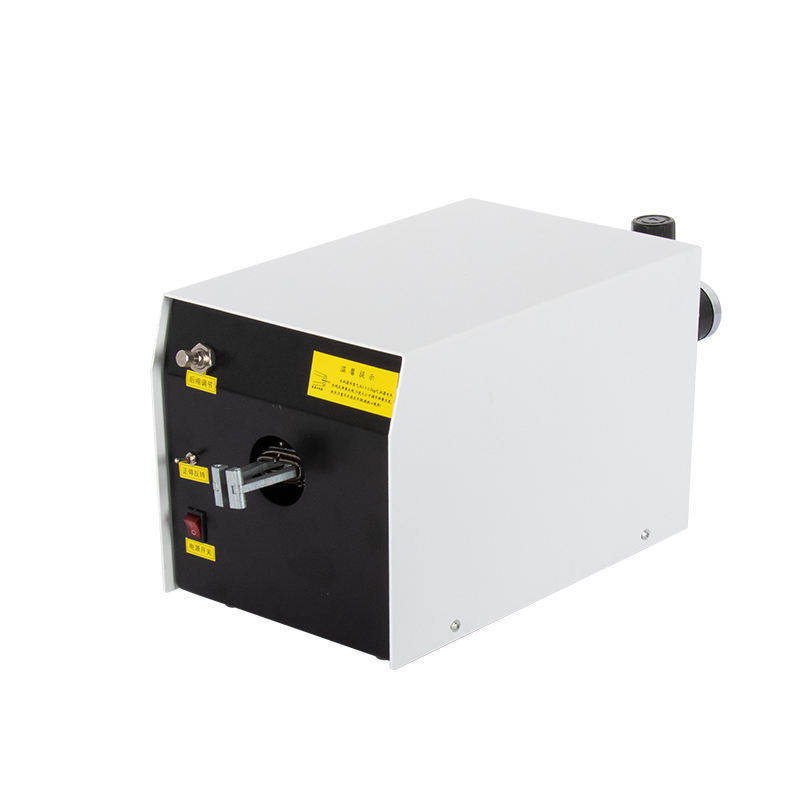

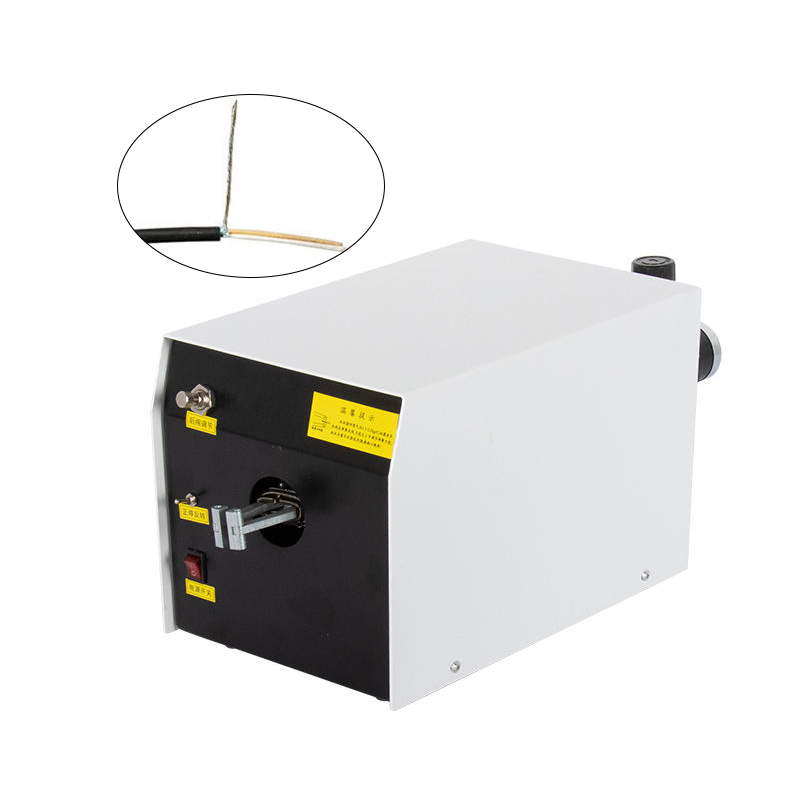

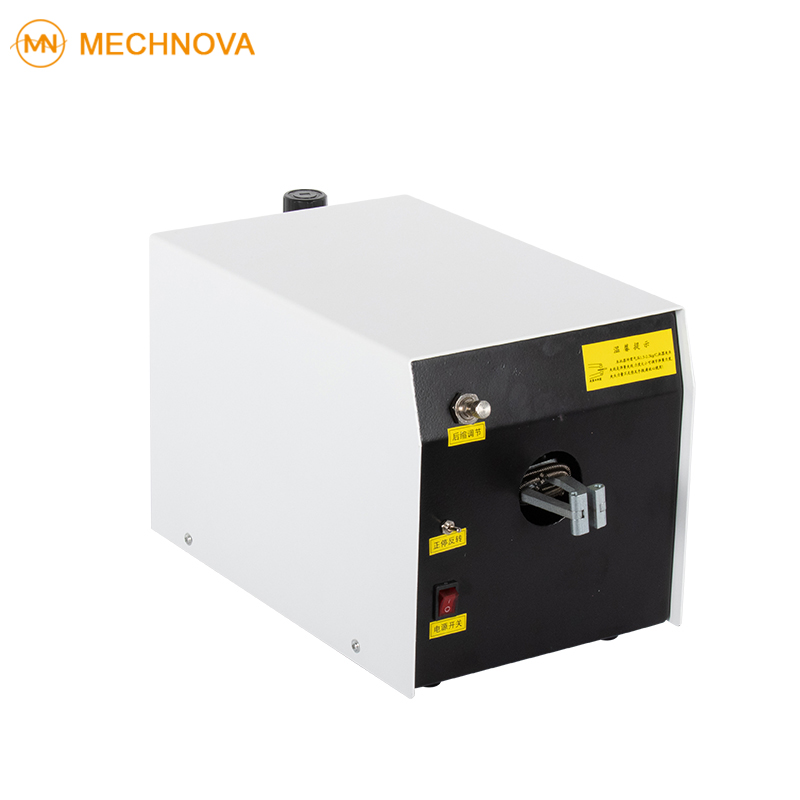

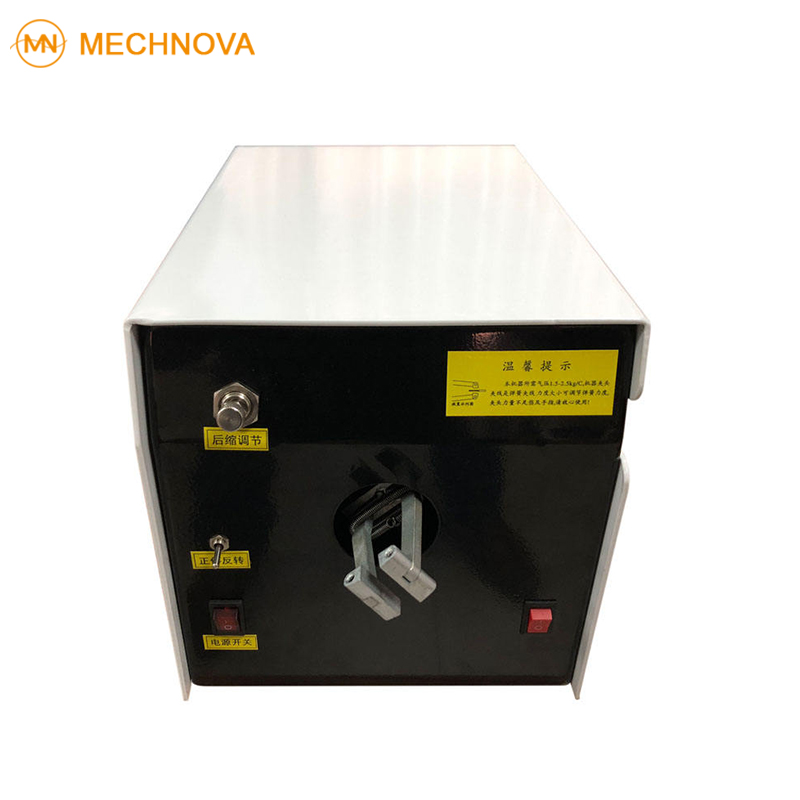

Twisting machine
Model:MN-T6050
ENQUIRE NOW!
1. Turn on the power, air supply
2. Open the air source, twist the cable clamp automatically open
3. Concentrate the product with the stripped skin, put it into the automatic gripper, activate the foot switch, automatically clamp the wire clamp, twist the thread head, automatically The wire drawing device automatically retreats, and the manual only needs to hold the wire, that is, the wire twisting action is completed, and then the foot switch can be released.
4. Each time the foot switch is activated, pause for 2-3 seconds, the twisted wire head stops rotating, the twisted wire clamp is opened, and the wire can be repeatedly operated.

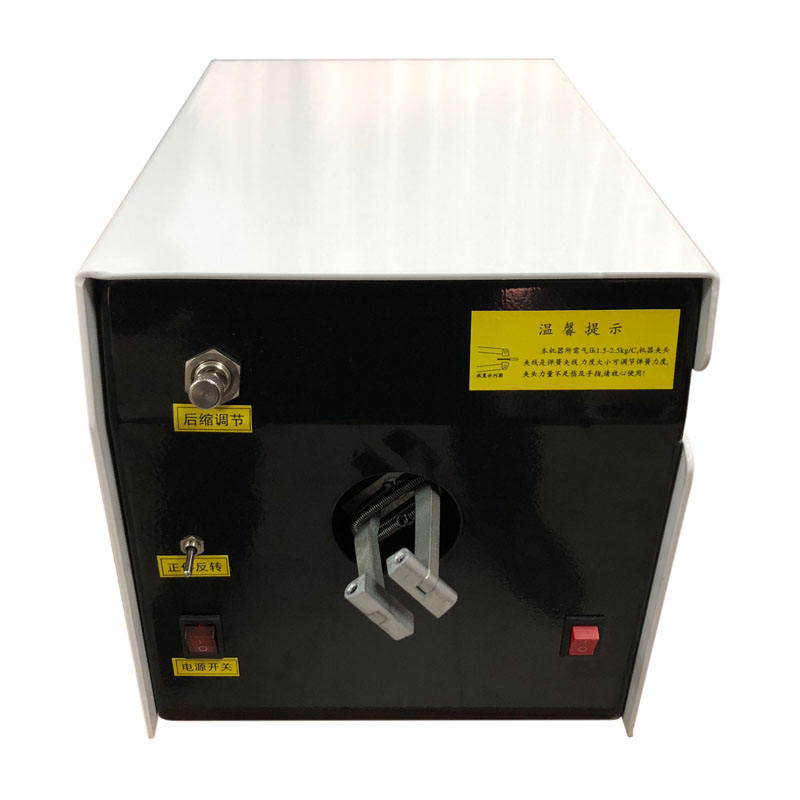

5. The automatic cable pullback speed can be controlled by the upper right corner switch of the machine.
Specifications
Video
Download
ModelMN-T6050
Working voltageAC220V/50HZ
Air pressure5-7kg/Cm
Motor power60W
Twisted wire length5-60mm
Weight16KG

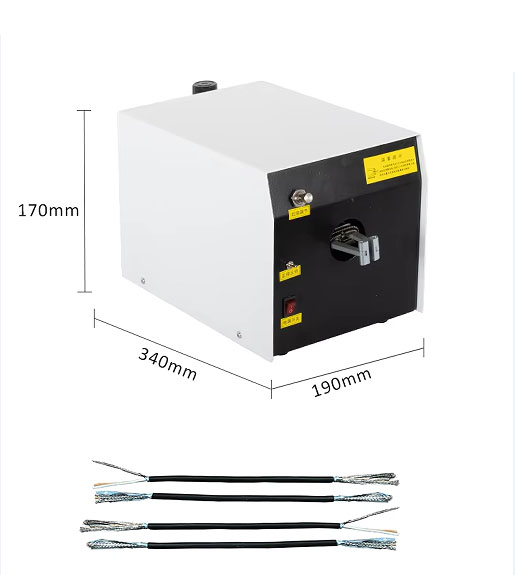

Dimensions380*200*190mm
Twisting length5-60mm
Warrantyone year(consumer components are not included)
Feature

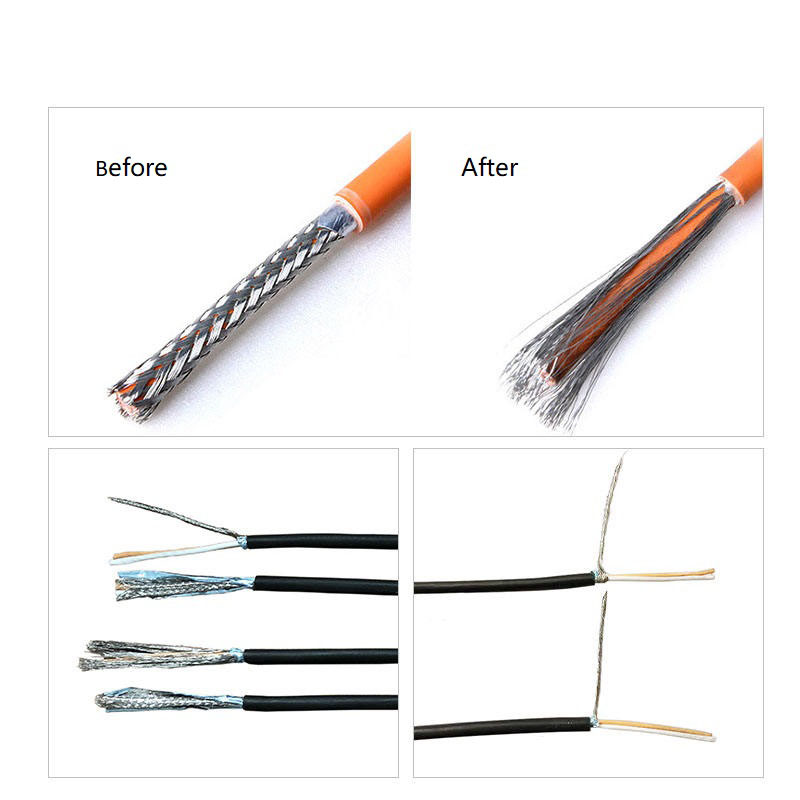

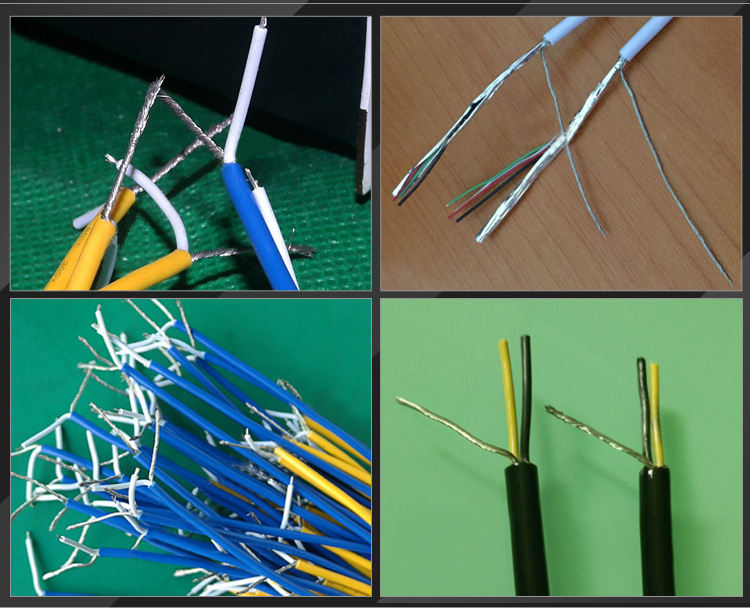

The machine is easy to use and simple to operate. It can twist various ground wires, braided wire and isolation wires, completely replacing manual work.

1. The automatic gripper adopts an exposed design, so that the loose copper wire is also easy to place.

2. Elastic clamping, no need to make adjustment when the wire diameter is different.

3. This model is an upgraded version of the gas-electric twisting machine.

4. New automatic cable pulling device, easy to operate, smooth twisting line, more stable quality, especially for novice operations can adapt quickly.
