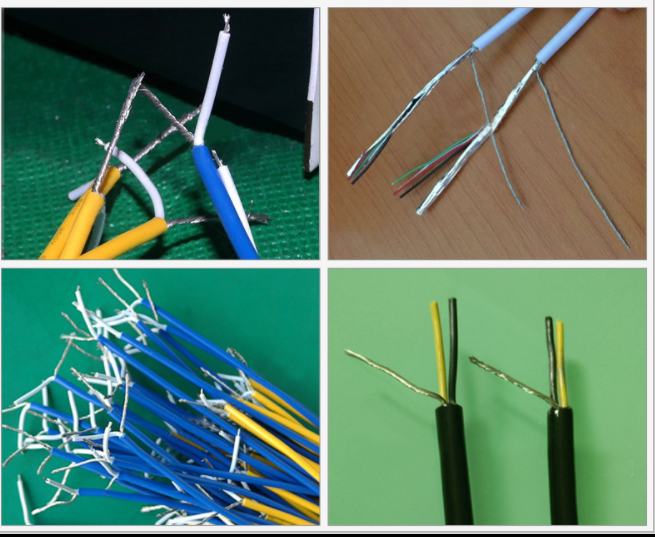

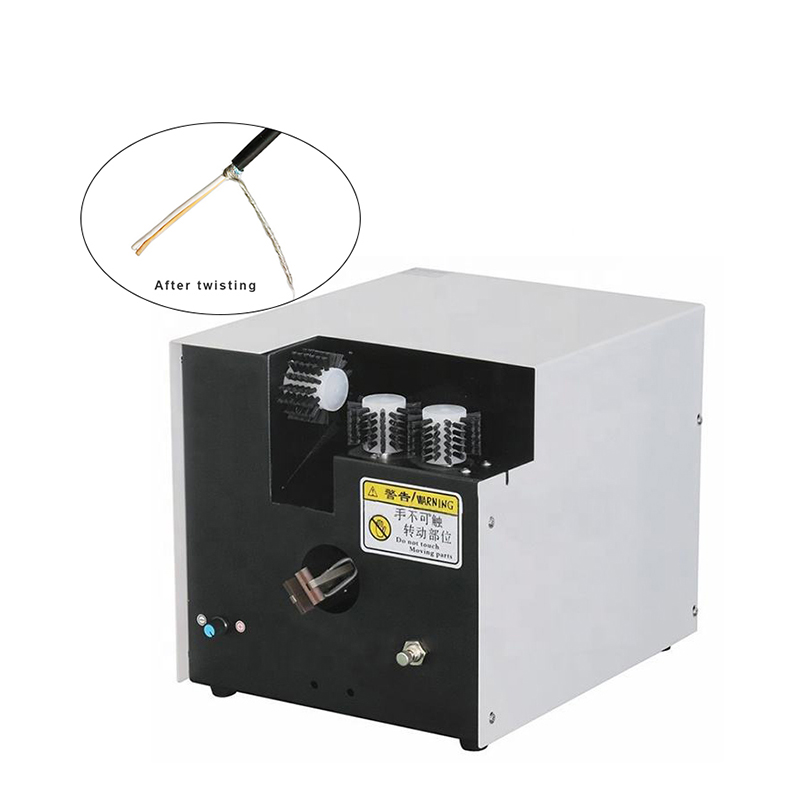

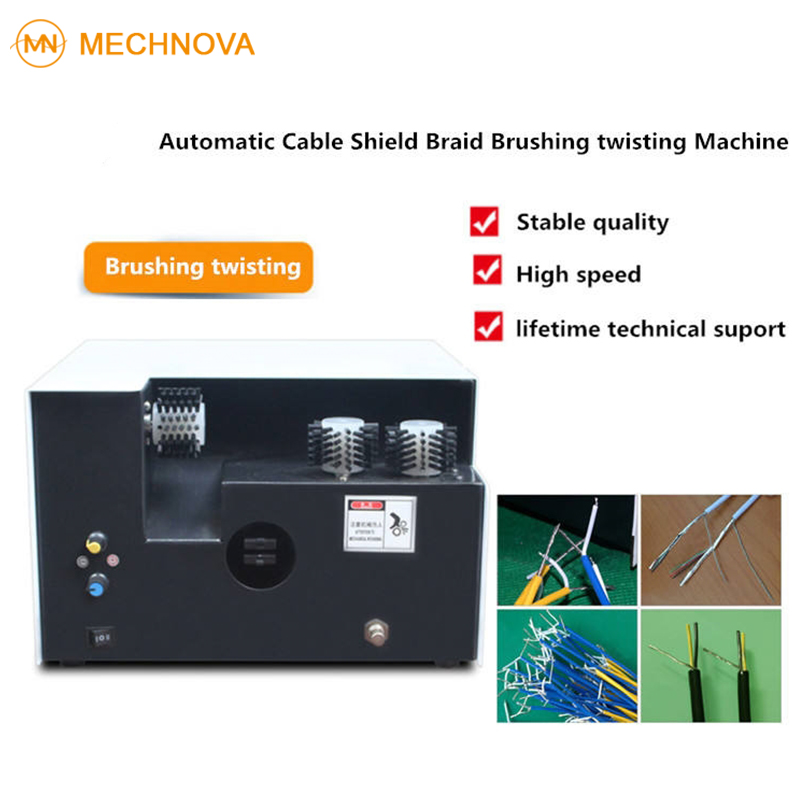

2-in-1 One-Cycle Brushing Twisting Operation:Combines braid opening brushing and strand twisting in one single controllable cycle. It efficiently separates compressed braid strands and consolidates loose strands into tidy drain wire tails, solving the inconsistency and low-efficiency pain points of traditional separate manual processing.

Full Adjustable Working Parameters:Supports independent adjustment of twist turns, rotation speed, and forward/reverse rotation direction. It perfectly matches S-lay and Z-lay braid cables with different braid density and strand quantities, avoiding strand breakage and ensuring tight, unravelling twisted tails without tool replacement.

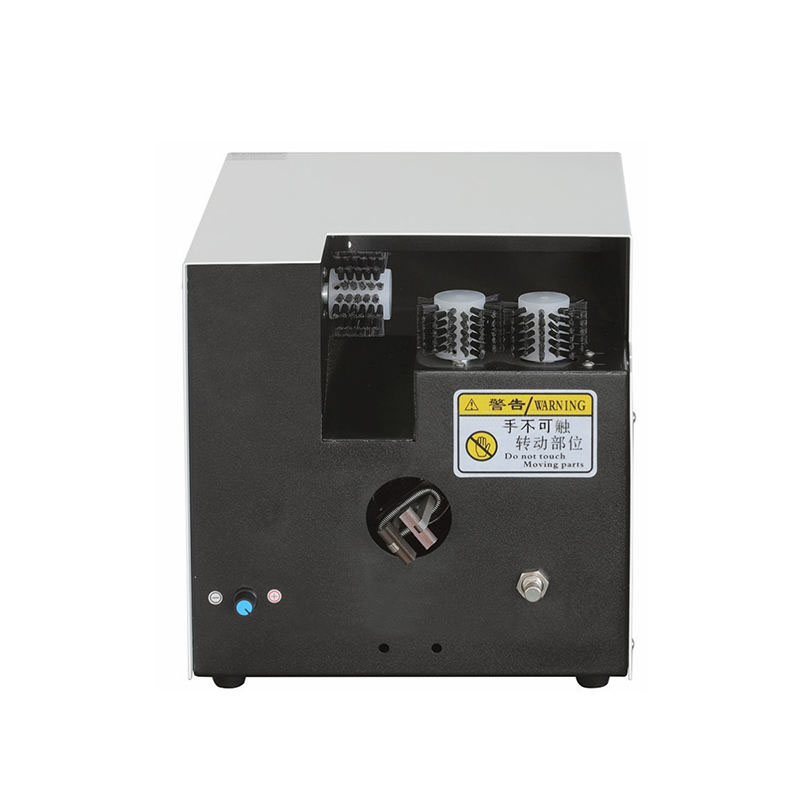

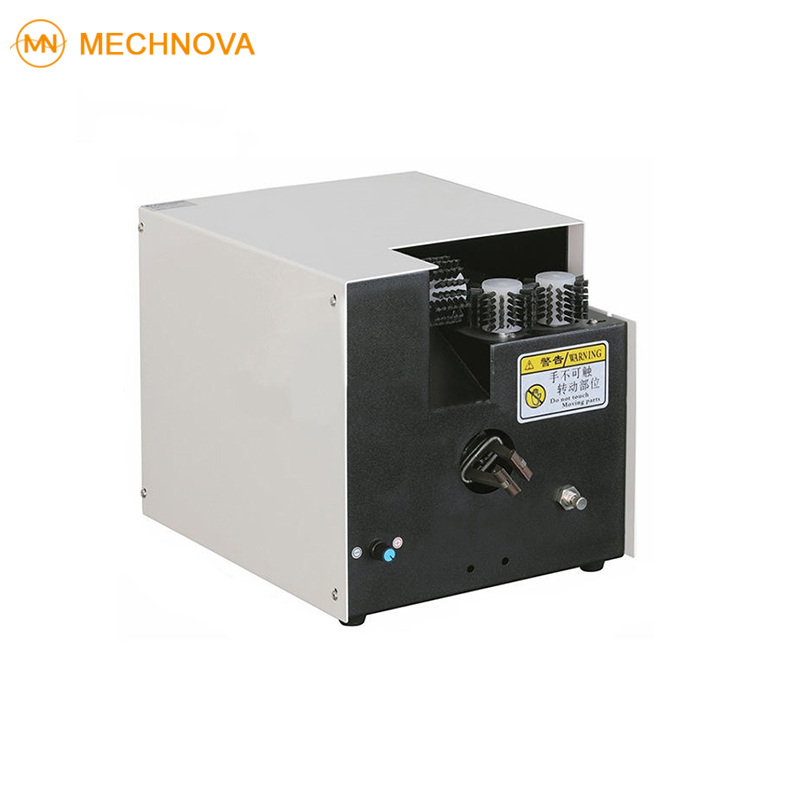

Compact Bench-Top Safe DC24V Design:Lightweight 12kg body with mini 320×310×210mm footprint saves workstation space. Adopts safe DC 24V power supply with low 40W power consumption, no complex mains wiring required, easy to integrate with existing stripping and crimping workstation lines.

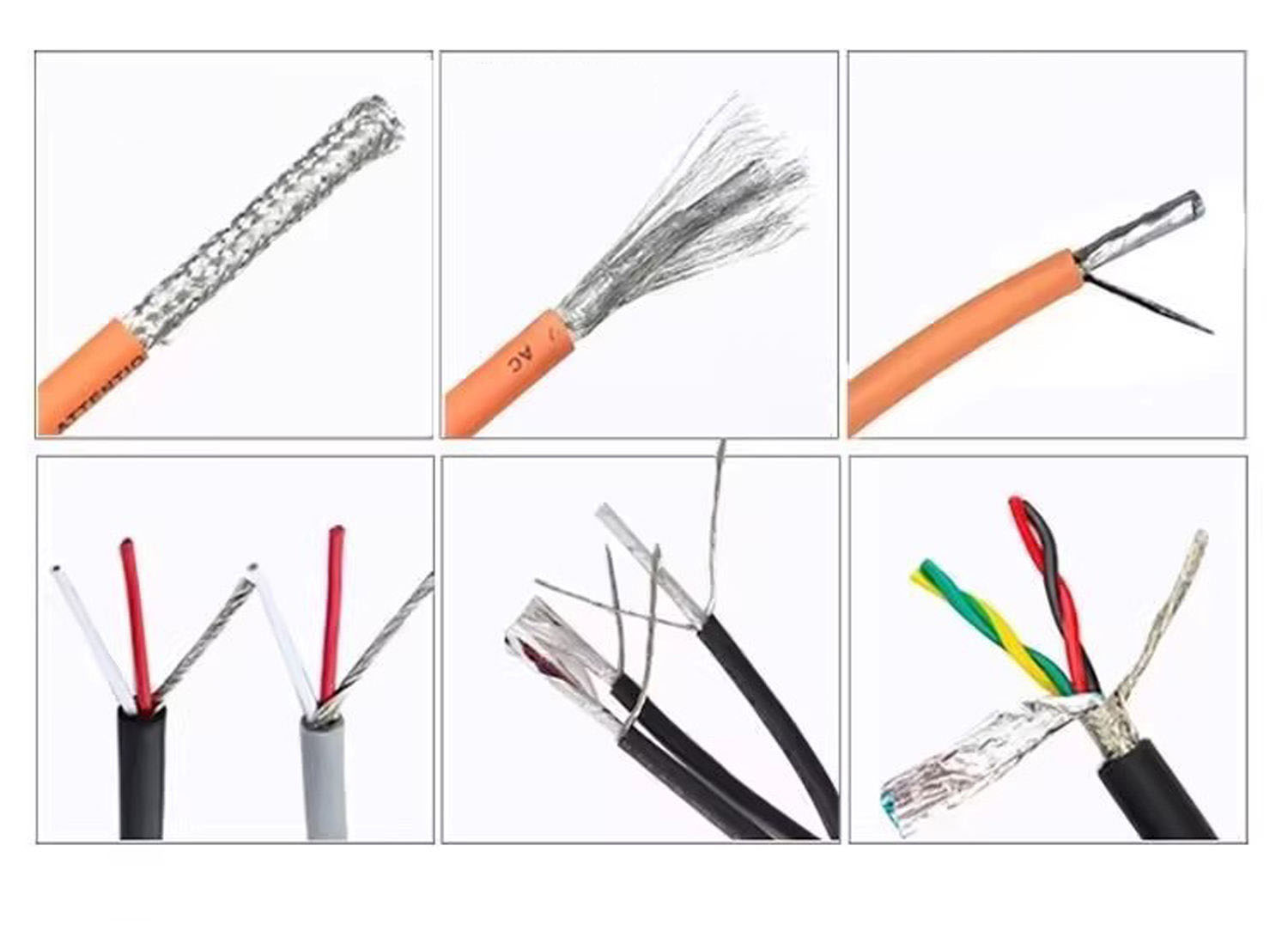

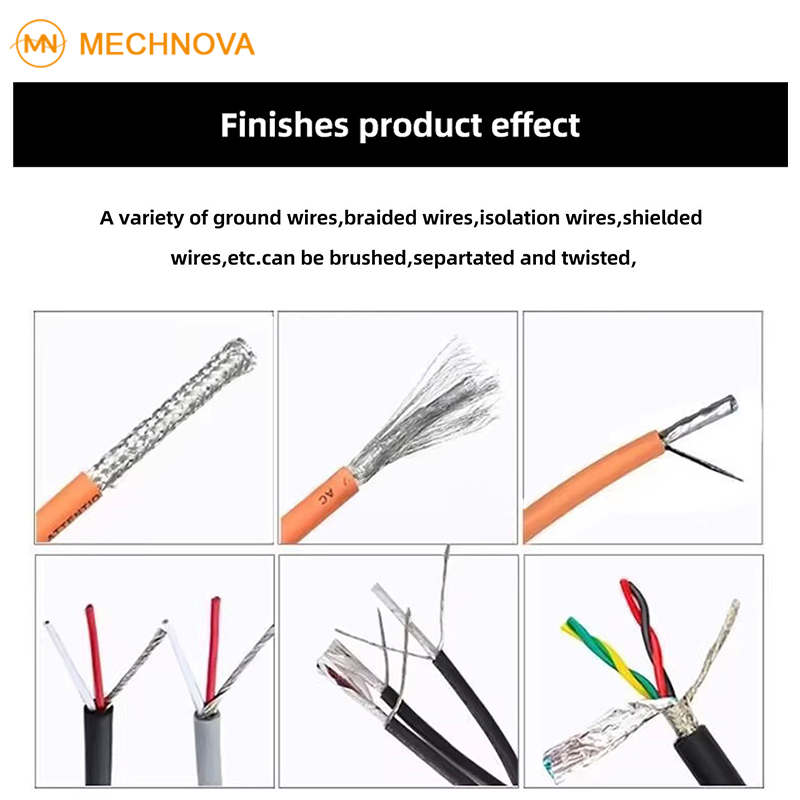

Wide Processing Specification Coverage:Handles shielded cables with outer diameter up to 8mm, with adjustable drain wire twist length of 10mm-50mm. Covers mainstream termination tail size requirements of automotive, industrial and aerospace connector backshell standards.

High-Precision Repeatable Termination Quality:Standardized automated operation replaces manual picking and twisting, delivering consistent braid geometry and stable grounding performance. Effectively reduces human errors and improves product pass rate for high-value precision harness projects.

Multi-Industry Standard Compatibility:Fits strict termination specifications for automotive ADAS/CAN/LIN harnesses, industrial servo/instrument/encoder cables, and aerospace MIL-DTL-38999 ARINC standard shielded wires, meeting high-end manufacturing quality requirements.
