Shield Brushing & Twisting
The shielding layer brushing and twisting machine is an automated device used for shielding layer processing in cable manufacturing. Its main functions include: Brushing: Removing impurities or residual insulation from the surface of the shielding layer Twisting: Pre-tightening the shielding layer (such as copper wire braided layer)
Home Porducts Shield Brushing & Twisting
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

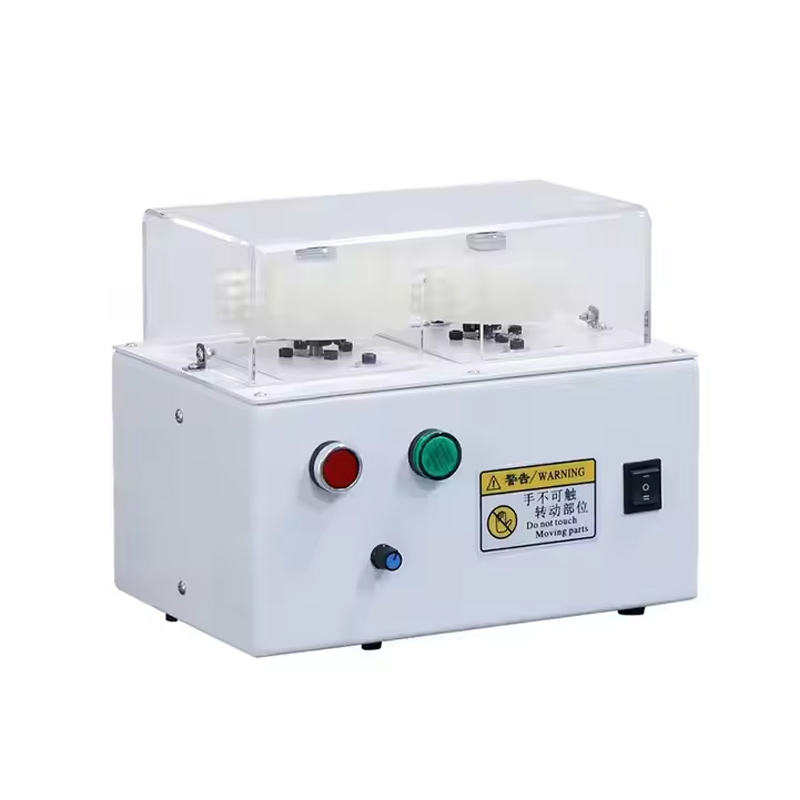

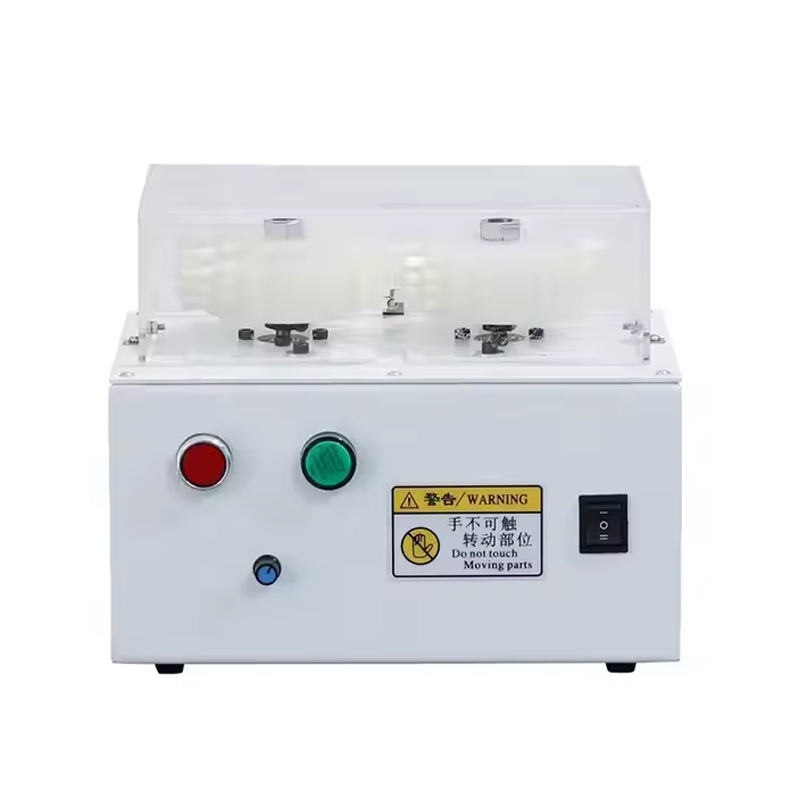

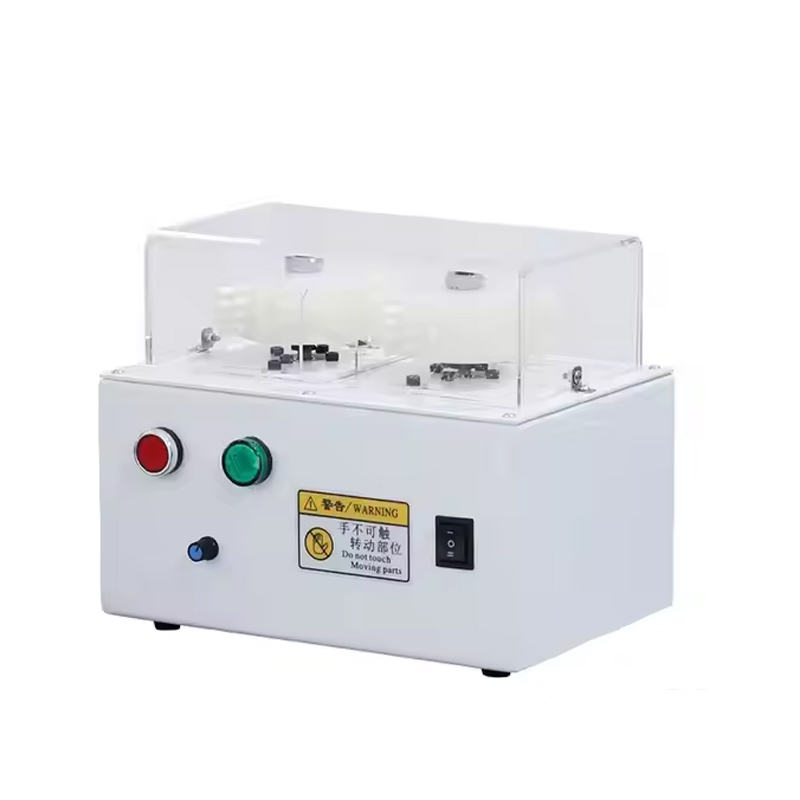

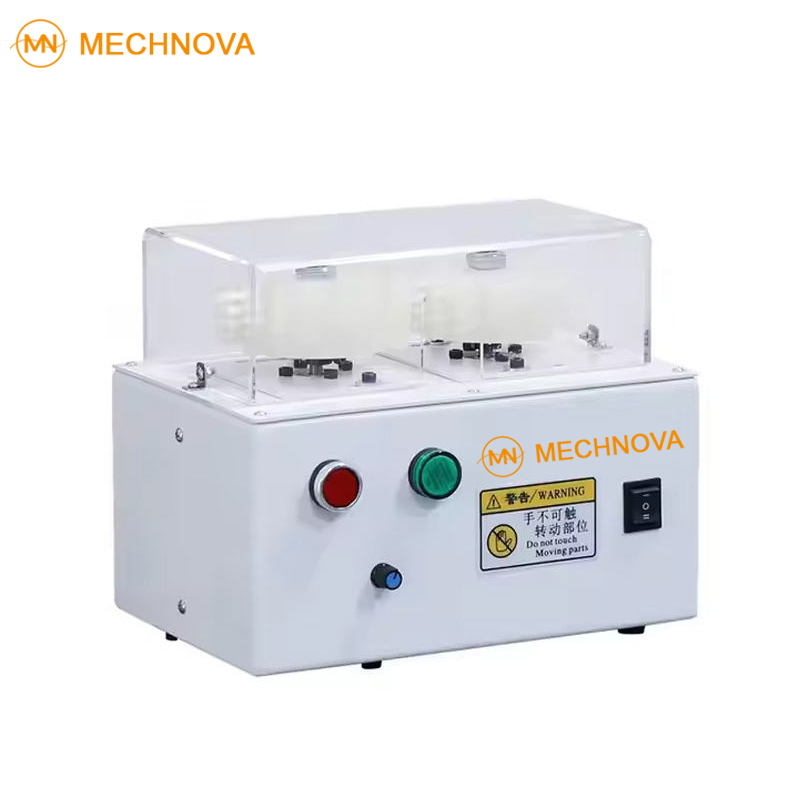

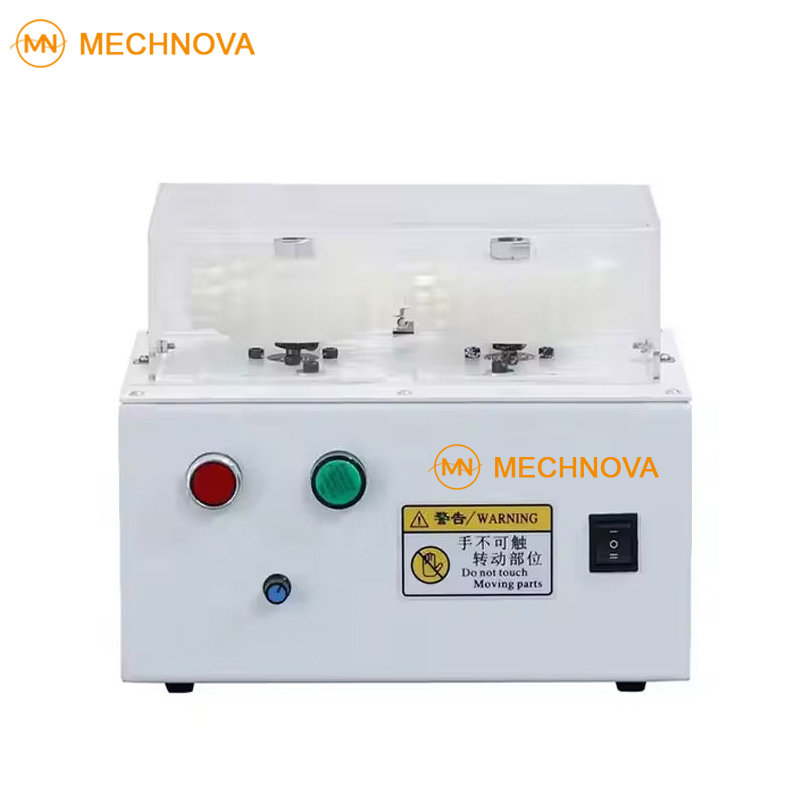

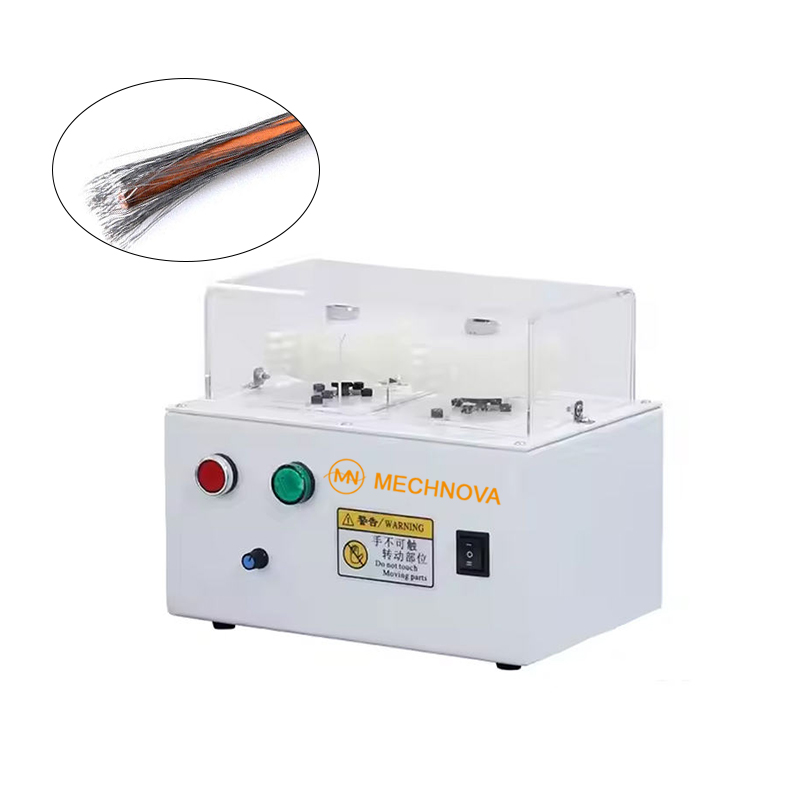

Wire brushing machine
Model:MN-T6060
ENQUIRE NOW!

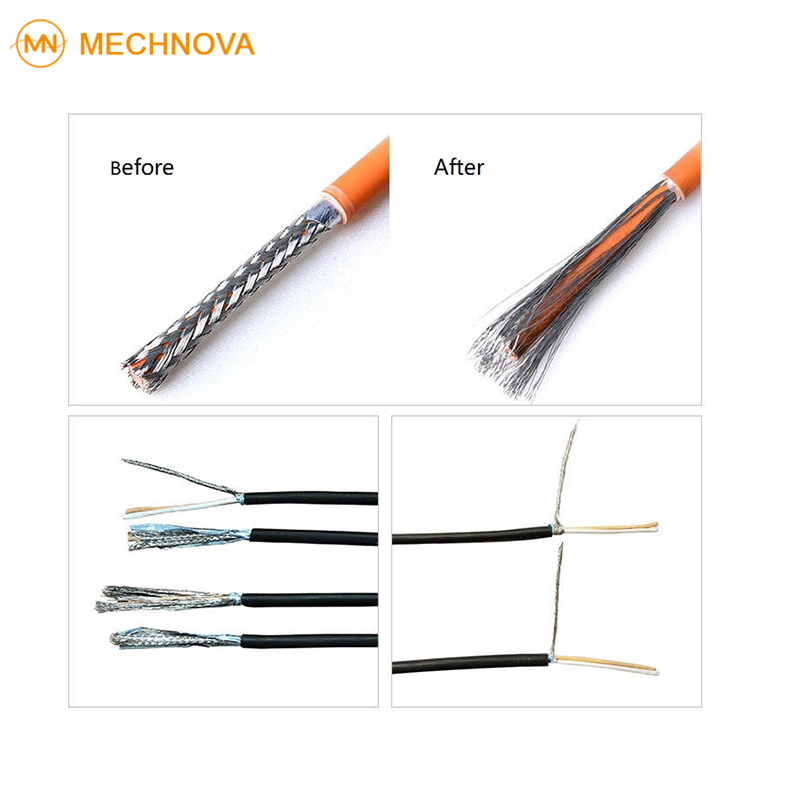

Various shielded wires and shielding nets (including winding and braiding) can be brushed smoothly.

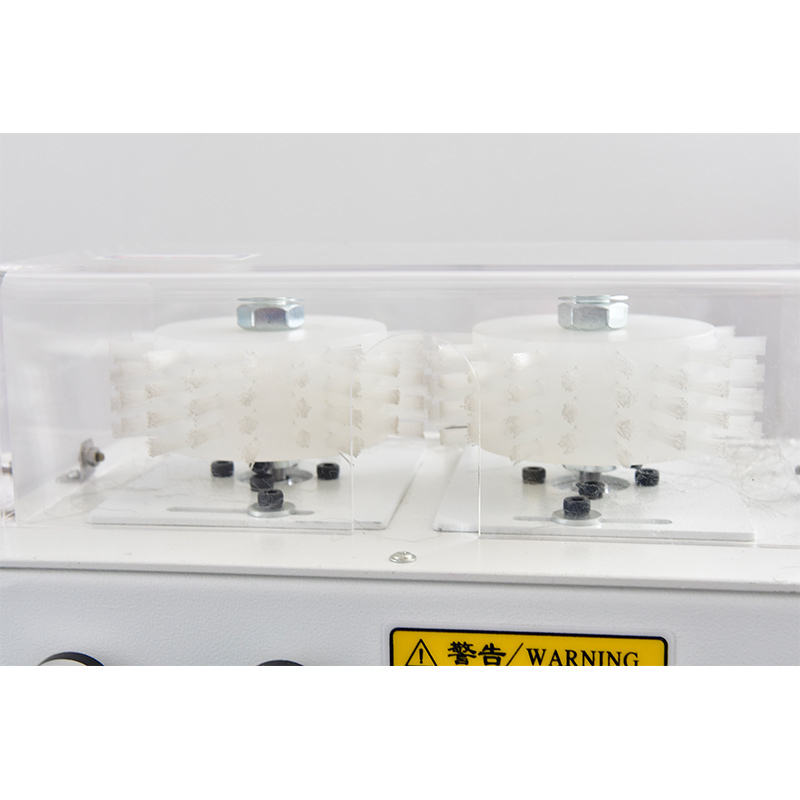

Later processing, the direction and speed are adjustable, the performance is stable, the brush wire can beadiusted for different sizes of wire.
Specifications
Video
Download
ModelMN-T6060

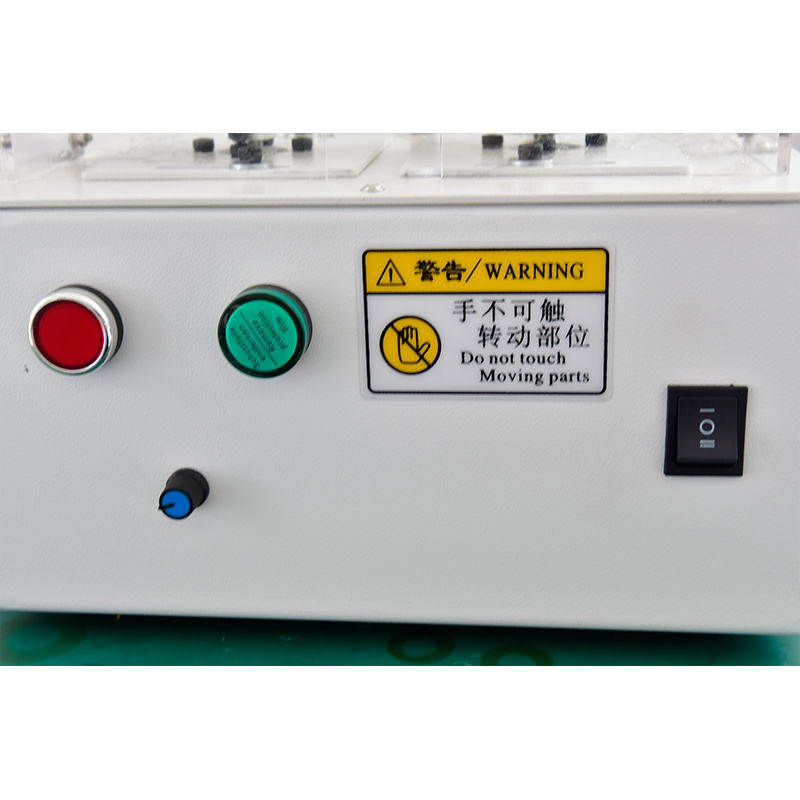

FunctionBraided metal shielding, two-way rotation, adjustable brush spacing, safety cover
Brushing speed0 - 6000 RPM
Brushing length5 - 80 mm
Cable diameter0.1 - 25 mm
Rated power100 W
Power supplyAC 220 V ± 10%, 50 / 60 Hz [110V on request]
DimensionsL 320 x W 220 x H 260 mm
Weight12 KG
CE-ConformityComplies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Feature
