High-Speed Automatic Multi-core Wire Stripping and Cutting Machine for Sheath Inner Cores Cutting Stripping Electrical Cables
Model:MN-S110HYJ
ENQUIRE NOW!

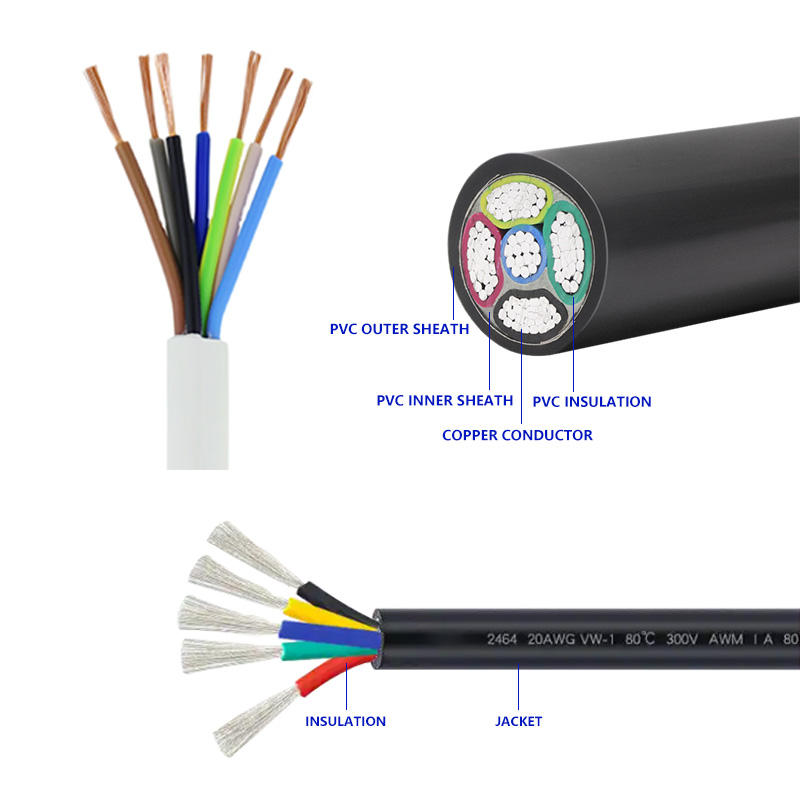

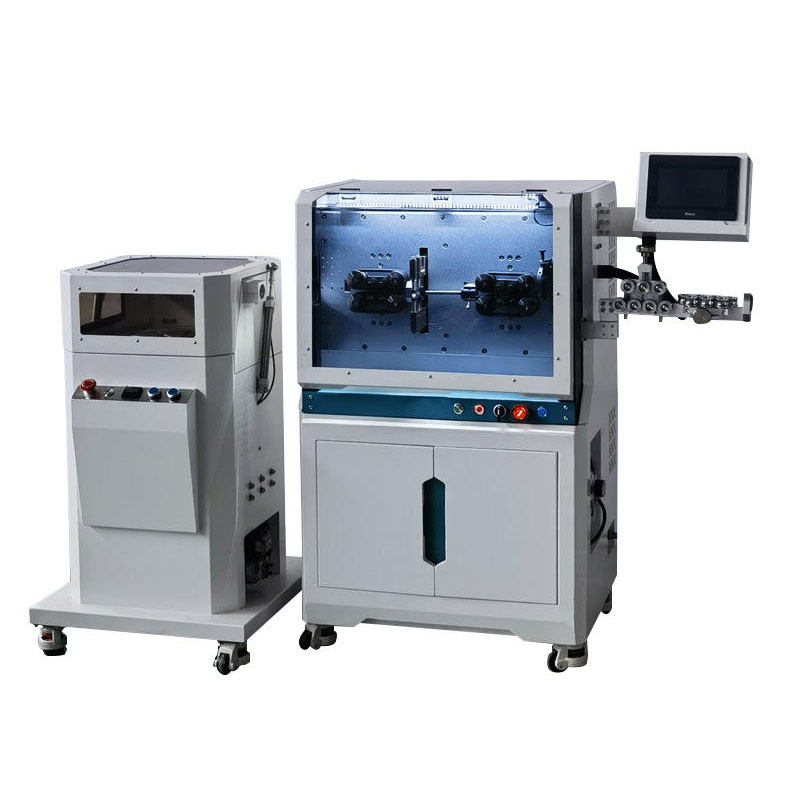

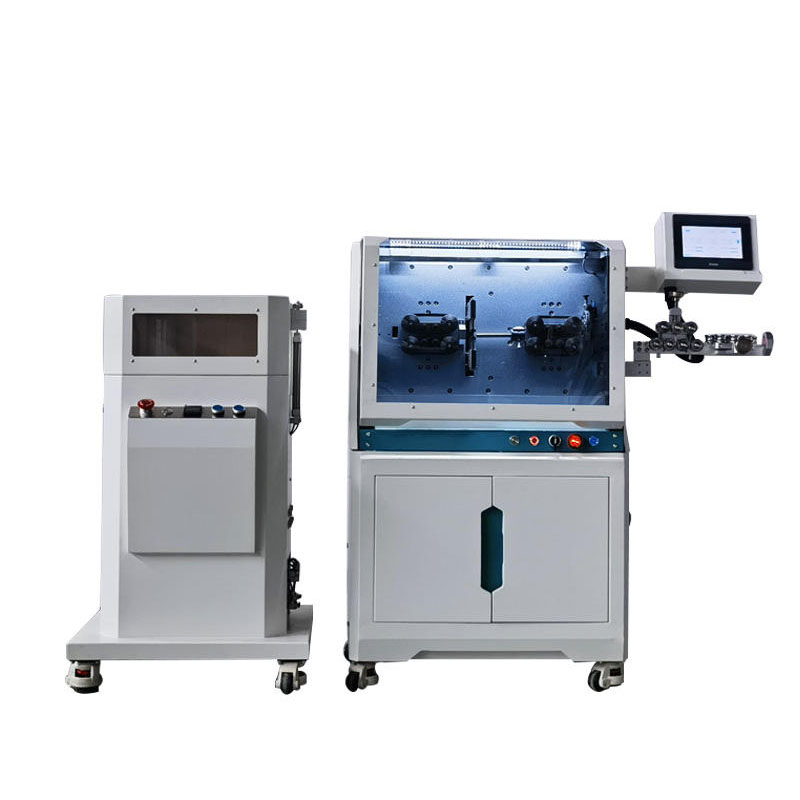

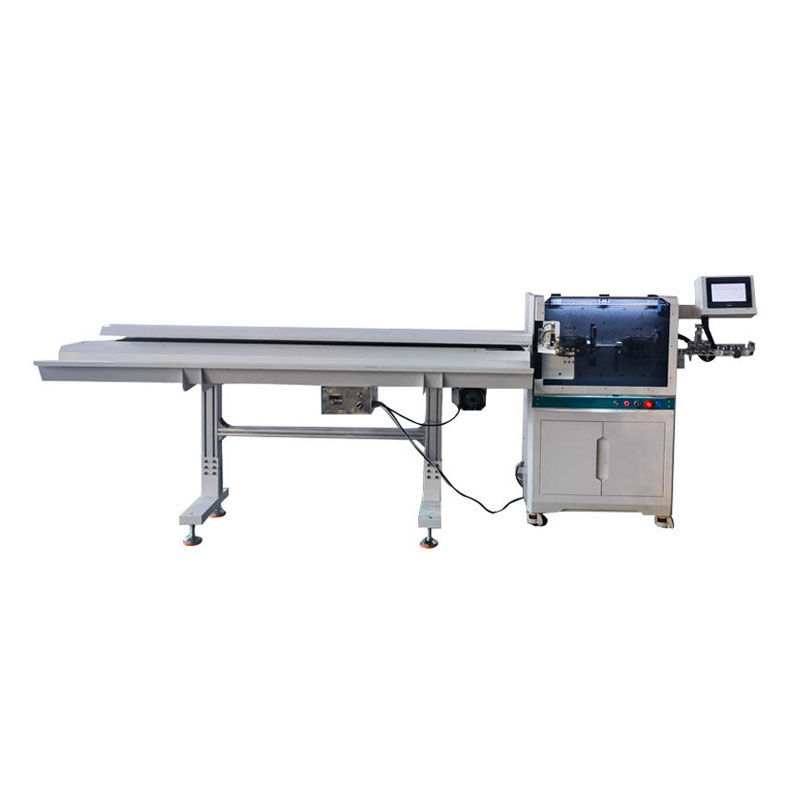

MN-S110HYJ is Floor model automatic cutting and stripping machine with manipulator for sheathed cable.Suitable for stripping 1-30mm²or outer diameter less 14MM sheathed cable. It Can strip outer jacket and inner cores at the same time, or turn off the inner cores stripping function to process the 30mm² the single wire.
Specifications
Video
Download

Model

MN-S110HYJ

Conductor Cross-Section

1-30mm² （Or outer diameter less 14MM sheathed cable )

Cutting Length

1-99999mm

Cutting Length Tolerances

≤(0.002*L) mm

Jacket Stripping Length

Head 10-120mm; Tail 10-240mm

Inner Core Stripping Length

Head 1-50mm; Tail 1-50mm

Conduit Diameter

Φ16mm

Production Rate

Single wire :2300pcs/h
Sheath wire :800pcs/h(base on wire and cutting length)

Display Screen

7 inch touch screen

Drive Method

16 wheels drive

Wire Feed Method

Belt feeding wire, no indentation on cable

Feature

* Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder) * Belt feeding wires, no embossing and scratches.

*Fully automatic cutting and peeling wires and cables .

* Being able to stripping outer skin and inner core skin of multi-core jacketcables simultaneously.

* Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm .

* Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240MM.
