| Madel | MN-S110H | MN-S110 |
| Conductor cross-section | 0.75-30mm² | |

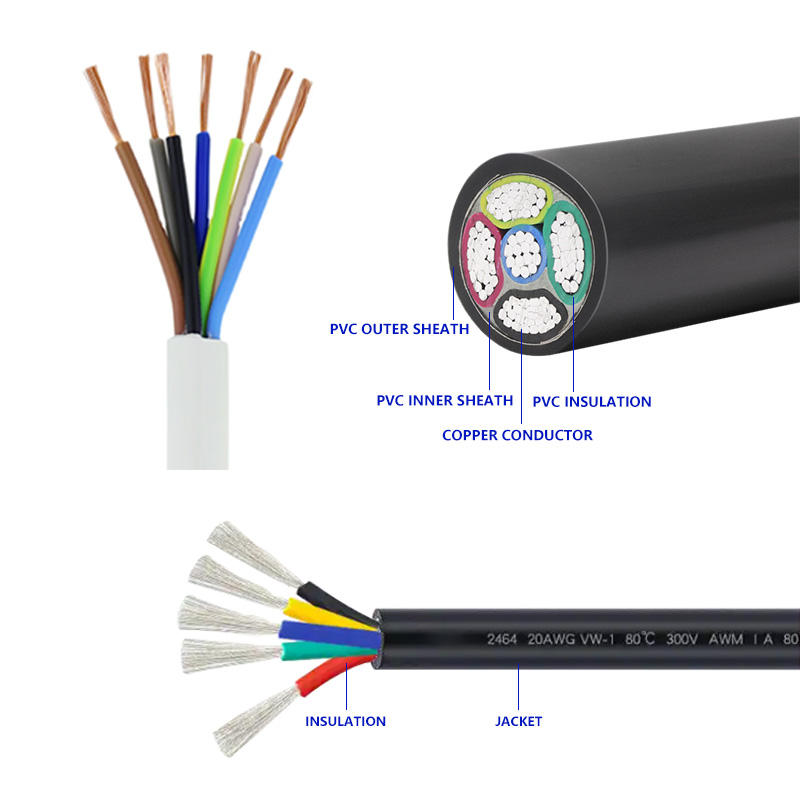

| Single core cable, Multi-conductor cable, Sheathed cable PVC Cable cable etc. | ||
| Cable | Single core cable, Multi-conductor cable, Sheathed cable PVC cable etc. | |
| Core wire stripping | 2-10 cores | N/A |
| Cutting length | 1-999,999.9mm | |
| Cutting length tolerance | <0.002*L(L=cutting length) | |
| Stripping length (side l) | Cable jacket -Full strip:10-200mm -Half strip:1-800mm Core wire -Full strip:1-50mm -Half strip:5-200mm | Full strip:10-200mm Half strip:1-800mm |
| Maximum guide tube diameter | 18 mm | |
| Productivity | 2000 pes./h 900 pcs/h(multi-conductor cable) | 2000pes./h |
| Blade material | Imported high speed steel | |

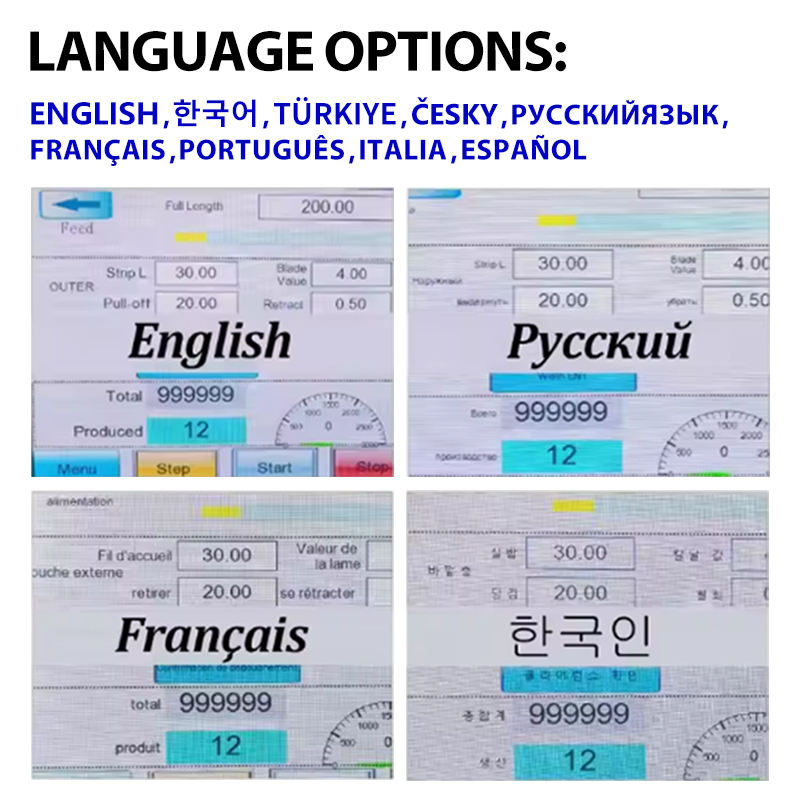

| Display made | 7-inch touch screen | |

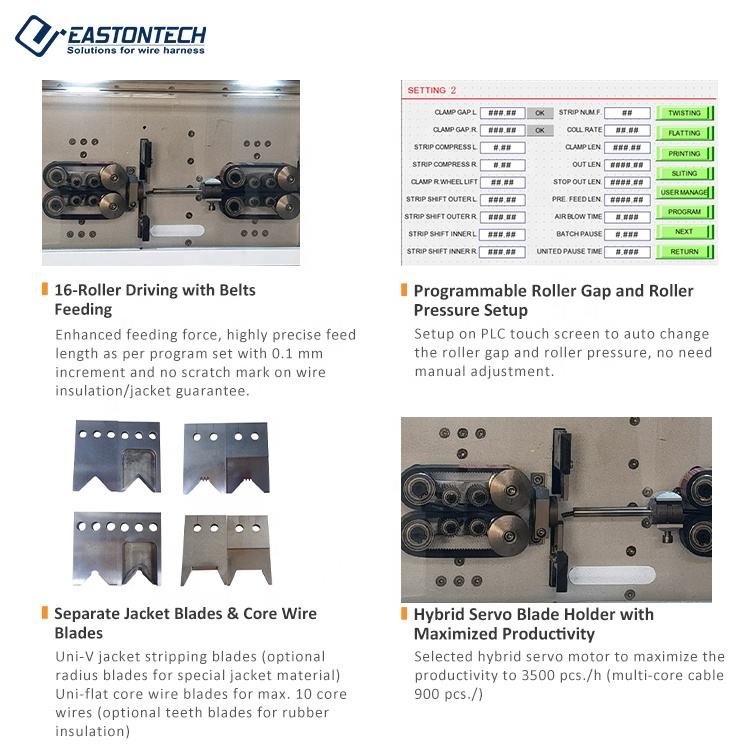

| Driving mode | Servo motor cutting with 16 roller driving system | |
| Feeding mode | Belts feeding with pressure stripping function. | |
| Roller Gap | Digital program control | |
| Power supply | 110,220V(50-60 Hz) | |
| Power | 1.1kW | |
| Compressed air connection | 0.5-0.7 MPa | |
| Weight | 95kg | |
| Dimension | 680*605*520 mm | |
| Remarks | Custom options by sending samples | |

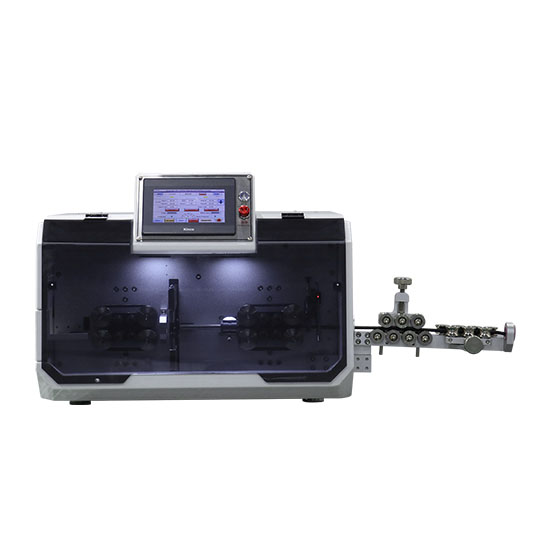

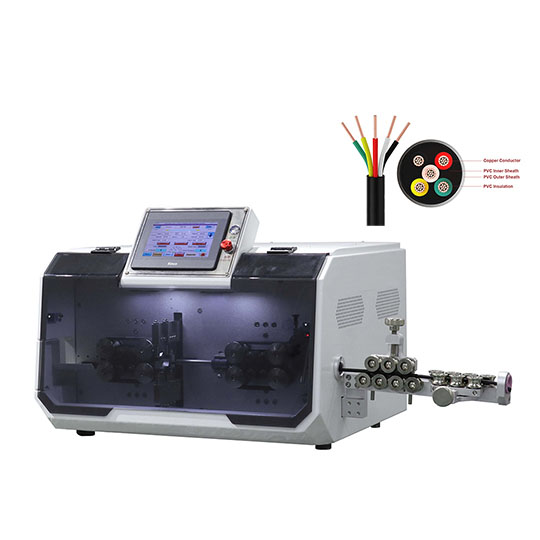

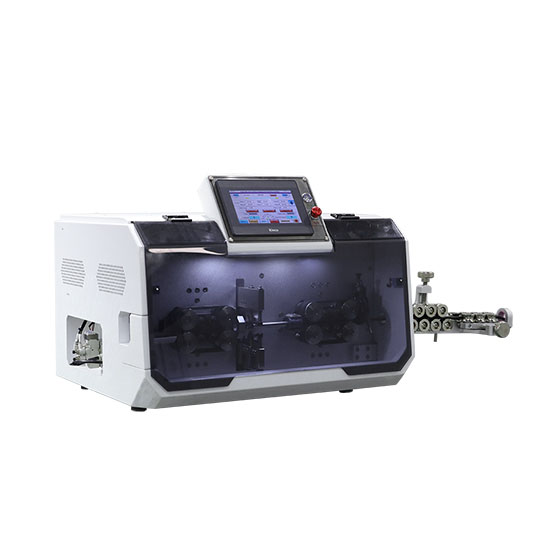

● The MN-S110H is a versatile cut and strip machine for multi-core cables (max. 11 cores) and multi-stranded single wire up to 30 mm square.
● Powered by hybrid servo motor, the productivity is maximized to 600 pcs./h (400 pcs./h multi-core cable).
● Uni-V jacket stripping blades (optional radius blades for special jacket material).
● Uni-flat core wire blades for max. 11 core wires (optional teeth blades for rubber insulation).
● Enhanced feeding force, highly precise feed length as per program set with 0.1 mm increment and no scratch mark on wire insulation/jacket guarantee.

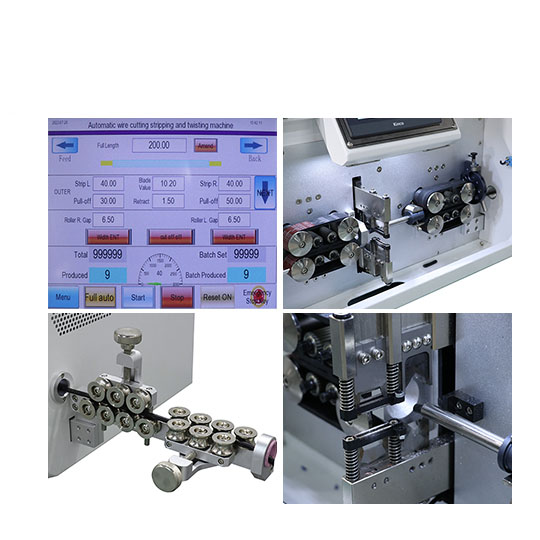

● The left and right roller set gap is freely set on PLC touch screen to auto change the roller gap and roller pressure, no need manual adjustment.
● Optional add-on: pre-feeder, middle strip (window strip) module, twist module, conveyor with stacker, coiler, ink-jet printer, industrial control system (ICS).
★Various Safety Guarantee
● Auto-stop function when safety guard is open.
● Auto-stop function when wire is used up.
● Emergency stop button to stop machine at once.
● Auto-shut off when the short circuit
occurs
● Intelligent alarm to report errors.
