Model | MN-X625 |
Cable type | Coaxial cable and single conductor wire |

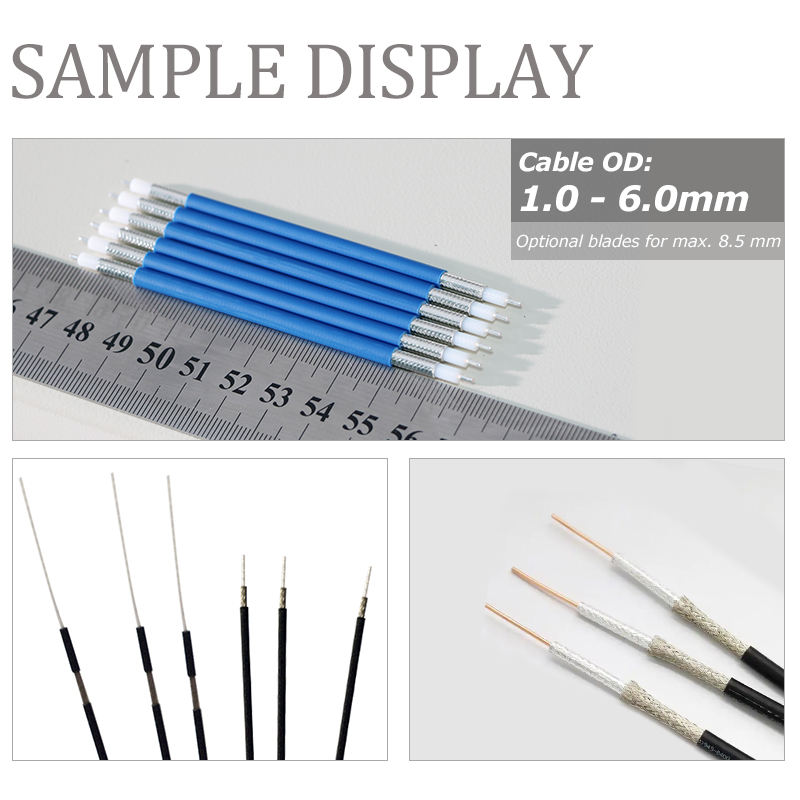

Cable OD | 1.0 - 6.0 mm (optional blades for max. 8.5 mm) |
Cutting length | 50 - 9999 mm |
Cutting depth increment | 0.01 mm |
Cutting tolerance | < 0.01 * L |
Stripping mode | Rotary blades incision + V blades pull-off |
Max. strip layers | 6 |
Stripping length (side I) | 0 - 45 mm |
Stripping length (side II) | 0 - 100 mm |
Stripping tolerance | < 0.15 mm |
Blades material | Imported tungsten steel and high speed steel |
Display mode | Touch screen (153 * 85 mm) |
Driving mode | By motor and ball screw |
Working temperature | -5 - 45 degree |
Memory capacity | 40 programs |
Productivity | 350 - 900 pcs./h |
Power supply | AC 110, 220 V (50/60 Hz) |
Power | 800 W |
Weight | 120 kg |
Dimension | 790 * 730 * 400 mm |

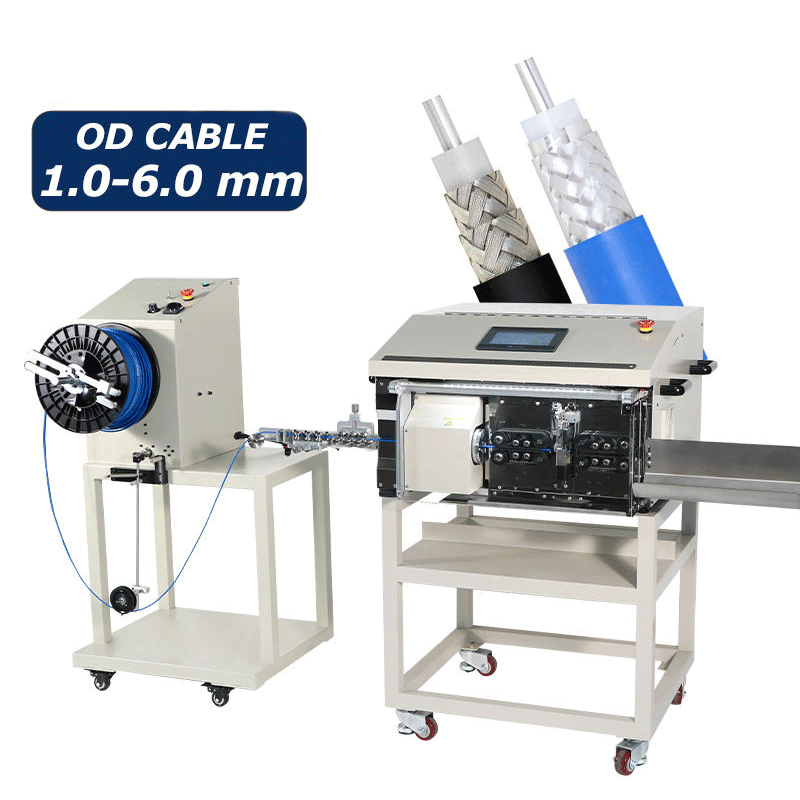

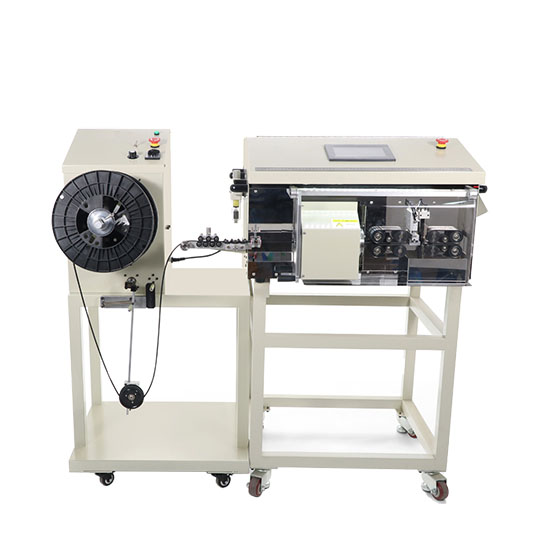

The model is a fully automatic coaxial wire stripping machine that can perform operations such as layered peeling, middle opening and cutting of coaxial cables with an outer diameter of 1.0-6.0mm.
It adopts the combined mode of rotating cutter head and V-shaped cutter head,
and all coaxial cables in the range can be processed without changing the blade.
The automatic coaxial wire stripping machine is fully programmable, can store 40 kinds of wire processing parameter programs, and the operation is simple and easy to learn
