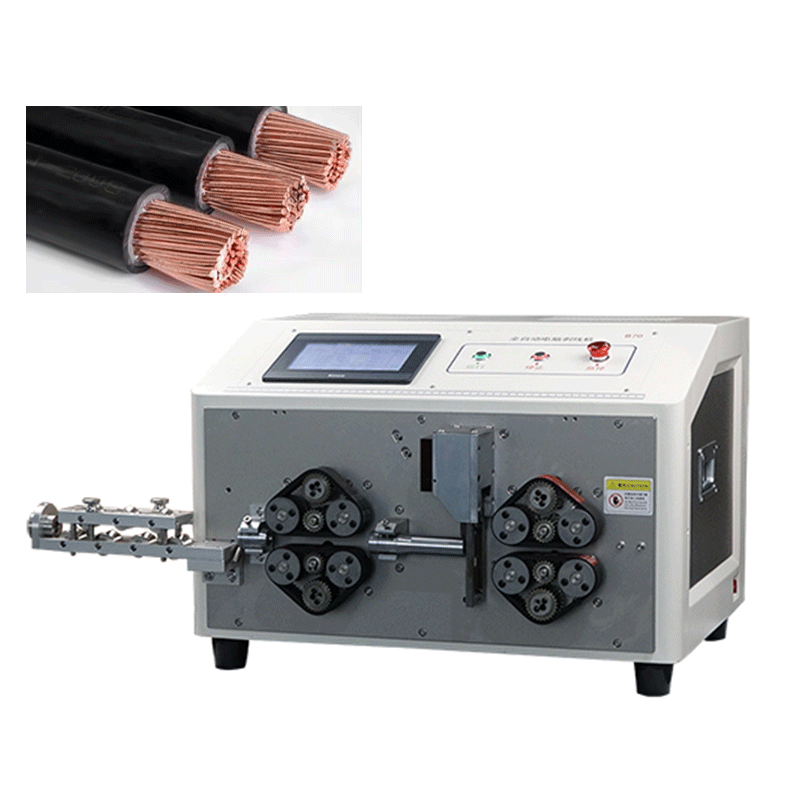

Multicore Pneumatic Large square Cable Wire Stripping Machine Electric Cable Cutting and Stripping Machine

Cut & Strip

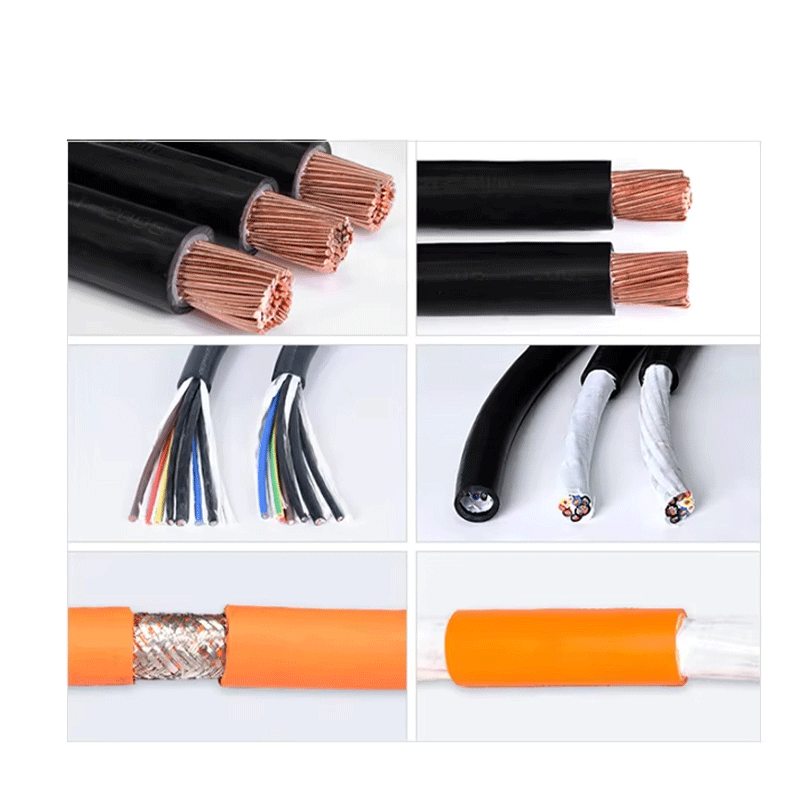

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

Wire Cutting & Stripping Machine(10-70mm2)
Model:MN-S370

ENQUIRE NOW!

Model:MN-S370
Wire feed: 16-rollers belt feeding
Wire range:10-70mm2 (OD10-20mm)
Tube diameter：10/12/14/16/18/20mm
Cutting length：0.1mm-99999.9mm
Stripping length：Stripping head:0.1-200mm Stripping tail: 0.1-70mm

Specifications

Feature

Download

Metric

Imperial

Model MN-S370

Wire feed 16-rollers belt feeding

Wire range 10-70mm2 (OD10-20mm)

Tube diameter 10/12/14/16/18/20mm

Cutting length 0.1mm-99999.9mm

Stripping length head:0.1-200mm tail: 0.1-70mm

Stripping accuracy Silent hybrid stepper motor 0.01mm

Intermediate strip Can be customized

Capacity 1200-2000 pcs / h

Blade material Imported tungsten steel / high speed steel

Power AC110V/220V 50/60HZ

Size 650mm*570mm*455mm

Weight 90 kg

Remark function Automatic entry / exit_ timing start_ jog adjustment

Air supply 0.5-0.8Mpa.

●This machine completes wire cutting and stripping operations for wire harnesses in industries such as new energy vehicles, power complete sets, and cable wires.

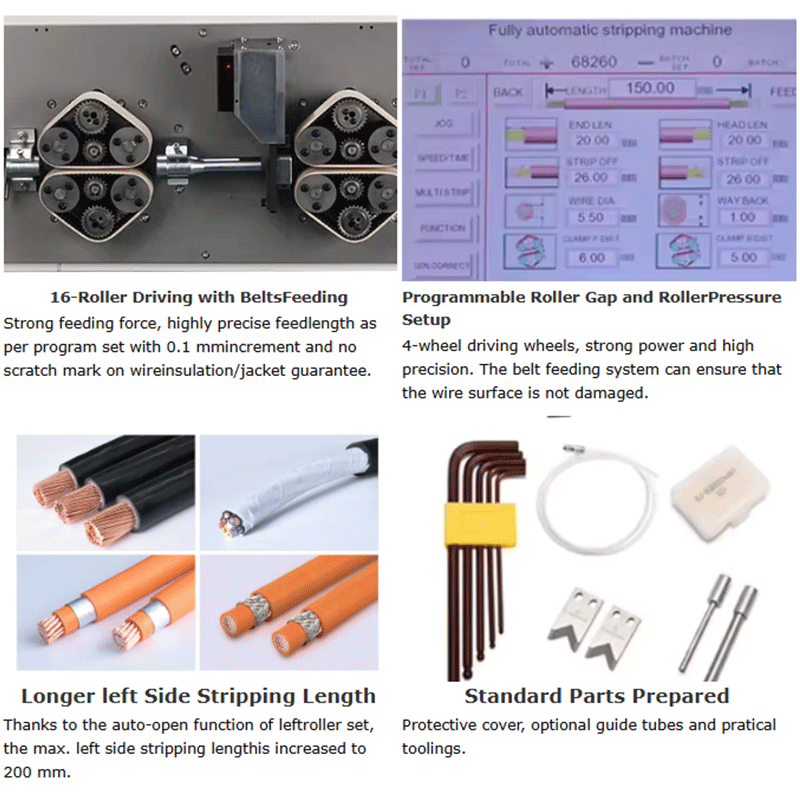

●The 16-rollers crawler type wire feeding is used to enhance the friction of the wire being transported, and there is no indentation on the surface of the wire, ensuring the accuracy of the cutting length and stripping.
●A two-way screw pressing wheel is used to accurately align the size of the wire with the center of the cutting edge, ensuring a smooth peeling opening without damaging the core wire.
●Full computer numerical control debugging, wire length, cutter depth, stripping length, wire compression.
●Full touch screen digital operation is completed, which is simple and easy to understand.
