| Model | MN-S315 |
| Voltage | AC110-220V 50/60HZ |
| Machine size | 470x465x350mm(L*W*H) |
| Machine weight | 31.5KG |
| Machine power | 680W |
| Power rating | 400W |
| Air pressure | 0.5-0.8Mpa |
| Wire range | 0.1-6.0mm²,AWG#30-AWG#12 |
| Cutting length | 0.01mm-99999.99mm |
| Stripping length | 0.01mm-30.00mm |
| Number of middle peeling steps | 16 segments (customizable) |
| Blade material | Tungsten steel |
| Wire stripping accuracy | ±0.01mm |
| Motor | Silent hybrid stepper motor |
| Output/hour | About 2000-4500pcs |
| Programs storage | 00~99 Sets |
| Accessibility | Automatic in/out line, timed start, inching adjustment |
| Display mode | 4.3 "color screen |

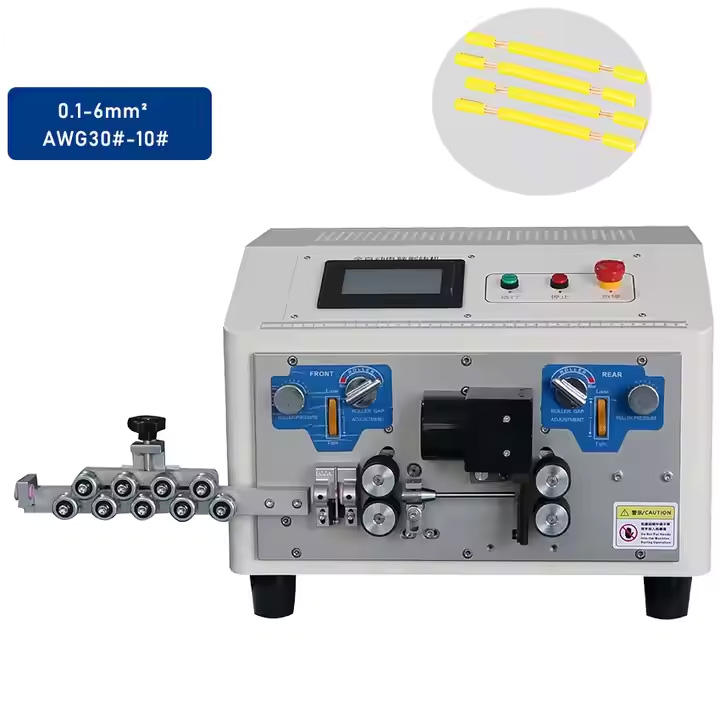

● The MN-S315 belongs to our upgrade model automatic wire cutting and stripping machine series. lt#39;s designed to meet high demanding wire processing.

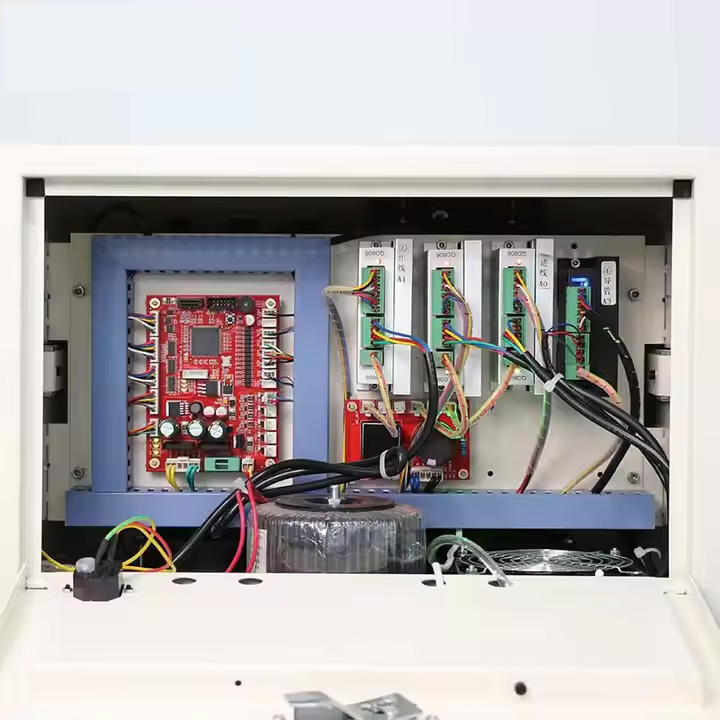

●Hybrid stepper motor, integrated control board, mute subdivision driver, offers precise cutting and stripping, low noise, no noise pollution.

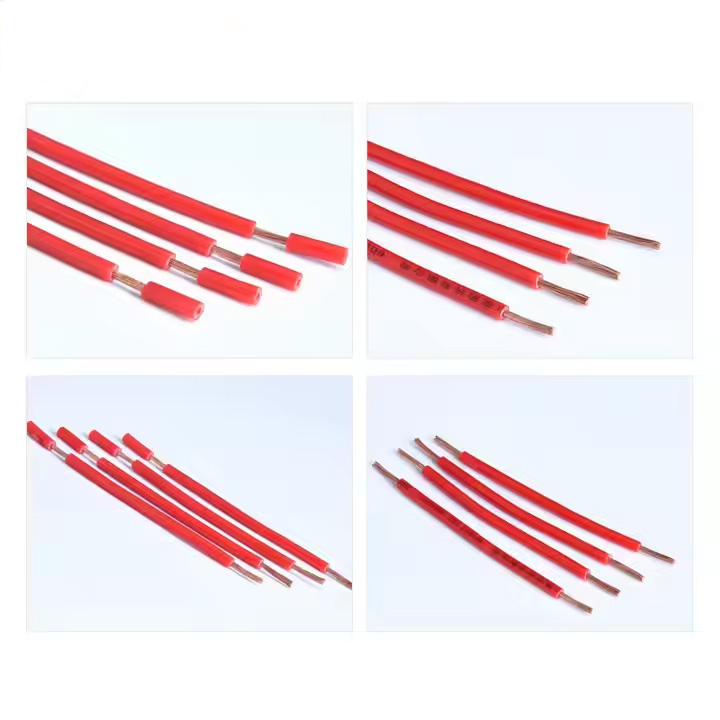

●Processing capabilities: full strip, partial strip and multi-step stripping, max 13 steps.
● nstead of traditional pulse adjustment, the MN-S315 use innovative and intelligent way to measure wire size and set stripping diameter.
● Automatic correction of cutting length saves much time and ensure the cutting accuracy.
● STEP function show every single step clearly, it#39;s very helpful for initial operation,training operator and troubleshooting.
● Detection of lack wire, when wire is used up, the machine automatically stops working and sounds alarm to report it.
