Crimp
Terminal crimping machine is a device that automatically crimps terminals (O-type, U-type, pin-type terminals) to the ends of wires or cables. It improves production efficiency.
Home Porducts Crimp
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

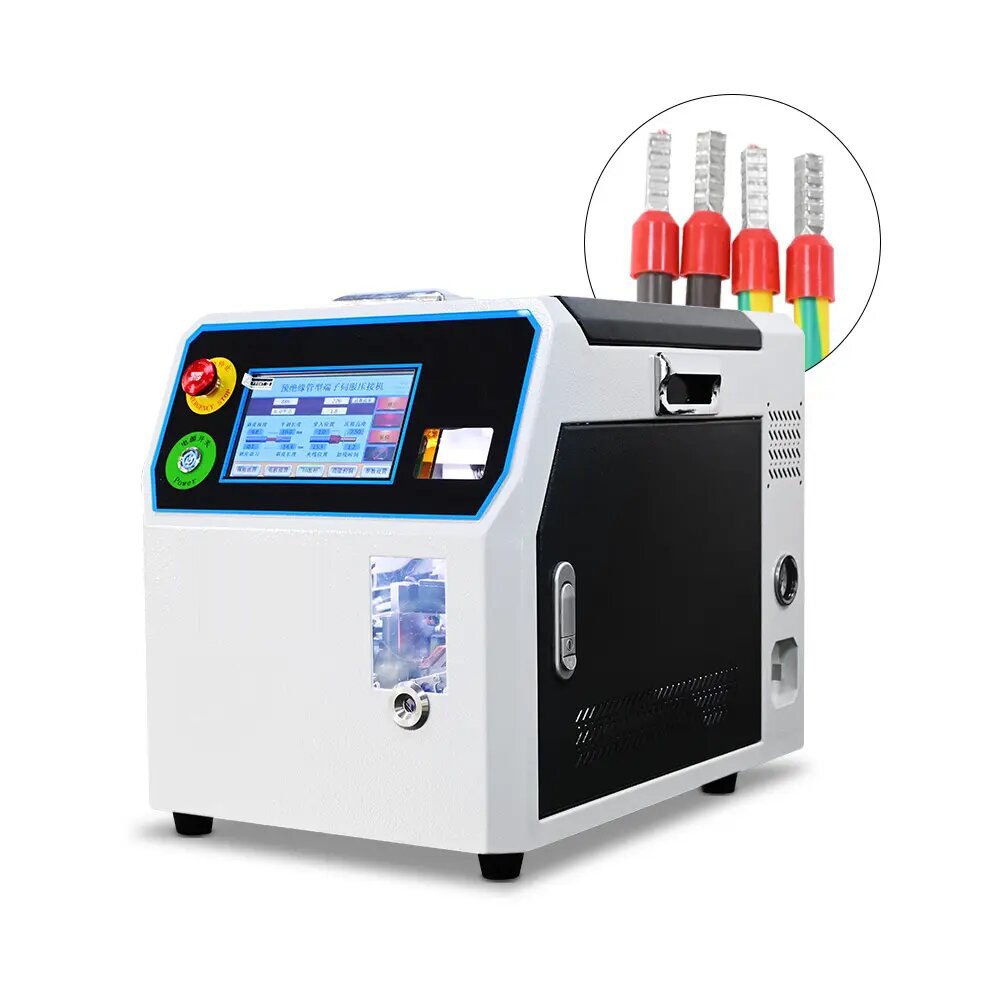

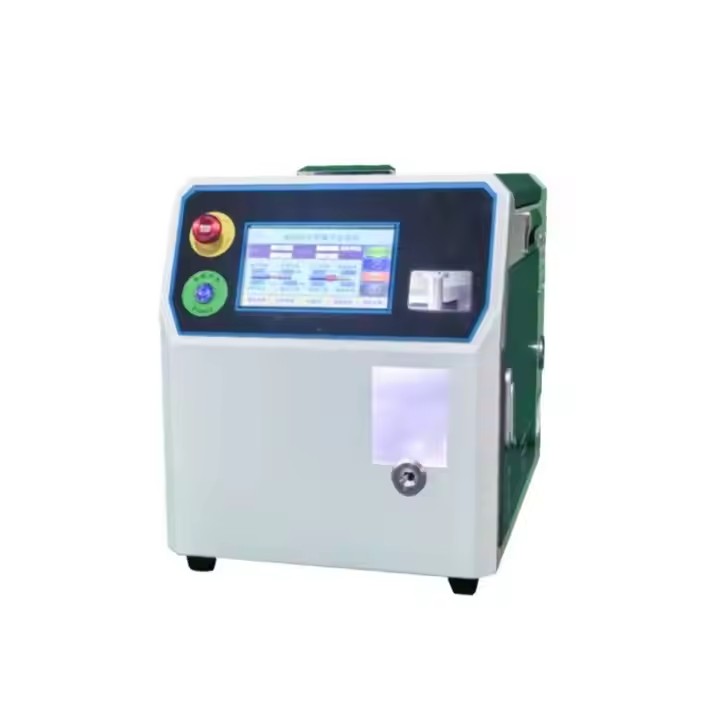

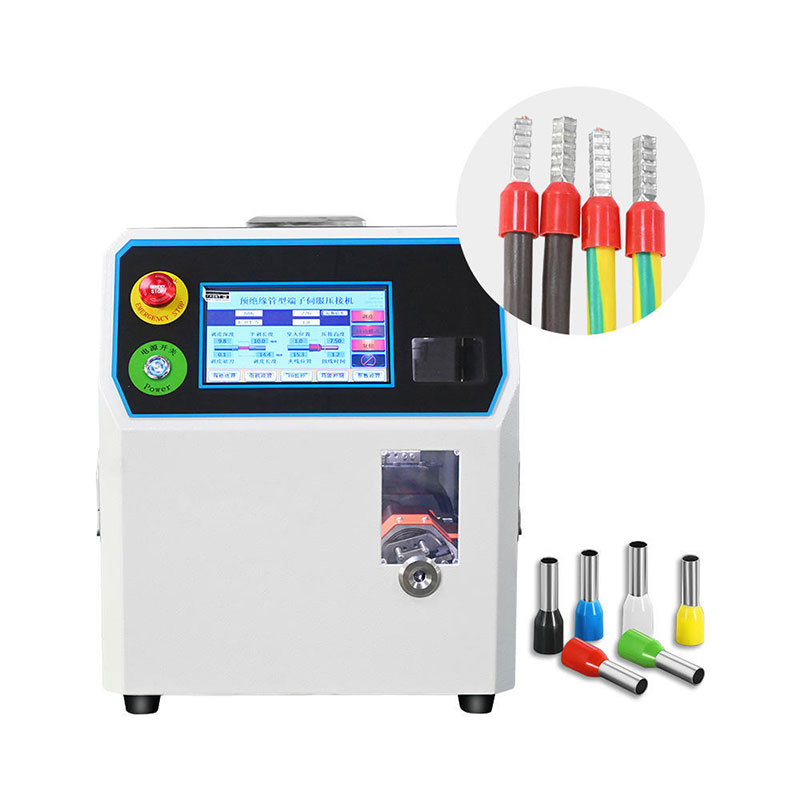

0.5-16mm2 Ferrule Strip&Crimp Machine
Model:MN-CP8010
ENQUIRE NOW!
Model:MN-CP8010
Wire Size:0.5-16.0mm2(Standard),0.3-0.5mm²(Customized)
Terminal Size:
Insulator length ≤11mm,
conductor length≤20mm
Stripping Length: 6-30mm
Air Supply:0.6-0.8Mpa
Specifications
Video
Download
ModelMN-CP8010
Control Modehuman-machine interface, electronic control, pneumatic control
Wire Size0.3-16mm2(<0.5mm2 , need samples customize and test)
Tube SizeInsulatorlength<11mm ,conductorlength<20mm
StrippingLength6-30mm
ProductionCapacity3.2s /wire
Air Supply0.5-0.6Mpa
Power SourceAC220V/110V/50/60HZ
Weight65KG
DimensionsW360mm×L530mm×H430mm
Feature

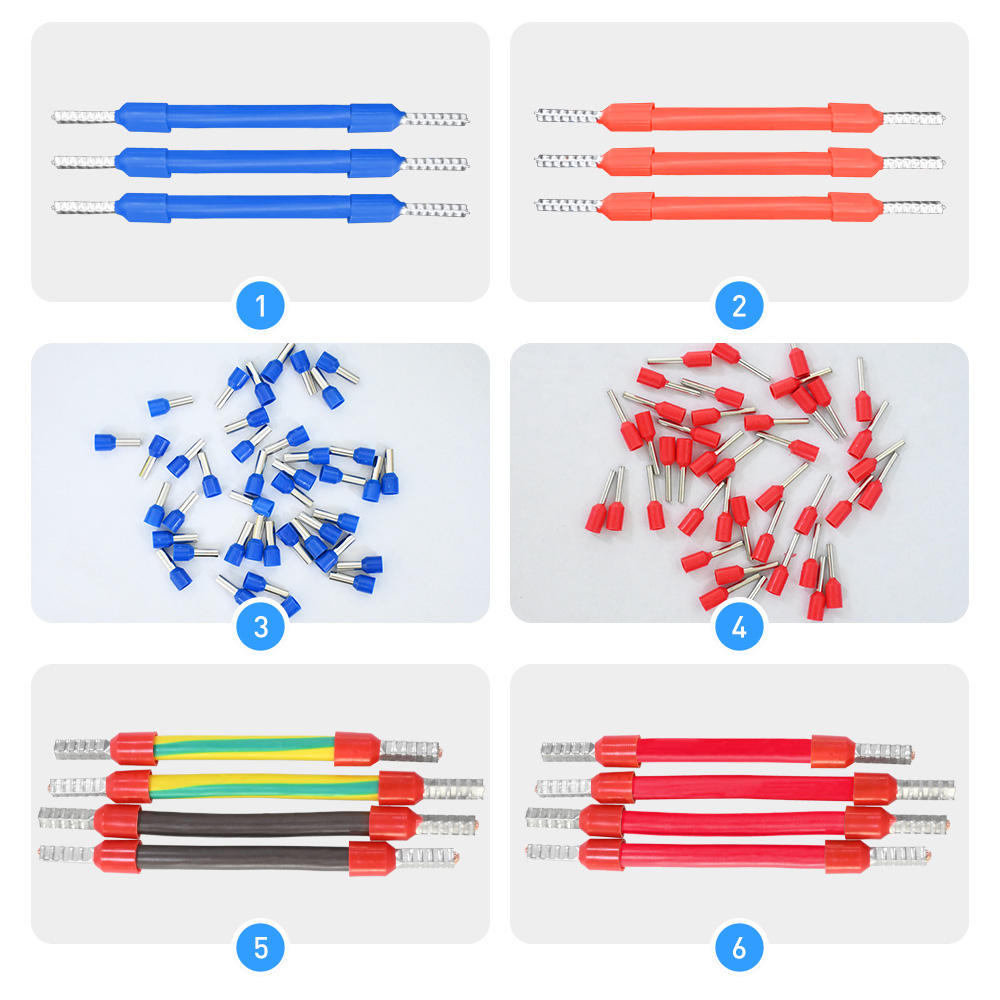

This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables.
1. Suitable for crimping a variety of loose tubular terminals onto cables.

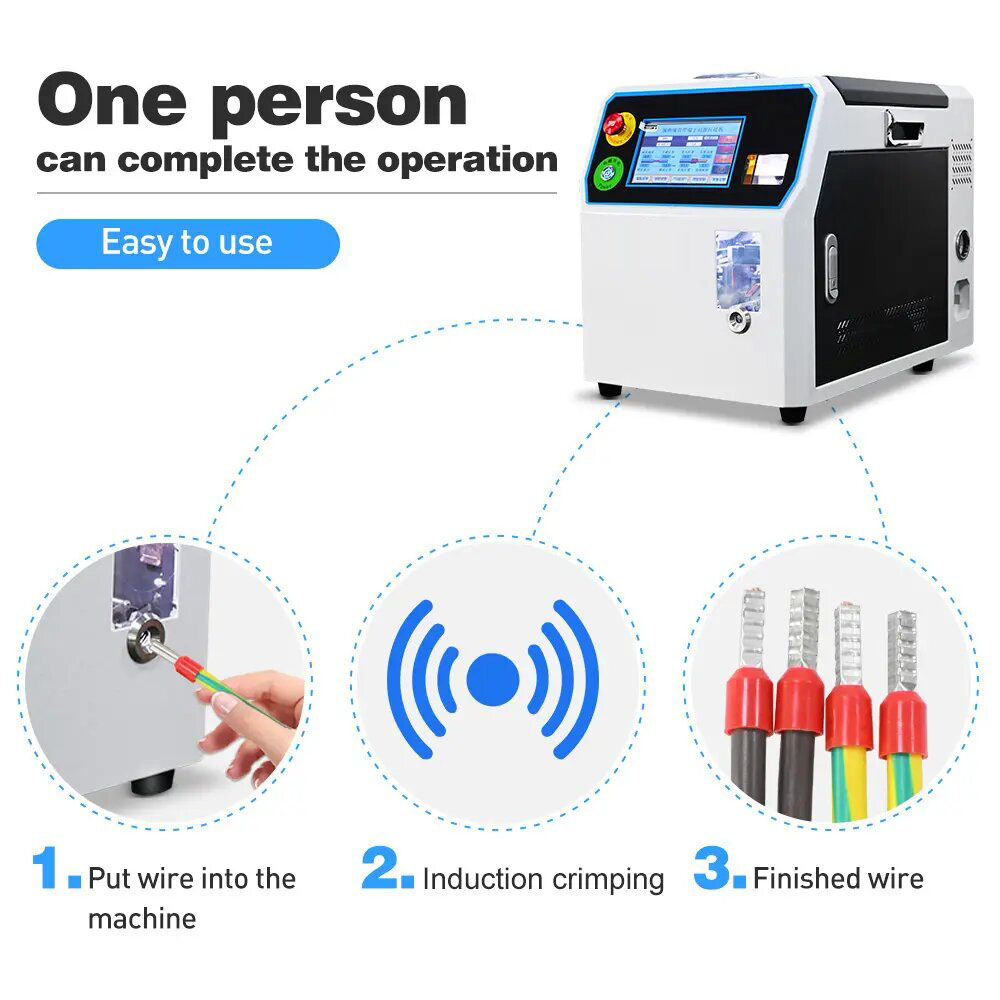

2. Wire stripping and crimping can be finished at one time.
3. The terminals are crimped on all four sides, no need to replace the crimping die.
4. LCD display, automatically adjust stripping depth and length, as well as crimping height.

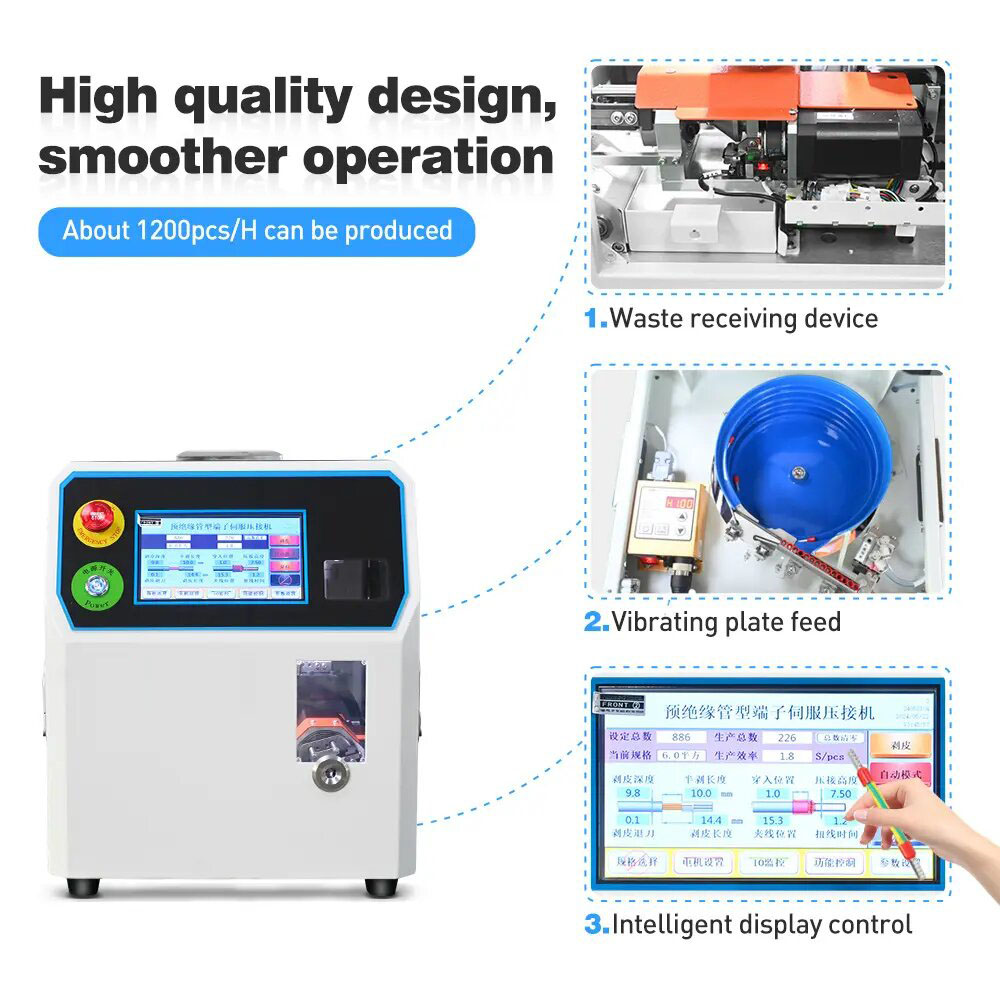

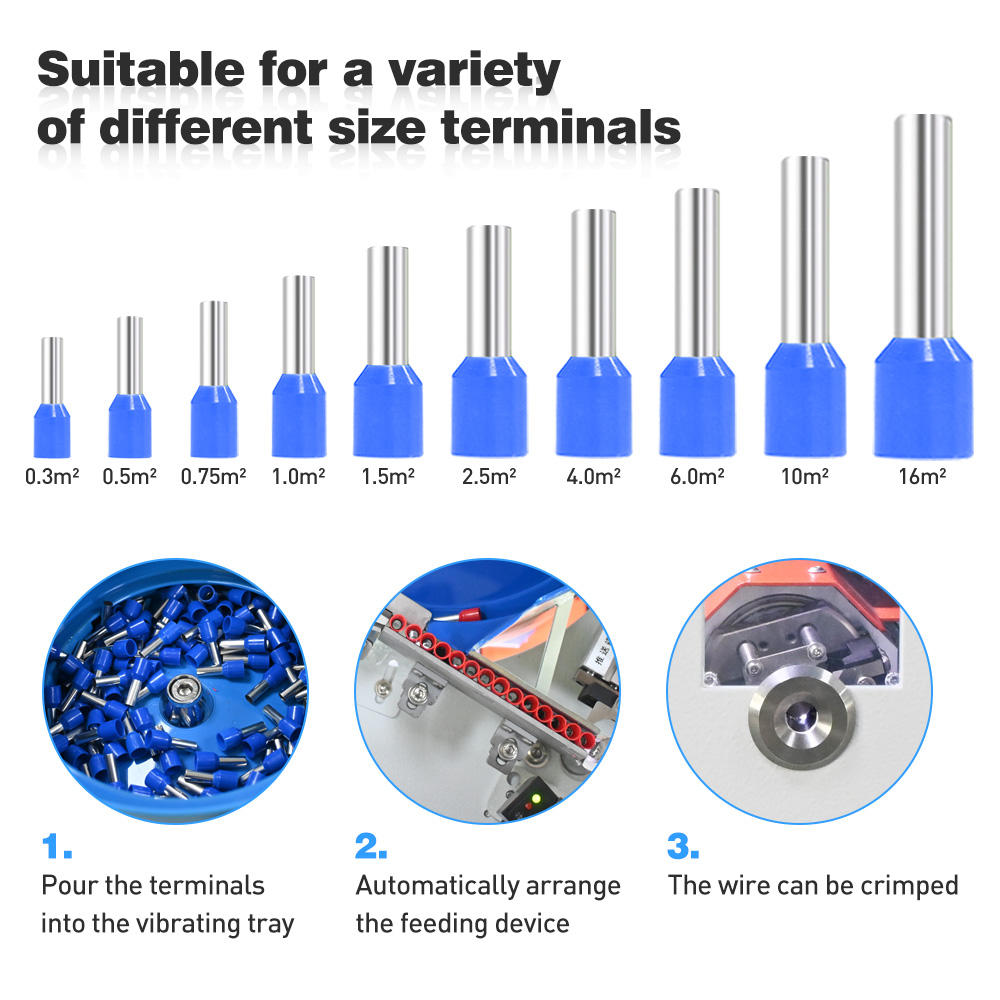

5. Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick.
6. Fully sealed stripping and crimping, safe and reliable.
