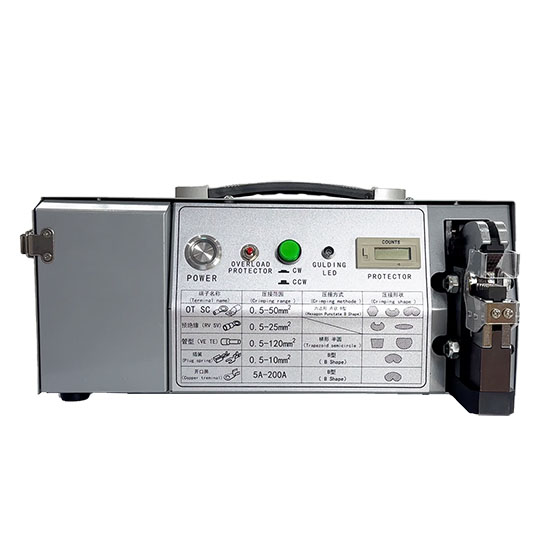

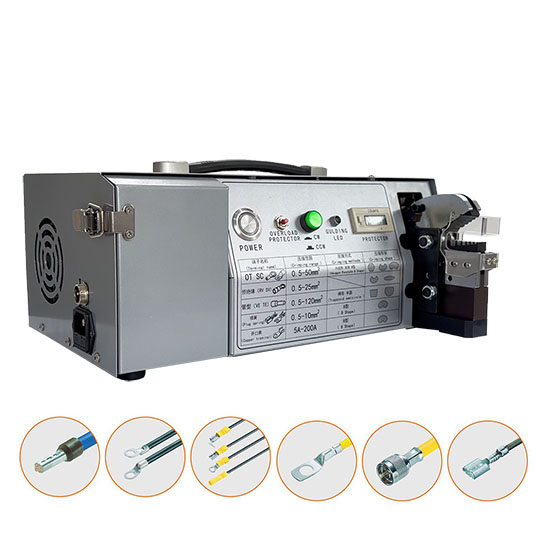

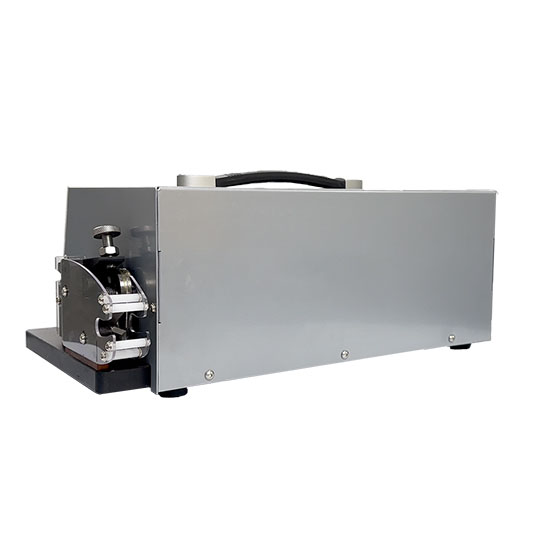

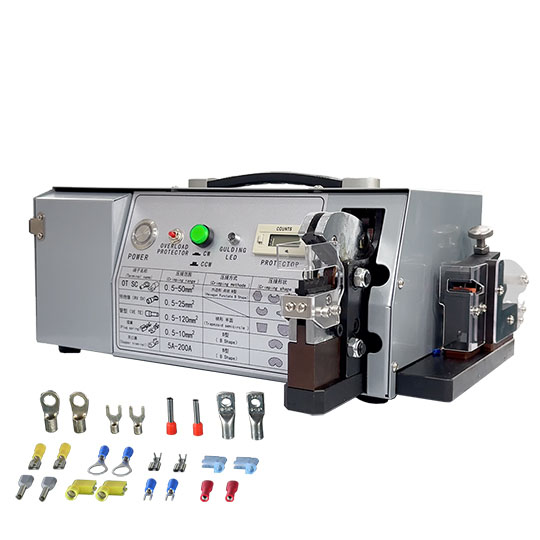

Electric Terminal Stripping & Crimping Machine (50mm²)
Model:MN-50B2

Model: MN-50B2
Applicable non-insulated terminal:less than 50mm2
Applicable insulated terminal: less than 25mm2
Applicable tubular terminal: less than 120mm²
Output force:3.5 KN

Specifications

Video

Download

Metric

Imperial

Model MN-50B2

Application terminal shape Tubuler terminal

Application Non-insulated_ insulated terminal and Tubular terminal

Output force 3.5 KN

Applicable non-insulated terminal less than 50mm2

Applicable insulated terminal less than 25mm2

Applicable tubular terminal less than 120mm²

Crimping time 1.5 sec/1.8 sec

Power 180W

Dimension 325*265*150MM

Weight 20 kg

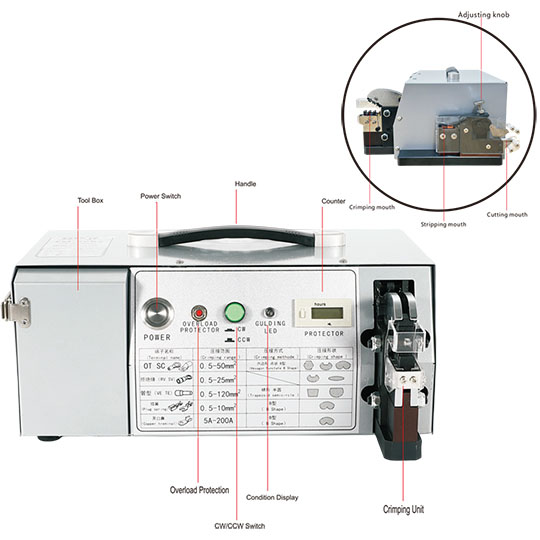

Feature

1. Electric Drive: Powered by a motor, the crimping force is precisely controllable, reducing human error.

2. Semi-Automatic Operation: Requires manual placement of the wire and terminal, but the crimping process is completed automatically, resulting in higher efficiency than purely manual tools.

3. Wide Range of Applicable Materials: Supports multiple wire specifications (e.g., 0.1mm² to 50mm²) and various terminal types.

4. Easy Operation: Intuitive interface;
