| Model | MN-CP805 |
| Usage | Multifunctional |
| Name | Stripping and crimping machine |
| Power Supply | Single Phase 200V-240V 45/60Hz |
| Air Source | 0.5-0.6mpa(Dry and clean air) |
| Applicable wire Diameter | AWG16#-AWG24#(Different depends on the wire) |
| Applicable wire | AV、AVS、AVSS、CAVUS、KV、KIV、UL,fiber line ,etc. |
| Stripping length | 1.0mm-8.0mm |
| Cutting error | 0.05mm-0.1mm |
| Position error | 0.05mm-0.1mm |
| Crimping terminal | Open continuous terminal,straight |
| Crimping capacity | 3T/4T |
| Stroke | 50mm |
| Dimension | L450*W500*H1000mm |
| Weight | 100KG |

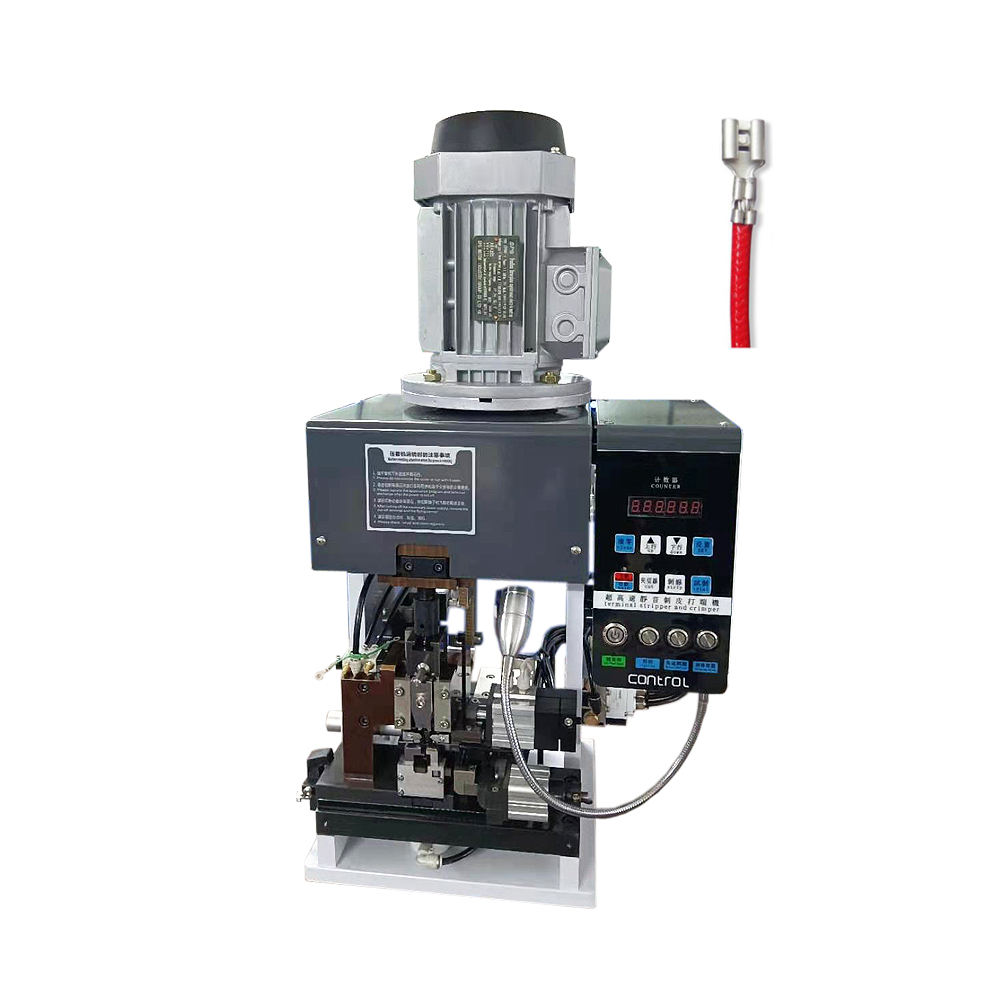

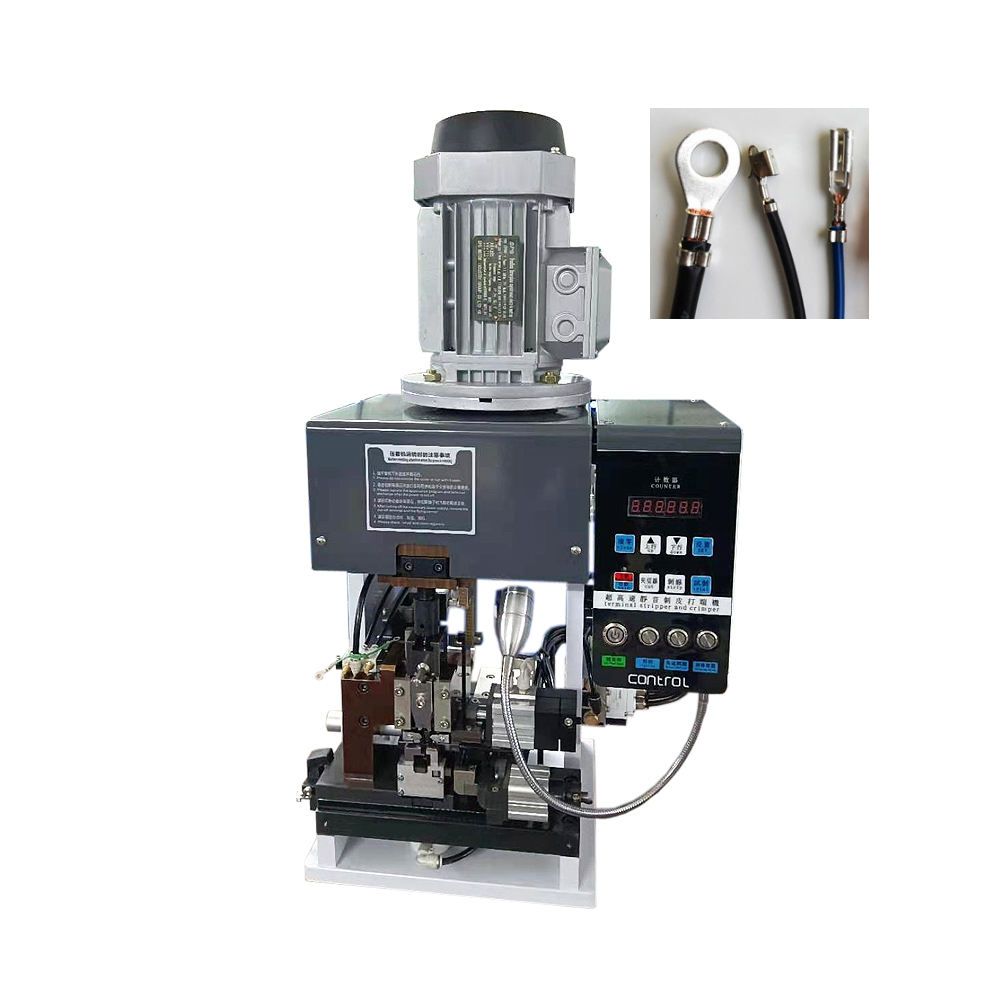

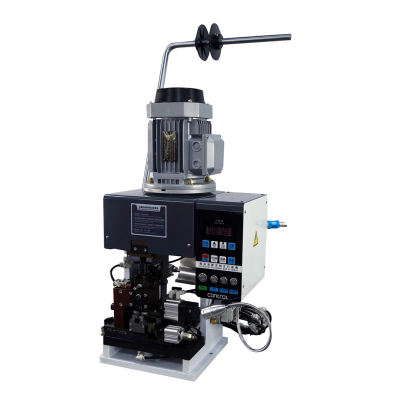

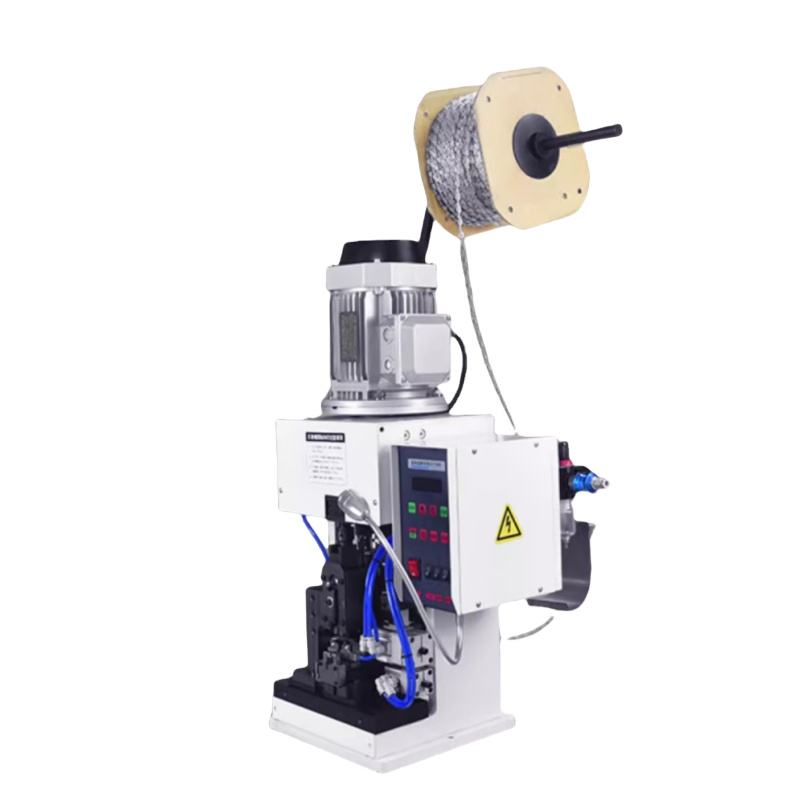

MN-CP805 Electronic Rear-feed Wire Strip and Crimp Machine
Stripping before crimping, precisely position wire and crimp terminal onto the wire
High precision for various end-feed terminals
The MN-CP805 wire strip and crimp machine is designed to process the rear-feed terminal in a roll, it#39;s capable of stripping
the wire and crimping terminal in one work step. The wire gripper holds the wire tightly and positions it above the terminal precisely, the user does not need to move the wire so to guarantee high precision. Insulation cutting accuracy and wire position accuracy are 0.05 - 1 mm.
The MN-CP805 strip and crimp machine apply to various end-feed terminals, such as shark teeth connector, 187, 250, O ring and flag terminals.
