| Name | Pre-insulated terminal crimping machine |
| Model | MN-CP8005 |
| Control mode | human-machine interface, electronic control, pneumatic control. |
| Operation mode | Automatic trigger operation and manual operation |

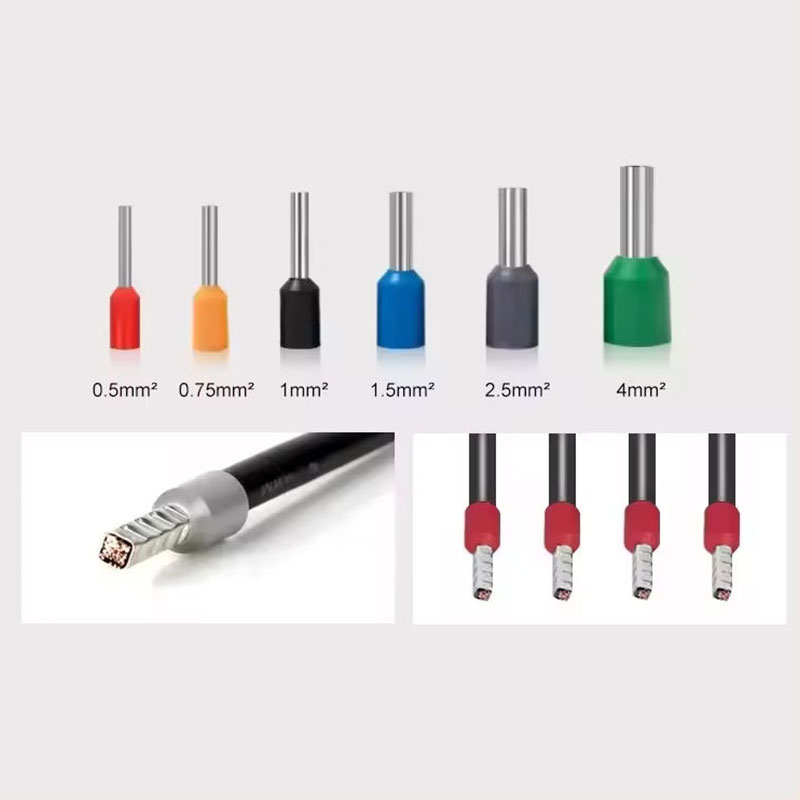

| Wire size | BVR wire 0.5、0.75、1.0、1.5、2.5、4.0mm2 |
| Terminal size | Insulator length ≤7.5mm、conductor length≤10mm |
| Crimp Shape | Quadrilateral Crimp |
| Product replacement | Manual replacement of related parts, adjustment of vibration plate and electric memory adjustment. |
| Production capacity | 2.5s /wire (considered as a single cycle of the machine). |
| Detection items | terminal presence or absence、 right side safety door open detection. |
| Power source | External input power AC220V / 50Hz (single-phase) 10A; internal power |
| Air source | 0.6-0.8Mpa (please use a stable, clean and dry air source, and keep the air source at least 0.6 Mpa). |
| Working temperature | 10～25℃ |
| Operating humidity | 30～80%HR （non-condensing） |
| Dimensions | W350mm×L450mm×H400mm excluding protrusions). |

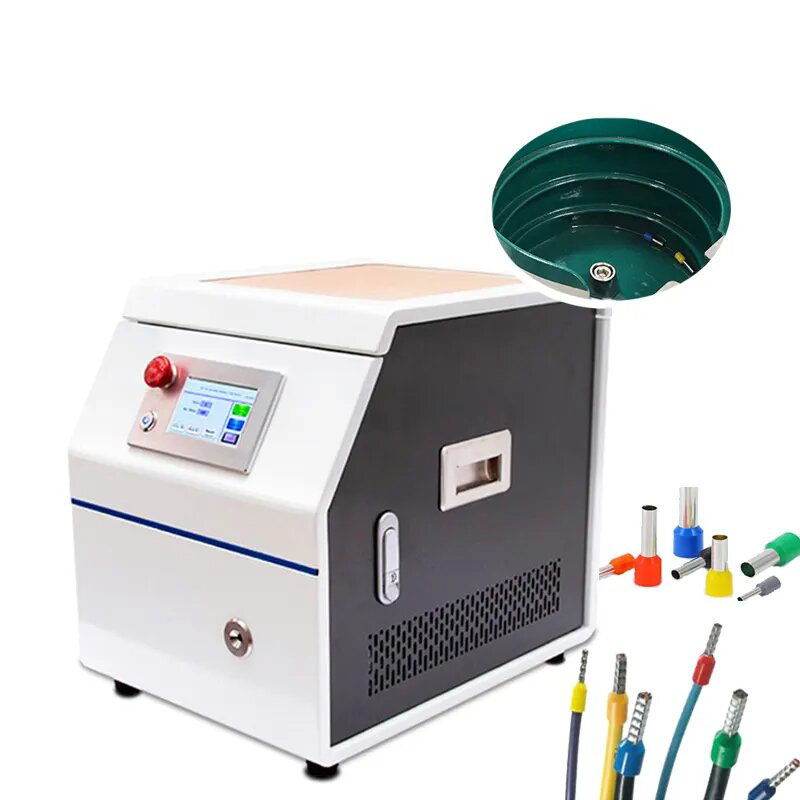

This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables.
1. Suitable for crimping a variety of loose tubular terminals onto cables.
2. Wire stripping and crimping can be finished at one time.
3. The terminals are crimped on all four sides, no need to replace the crimping die.

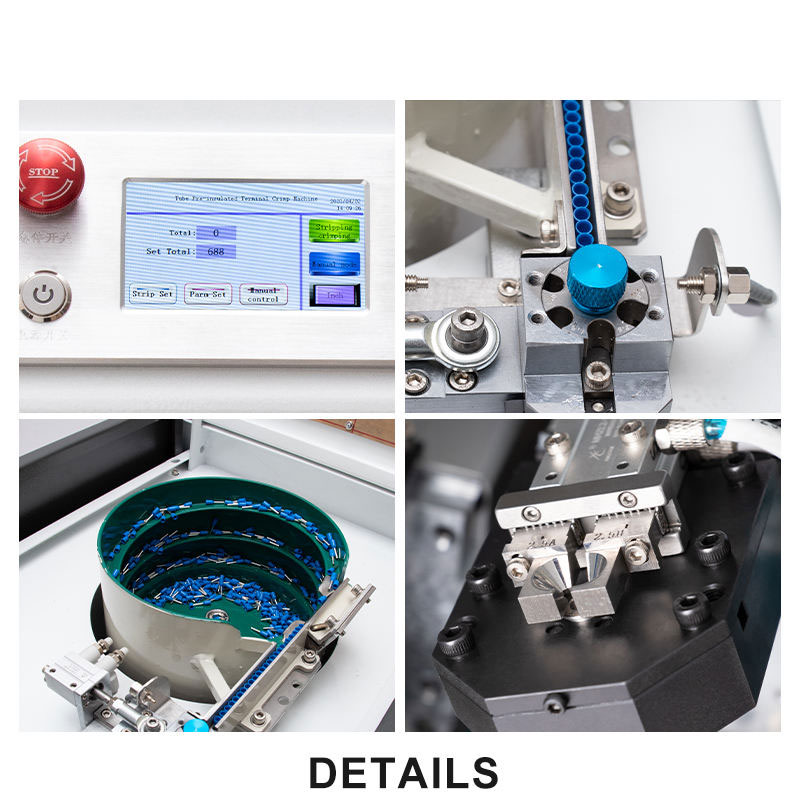

4. LCD display, automatically adjust stripping depth and length, as well as crimping height.

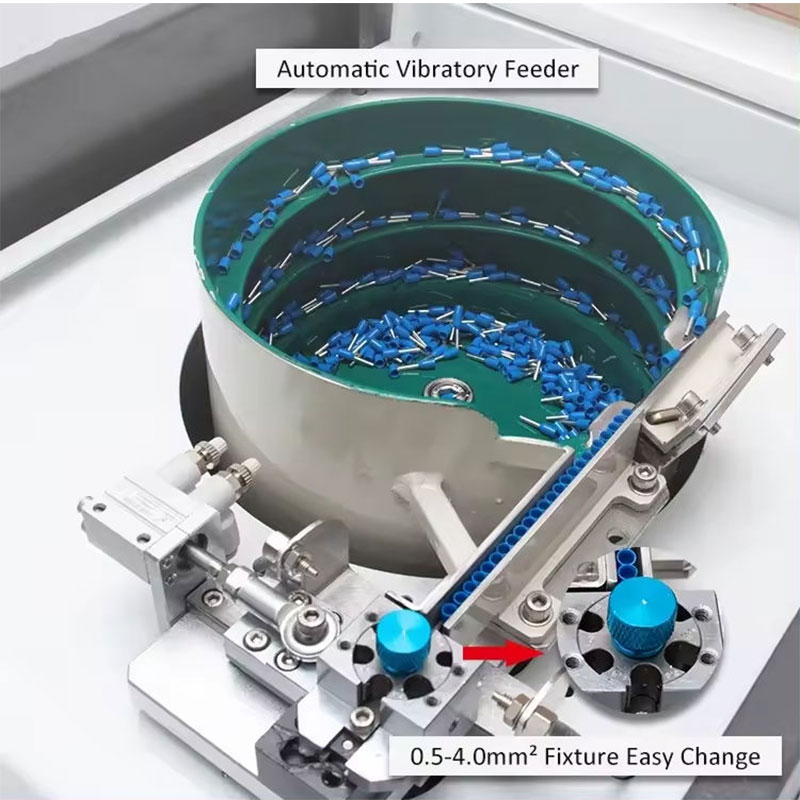

5. Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick.
6. Fully sealed stripping and crimping, safe and reliable.
