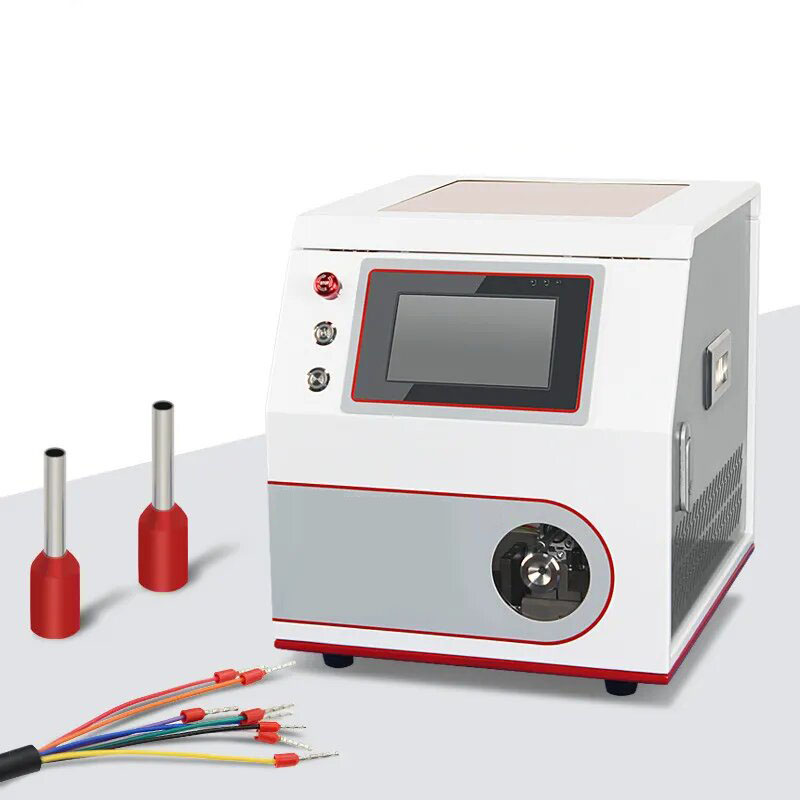

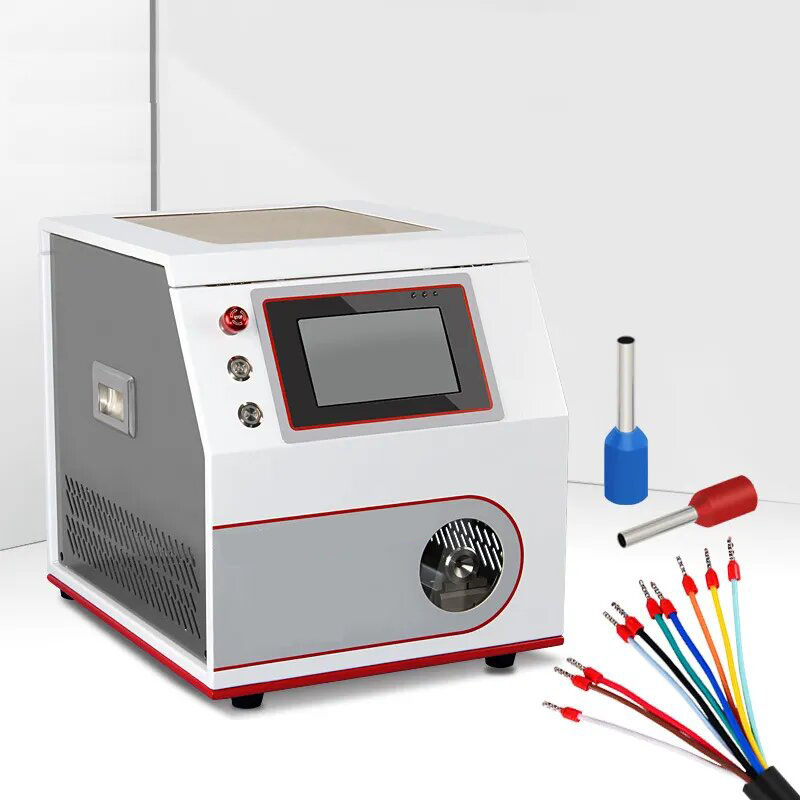

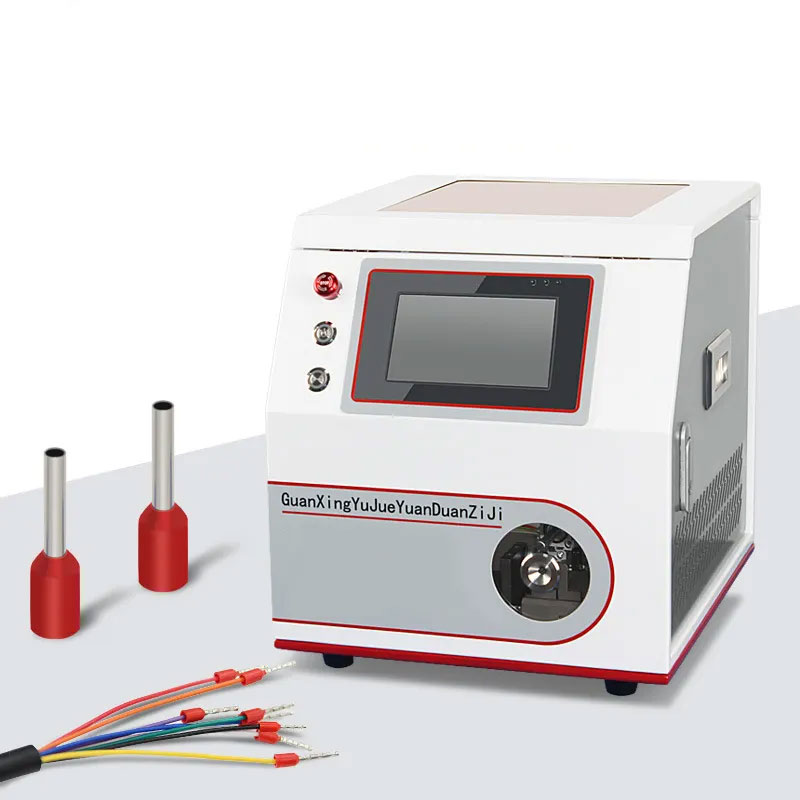

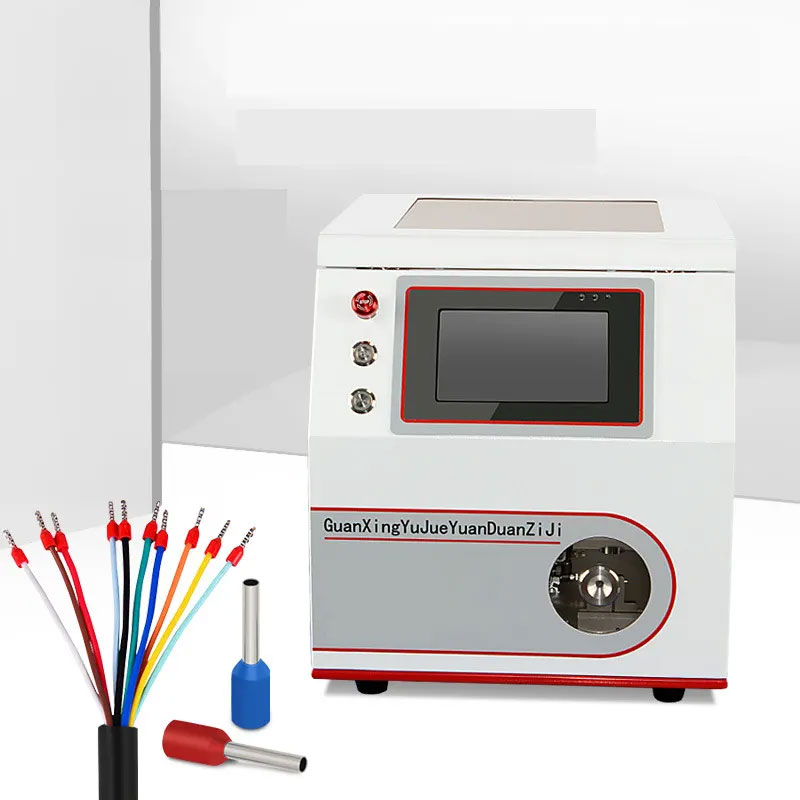

| Name | Pre-insulated terminal crimping machine |
| Model | DE-CP8015 |
| Control mode | human-machine interface, electronic control, pneumatic control. |
| Operation mode | Automatic trigger operation and manual operation |
| Wire size | BVRwire 0.5、0.75、1.0、1.5、2.5、4.0mm2 |
| Terminal size | Insulatorlength ≤7.5mm、conductorlength≤10mm |
| Crimp Shape | Quadrilateral Crimp |
| Product replacement | Manual replacement of related parts, adjustment of vibration plate and electric memory adjustment. |
| Production capacity | 2.5s /wire (considered as a single cycle of the machine). |
| Detection items | terminal presence or absence、rightsidesafety door open detection. |
| Power source | External input power AC220V / 50Hz (single-phase) 10A; internal power DC24V, DC12V |
| Air source | 0.6-0.8Mpa (please use a stable, clean and dry air source, and keep the air source at least 0.6 Mpa). |
| Working temperature | 10～25℃ |
| Operating humidity | 30～80%HR （non-condensing） |
| Dimensions | W350mm×L450mm×H400mm excluding protrusions). |
| weight | 40KG |
1.When there is no terminal in the guide slot of the vibrating disk, the machine will send an error alarm(can closed) whenthe right door is not closed properly, the machine will send anerror alarm(can be closed).
2.When the line bell is introduced, the sensing device is triggered. The machine automatically completes peeling and twisting A series of actions of terminal threading and crimping improve work efficiency and prevent workers from operating improperly When,improve the safety factor.

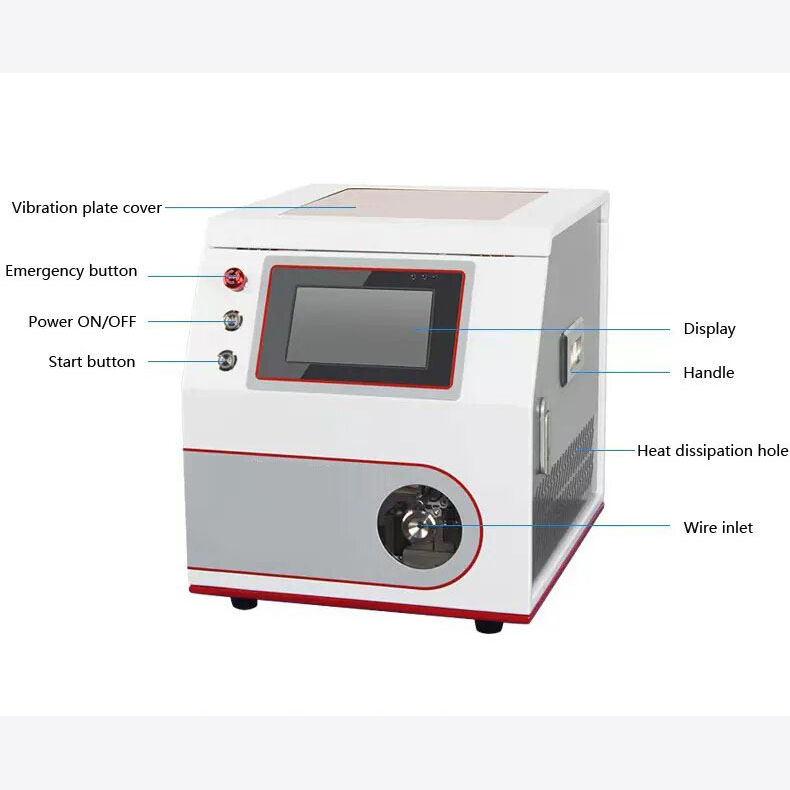

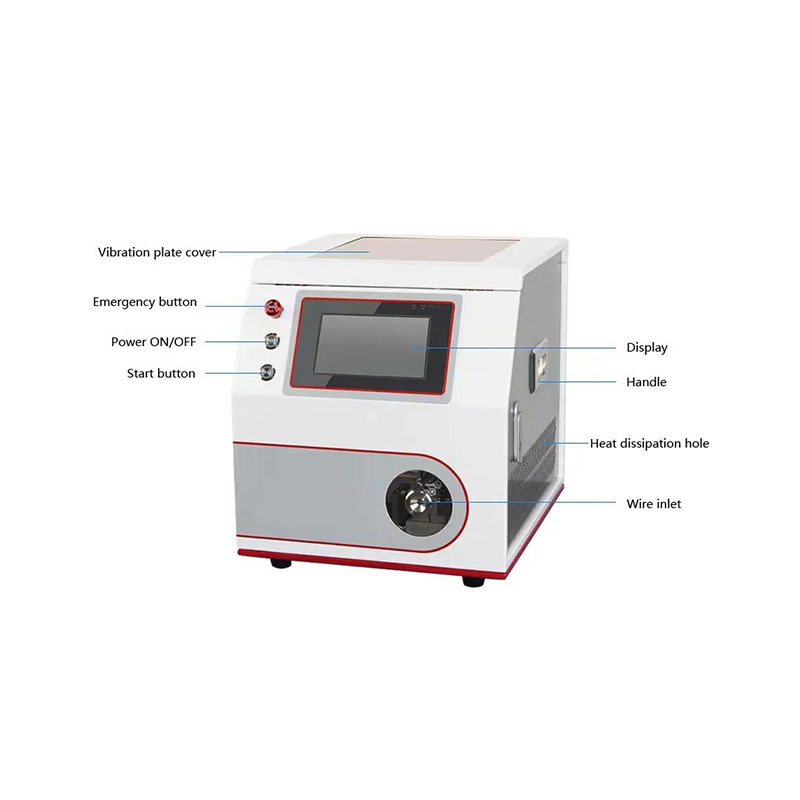

3.LCD screen display and touch operation,which is more easy to learn and use
4.The wire feeding part adoptshorn shaped thread opening fully sealed skin stripping and pressing and pulling connection,which makes the operation safer
5.Automatic feeding of bulk terminals saves time and effort and it only needs simple adjustment to change other kinds of terminals.
6.Terminals saves time and effort and it only needs simple adjustment to change other kinds of terminals

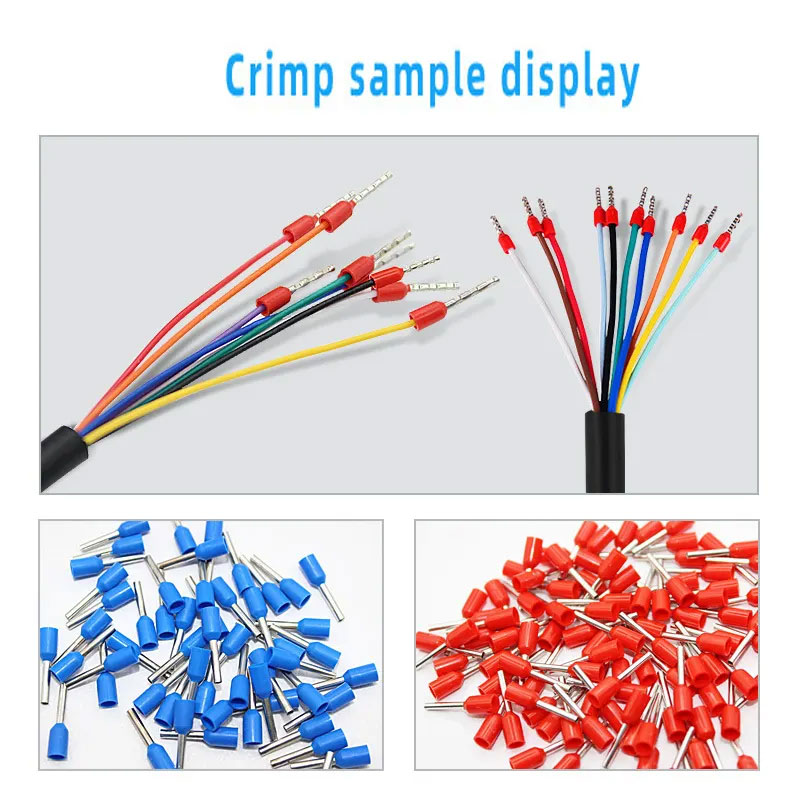

7.This device is mainly for flexible wire, thin wire and multi-corecopper wire, which are easy tospread. After twisting the wire, it is easier to penetrate into theterminal for crimping, which can avoid the pheno menon of reverse wire or non wire
