MN-S325

Cut & Strip

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

MN-S325
Model:MN-S325

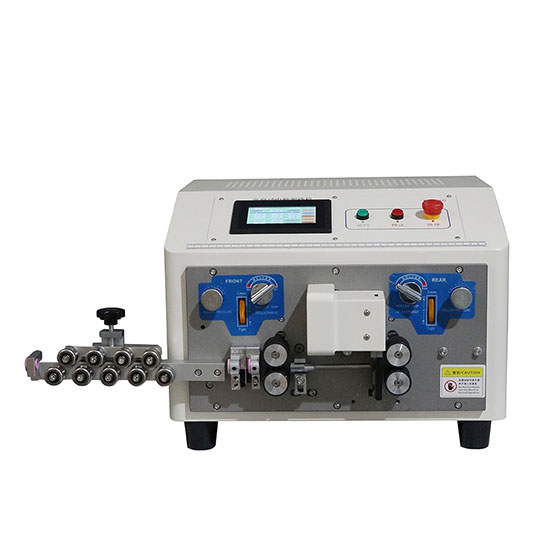

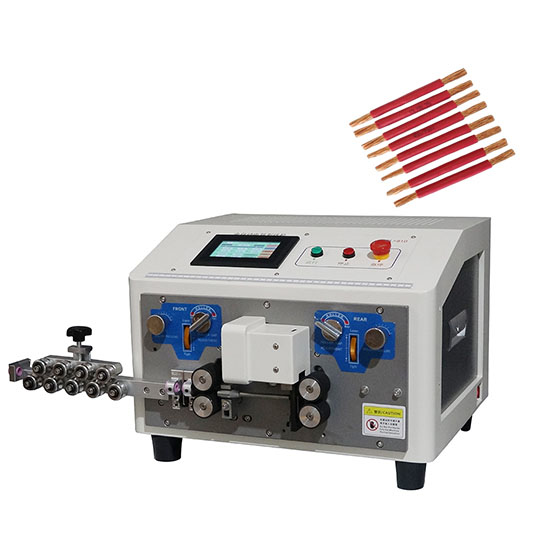

Model	MN-S325 Flat Cable Cutting and Stripping Machine
Function	2&3 cores flat cable,Cable measuring,Cutinto length,Outer jacket and inner wire stripping,Wire lack sensor,Length correction,Data library
Cutting length(L)	0.1-999999mm
Cutting length accuracy	0.002xL
Outer stripping length	Front(right)side:100 mm[Full stripping]
Rear (left)side	30 mm[Full stripping]
Inner stripping length	30 mm
Production rate	1800 pcs/h by 100mm wire length
Datalibrary	100 programs
Display	4.3"color touchscreen,English /Chinese [other languages on request]
Compatible peripherals	Wire prefeeder,robot arm,conveyor belt,printer
Power supply	AC 110-220V±10%,50/60 Hz
Air supply	0.4-0.7 MPa(clean and dry air)
Dimensions	Benchtop model:L460×W470×H 350 mm
Freestanding model	L700xW680xH1050 mm
Weight	35 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
