Industrial control cabinet cable processing equipment, fully automatic wire cutting, stripping, multi-core wire sheathing, stripping and cutting machine

Cut & Strip

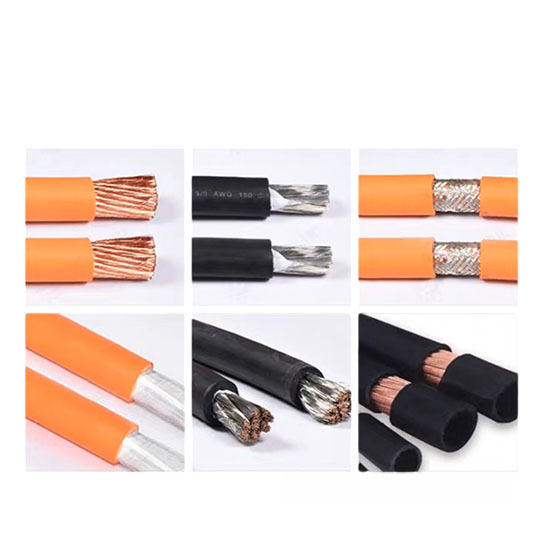

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

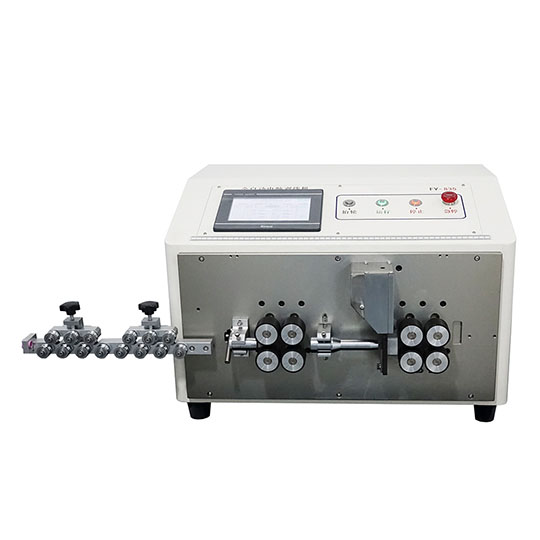

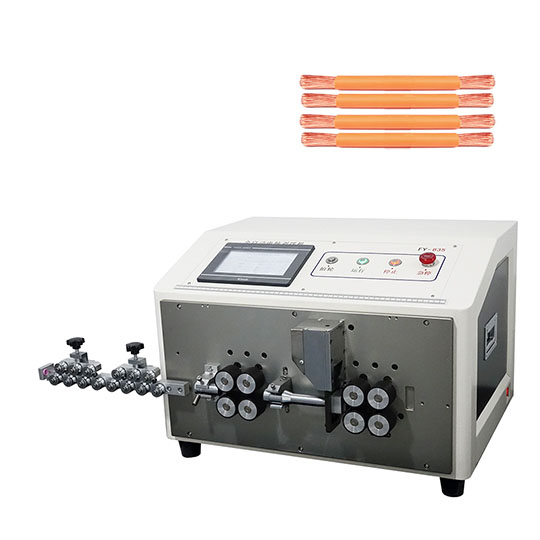

Wire Cutting & Stripping Machine (4-25mm2)
Model:MN-S335

ENQUIRE NOW!

Model number: MN-S335
Wire Size:4-25mm²
Stripping length: 0.1-150mm 0.1-70mm
Power:1200w

Specifications

Feature

Download

Model	MN-S335
Stripping length	0.1-250mm 0.1-70mm
Productivity	3000-8000 pcs./h
Power supply	110,220V(50-60 Hz)
Wire size	4-25mm²
Cutting length	0.1-99999.99 mm (0.004-3937.007..
Blade material	Imported tungsten steel

Quick belt replacement: The belt features a snap-on mounting mechanism, eliminating the need to disassemble the feeder assembly. A single operator can complete belt replacement in 5-8 minutes, significantly faster than the 20-30 minutes required for traditional wire strippers. The belt is oil- and wear-resistant, boasting a lifespan of 6,000-10,000 hours under normal use—1.5-2 times that of traditional metal feeders—reducing the frequency of replacement of wearing parts.

No risk of oil contamination: The belt drive eliminates the need for frequent lubrication, preventing lubricant from penetrating the wire insulation or core (especially suitable for clean wire processing in the electronics industry). This reduces internal oil cleaning and saves approximately 20% of maintenance hours annually.
