Crimp
Terminal crimping machine is a device that automatically crimps terminals (O-type, U-type, pin-type terminals) to the ends of wires or cables. It improves production efficiency.
Home Porducts Crimp
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

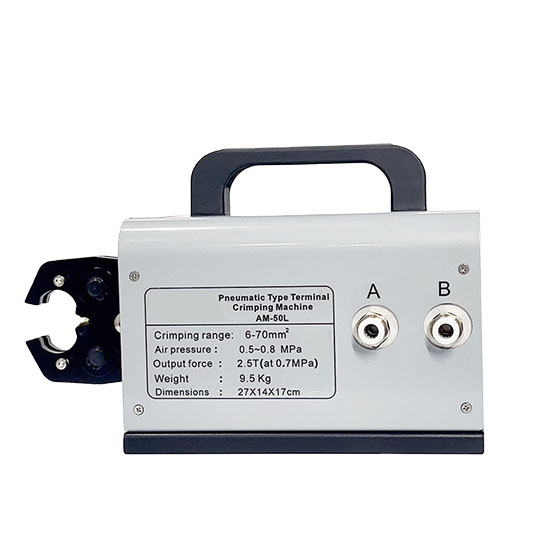

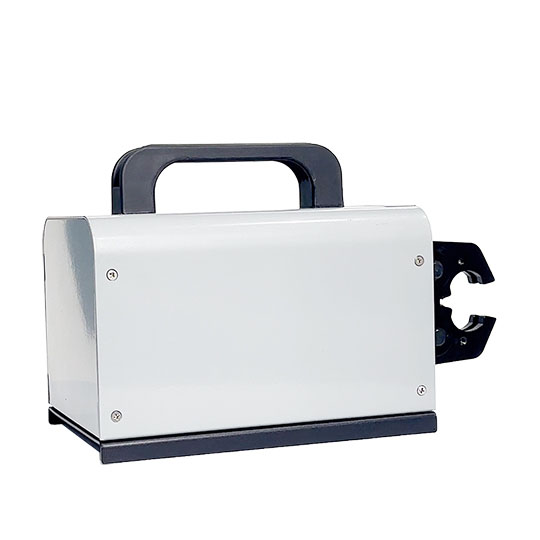

2.5T Pneumatic Terminal Crimping Machine(6-70mm²)
Model:AM-50L
ENQUIRE NOW!
Model: AM-50L
Crimping:6-70mm²
Airpressure:0.5~0.8MPa
Outputforce:2.5T
Foot Pedal:Yes
Specifications
Video
Download
Metric
Imperial
Model AM-50L
Crimping force 2.5T
Air pressure 0.5-0.8Mpa
Crimping range 6-70mm2
Material high-carbon steel
Weight 10 kg
Dimension 27*14*17cm
Feature

AM-50L is a pneumatic terminal crimping machine, which can replace manual crimping tools. The crimping speed is 10 times that of manual crimping. It has a high cost advantage. It is suitable for the crimping of international standard connection terminals. The precision mold material is made of high-quality alloy steel through a special heat treatment process. Fast crimping, firm and reliable crimping effect.

1.The mini design has a small footprint and is easy to move.

2.Foot switch control, fast and convenient operation.

3.Energy-saving cylinder design

4.The mold material is made of high-quality alloy steel through a special heat treatment process, which is very durable.

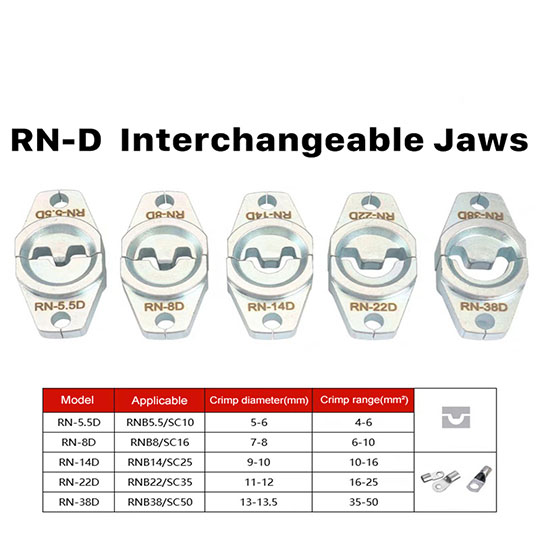

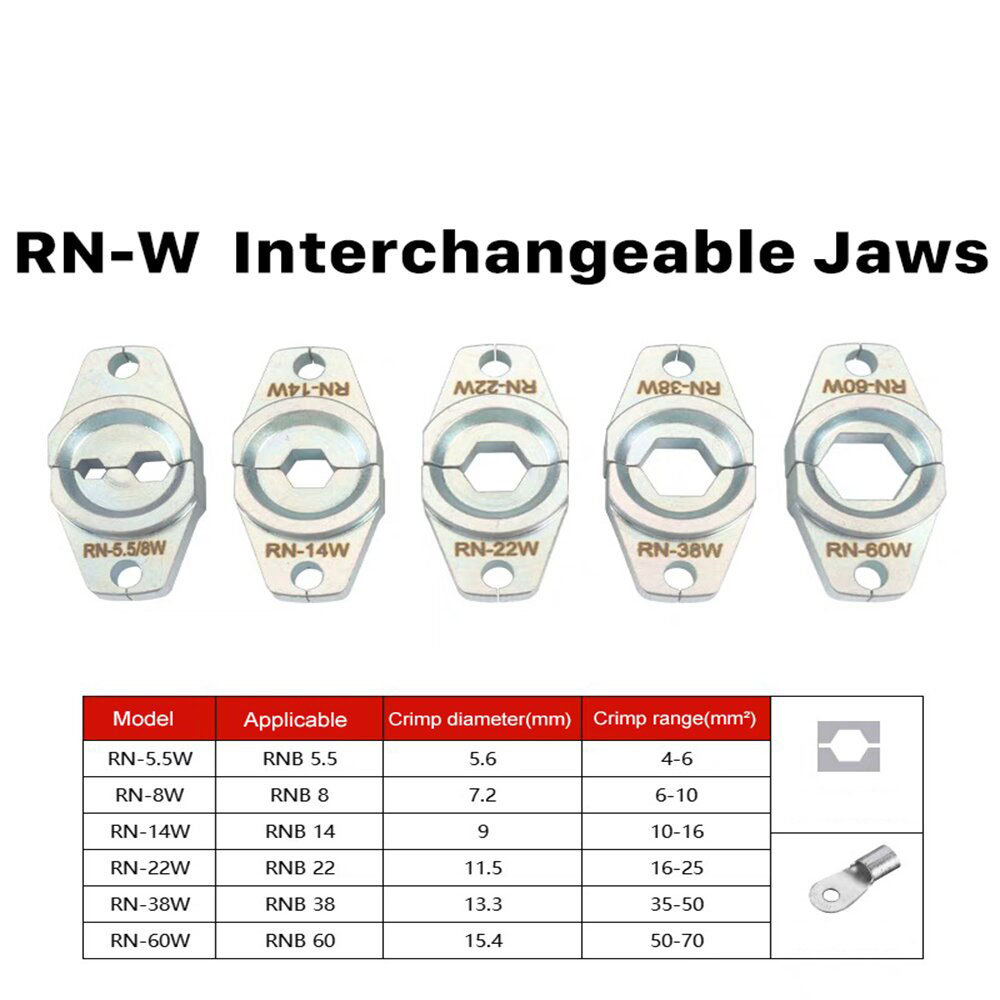

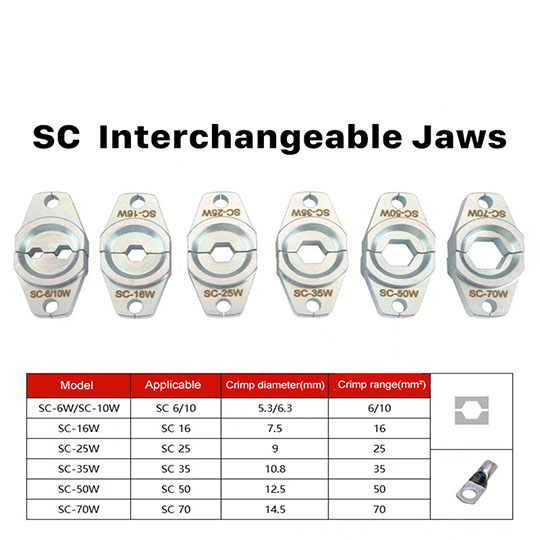

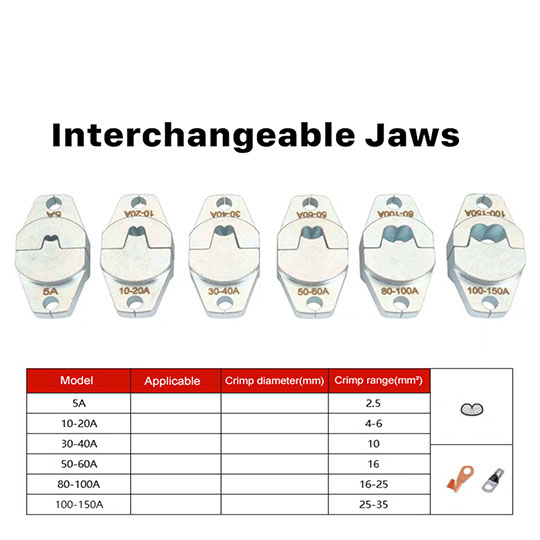

5.The jaw die can be replaced to adapt to crimping different terminals
