Large Desktop Cable Stripping Machine Square Computer Wire Stripper for 0.75-35mm² Cable Manufacturing Easy to Use

Cut & Strip

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

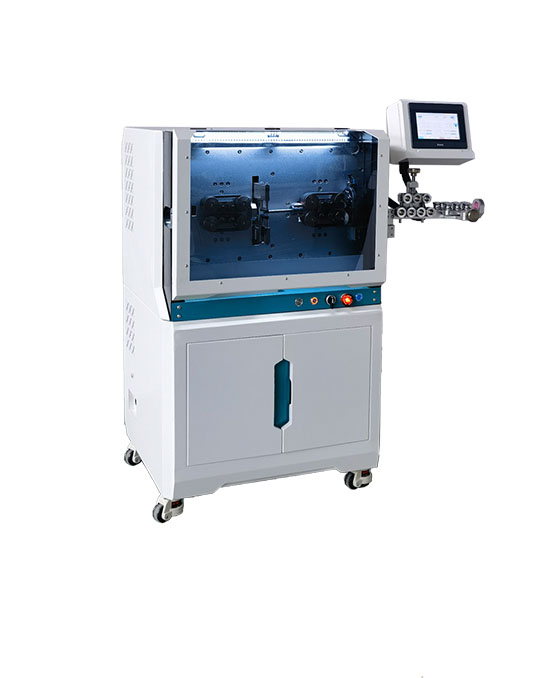

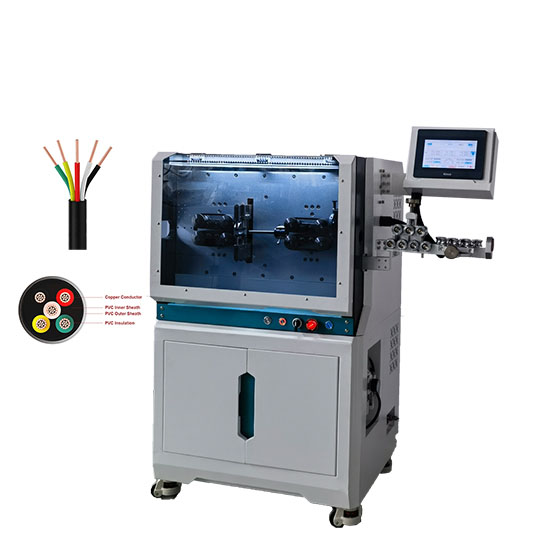

Muti Core Wire Cutting & Stripping Machine (OD 0.75-30mm2)
Model:MN-S110HY

ENQUIRE NOW!

Model:MN-S110HY+ 1
Conductor cross-section:0.75-30mm²
Cable:Single core cable, Multi-conductor cable, Sheathed cable PVC cable etc.
Core wire stripping:2-10 cores
Cutting length:1-999,999.9mm
Stripping length (side l):Cable jacket: Full strip:10-200mm
Core wire: -Full strip:1-50 mm
Stripping length (side ll):Cable jacket:Full trip:10-80mm
Core wire: Full strip:1-50mm
Maximum guide tube diameter:18 mm

Specifications

Feature

Download

Model	MN-S110HY+ 1
Conductor cross-section	0.75-30mm²
Cable	Single core cable, Multi-conductor cable, Sheathed cable PVC cable etc.
Core wire stripping	2-10 cores
Cutting length	1-999,999.9mm
Cutting length tolerance	<0.002*L(L=cutting length)
Stripping length (side l)	Cable jacket -Full strip:10-200mm Core wire -Full strip:1-50 mm
Stripping length (side ll)	Cable jacket -Full trip:10-80mm Core wire -Full strip:1-50mm
Maximum guide tube diameter	18 mm
Productivity	3500 pcs./h
Blade material	Imported high speed steel
Display made	7-inch touch screen

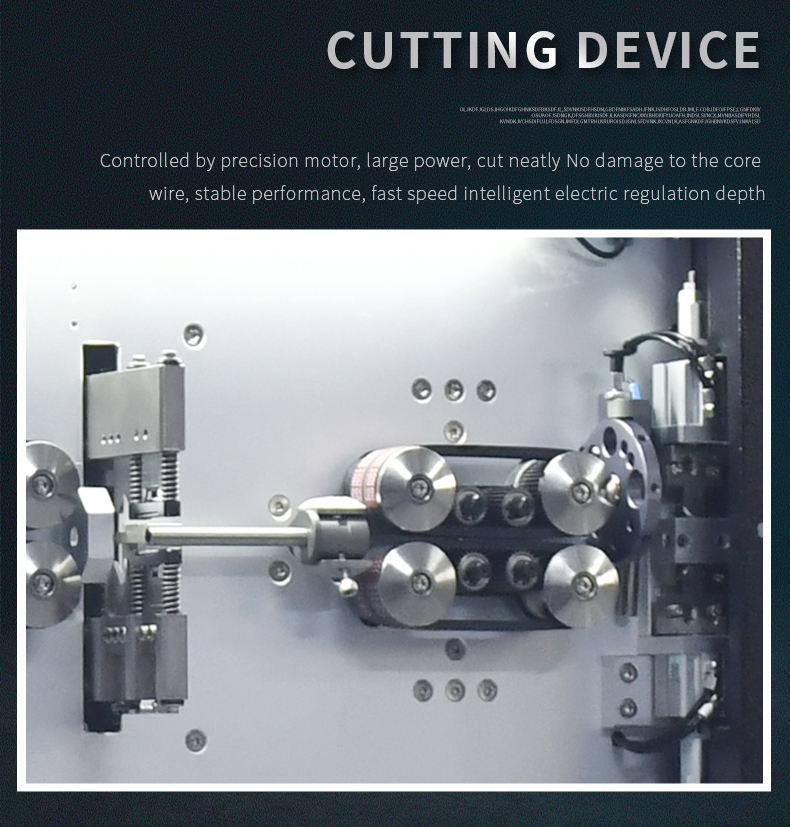

Driving mode	Servo motor cutting with 16 roller driving system
Feeding mode	Belts feeding with pressure stripping function.
Roller Gap	Digital program control
Power supply	110,220V(50-60 Hz)
Power	1.1kW
Compressed air connection	0.5-0.7 MPa
Weight	95kg
Dimension	680605520 mm
Remarks	Custom options by sending samples

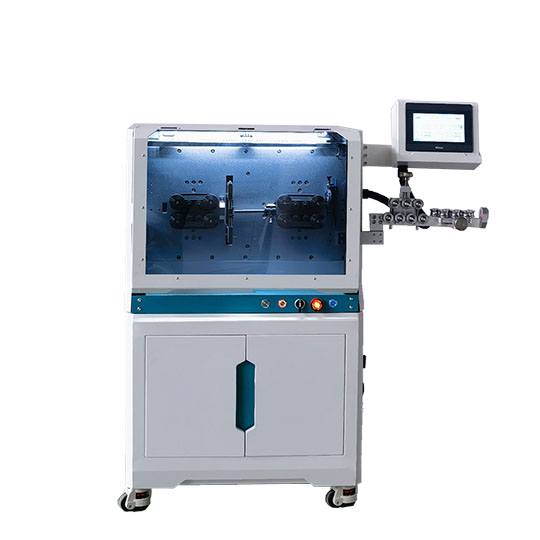

Multi-core wire stripping cutting machine

This is a fully automatic cable cutting and stripping machine. The outer sheath and inner conductor can be stripped at the same
time. The applicable wire size range is 0.75-30 mm².
●Function: cable cutting, outer jacket and inner conductor stripping
●Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary
equipment alarm;

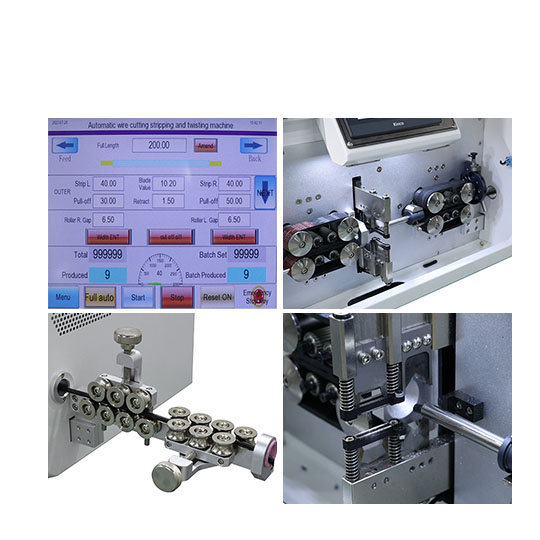

●User-friendly system with intuitive operation via 7” color touchscreen;
●Modular interface, easy to link accessories and peripheral equipment;
●Modular design, can be upgraded in the future;
●Various accessory options to customize the system. Special cable processing, non-standard customization.
