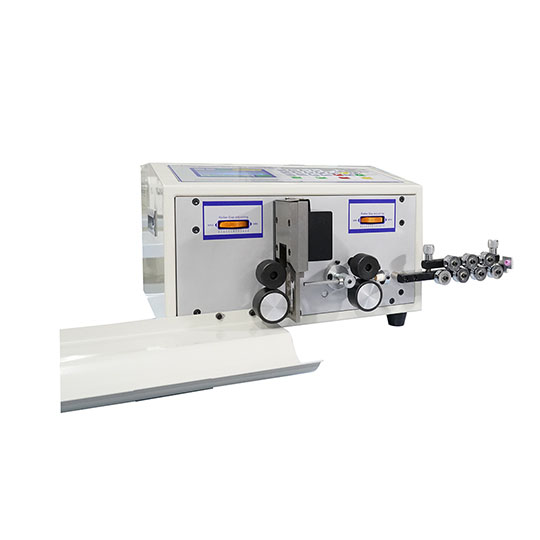

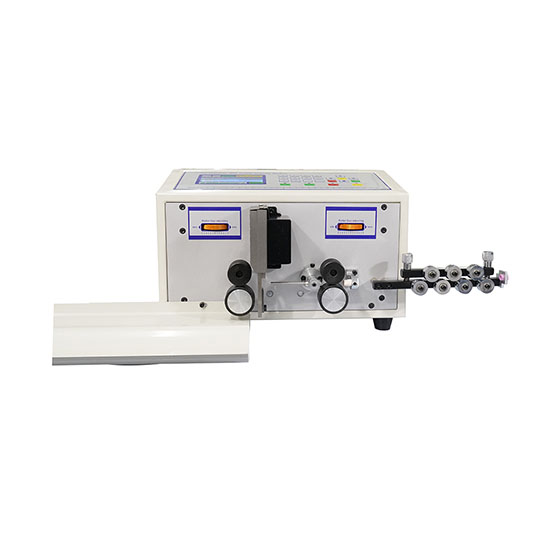

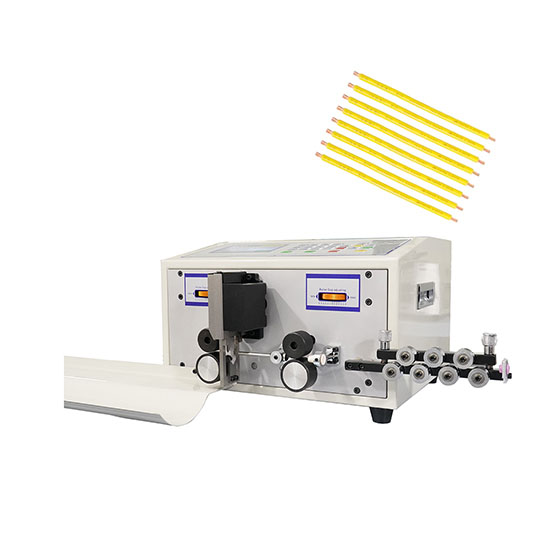

Wire Automatic Computer Stripping Machine（0.1-2.5mm²）
Model:MN-S290A

1. Model: MN-S290A

2. Stripping length:head 0-35mm, end 0-15mm

3. Intermediate stripping: eleven place strip

4. Wire cross section:0.1-2.5mm2

5. Suitable wire stripping: PVC/PTFE/silicone cable/fiber glass wire

Specifications

Video

Download

Metric

Imperial

Model MN-S290A

Wire Material Wide range of industrial wires

Wire Size 0.1 - 2.5 mm²

Cutting length 1 - 9999 mm

Cutting length tolerance < 0.002 * L

Stripping length (side I) 0 - 35 mm

Stripping length (side II) 0 - 15 mm

Maximum guide tube diameter 6 mm

Blade material Tungsten steel

Productivity 3000 - 8000 pcs./h (L = 100 mm)

Power supply 110_ 220 V (50 - 60 Hz)

Power 160W

Weight 28 kg

Machine dimension 430 * 410 * 400 mm

Feature

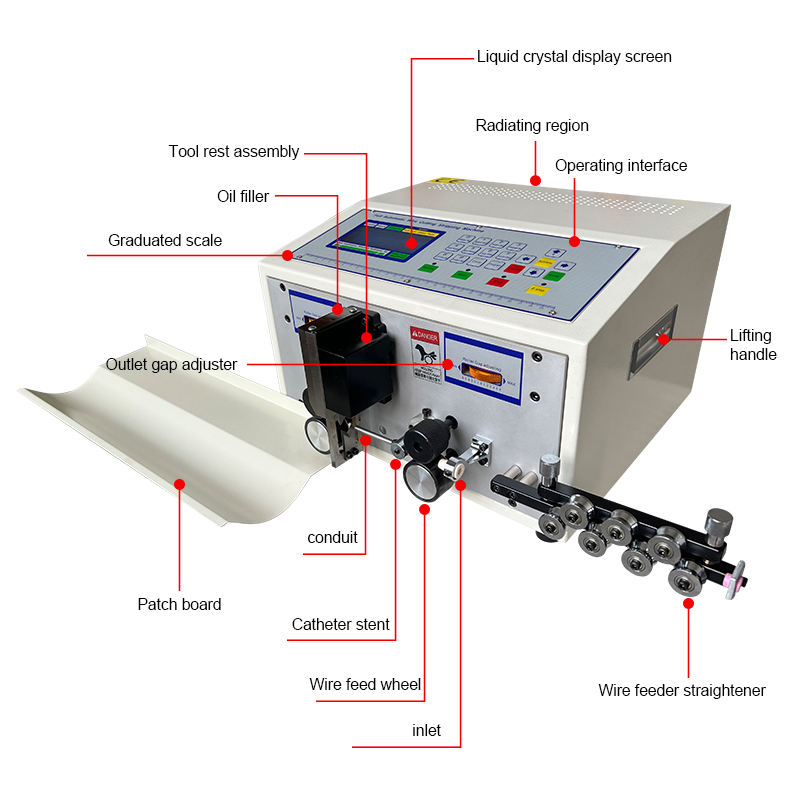

Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features.

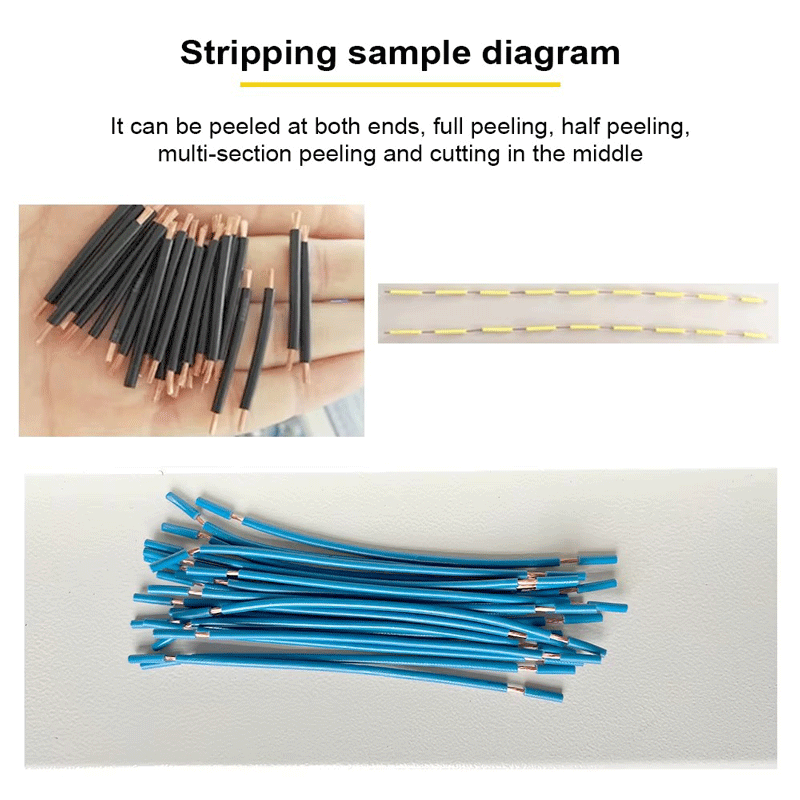

Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc.
