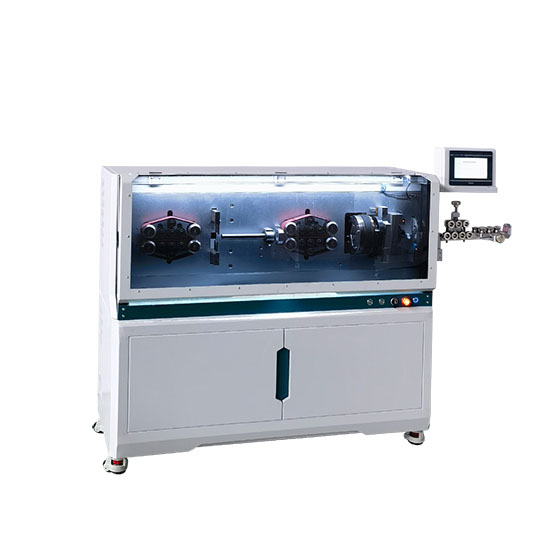

| Model | MN-X120 |

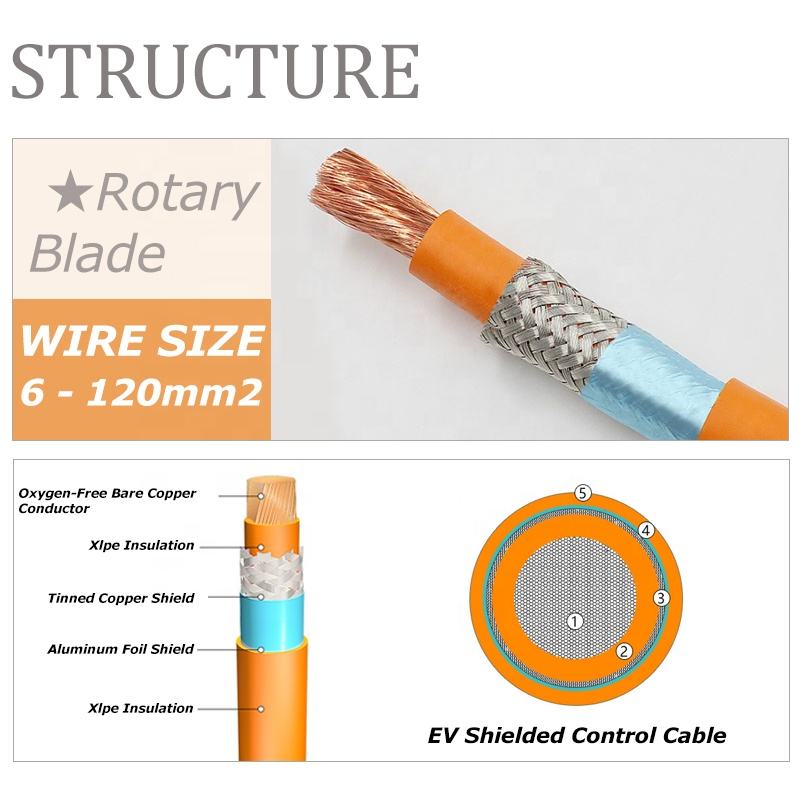

| Conductor cross-section | 6-120 mm² |
| Cutting length | 120-999,999.9mm |
| Cutting length tolerance | <0.002*L(L=cutting length) |
| Stripping length (sidel) | Cable jacket -Full strip:1-300 mm -Half strip:1-1000 mm |
| Stripping length (side II) | Cable jacket -Full strip:1-150 mm -Half strip:1-500 mm |
| Maximum guide tube diameter | 24mm |
| Productivity | 800-1000 pcs./h |
| Blade material | Imported high speed steel |
| Display mode | 7-inch touch screen |
| Driving mode | Servo motor cutting with 24 roller driving system |
| Feeding mode | Belts feeding with pressure stripping function. |
| Feeding mode | Belts feeding with pressure stripping function. |
| Roller Gap | Digital program control |
| Power supply | 110,220V(50-60 Hz) |
| Power | 1.5 kW |
| Compressed air connection | 0.5-08 MPa |
| Weight | 300 kg |
| Dimension | 1400*720*1460 mm |
| Remarks | Custom options by sending samples |
Powered by hybrid servo motor, the productivity is maximized to 1000 pcs./h
Uni-V jacket stripping blades (optional radius blades for special jacket material).

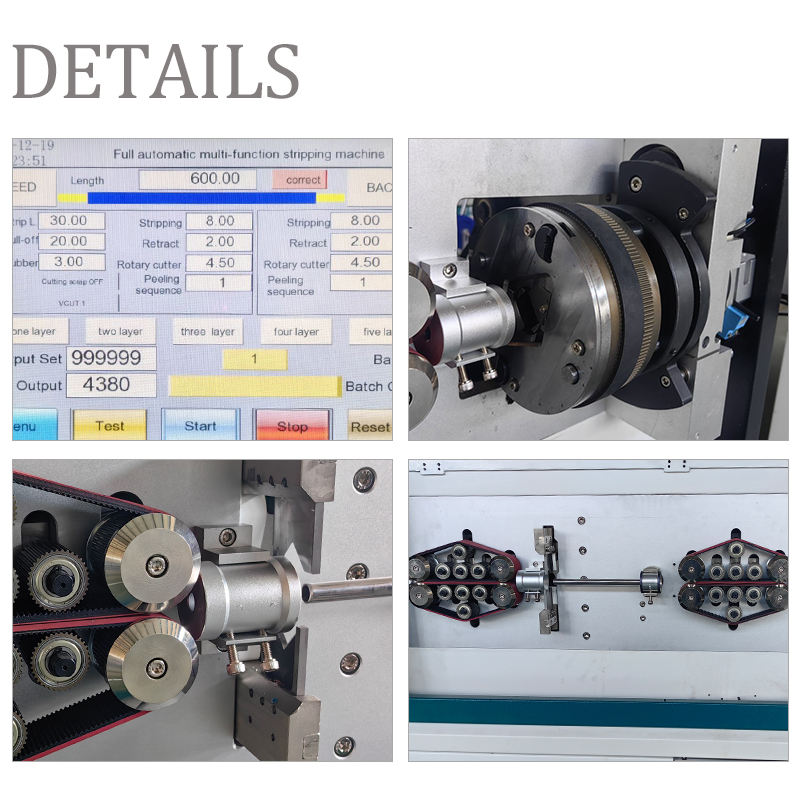

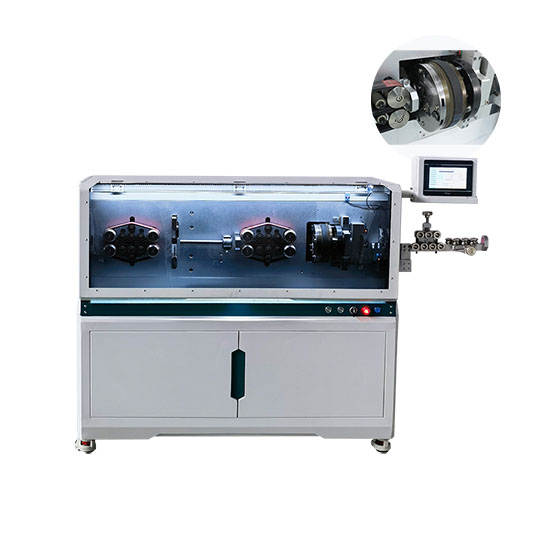

This machine uses a rotary blades, which can cut and strip all cables of different specifications without changing the blade. Can store 100 sets of processing parameters and recipes
