MN-X630 Electric Automatic Coaxial Cable Cutting & Stripping Machine 1.0-6mm Cable Manufacturing Equipment

Cut & Strip

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

Automatic Coaxial Cable Cutting & Stripping Machine (1.0 - 6.0 mm)
Model:MN-X630

ENQUIRE NOW!

Model:MN-X630
Cable OD: 1.0 - 6.0 mm (optional blades for 2-8.5 mm)
Cutting length: 50 - 9999 mm
Cutting depth increment: 0.01 mm
Max. strip layers: 6

Specifications

Feature

Download

Metric

Imperial

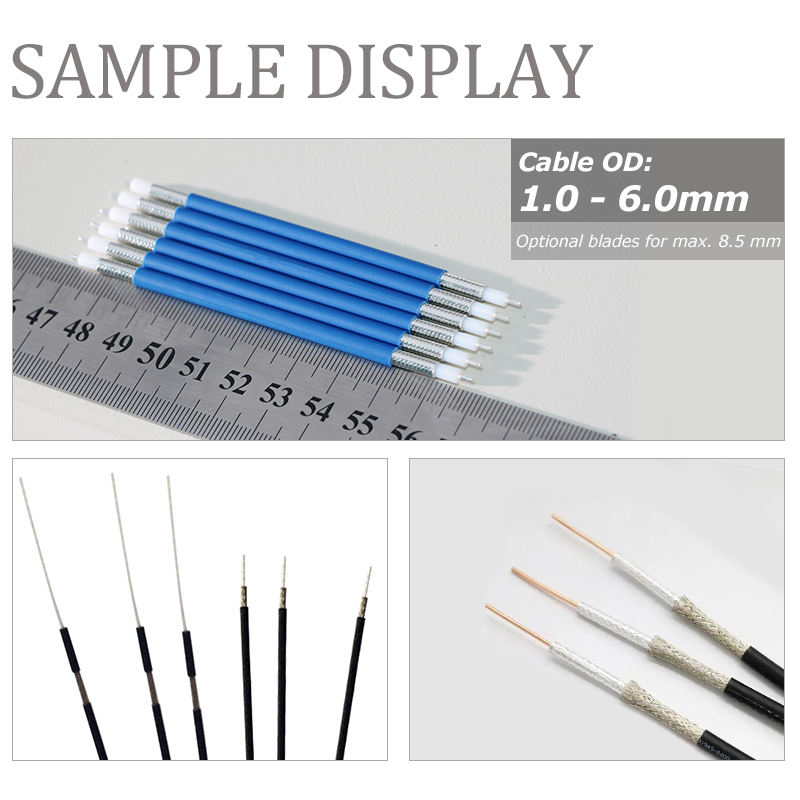

Cable OD 1.0-6.0 mm

Cutting Length 50-9999mm

Cutting depth increment 0.01 mm

Max. strip layers 6

Stripping Length head 0-45mm

Stripping Length tail: 0-100mm

Productivity 350 - 900 pcs./h

Power 800w

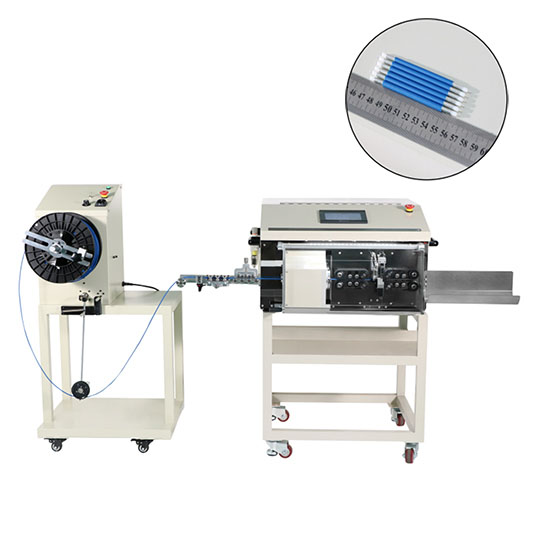

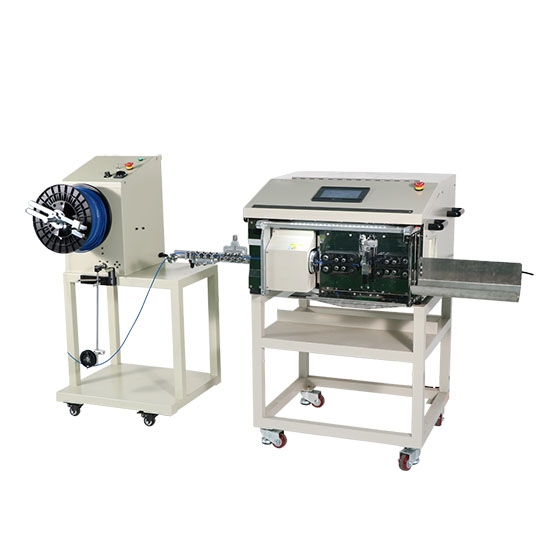

● The MN-X630 is a fully automatic multi-step coaxial cable cut & strip machine for industrial coaxial cable and single conductor wire at range of 1.0 - 6.0 mm diameter (upgrade option for max. 8.5 mm diameter).

● Max. 6 layer stripping capability.

● 0.01 mm precise cutting depth increment.

● Universal blades set for wide range of cables.

● Memory capacity of 100 programs with touch screen setup.
