Cut & Strip
Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.
Home Porducts Cut & Strip
Products
Our products have passed 3C certification, with reliable quality and durability.
< >

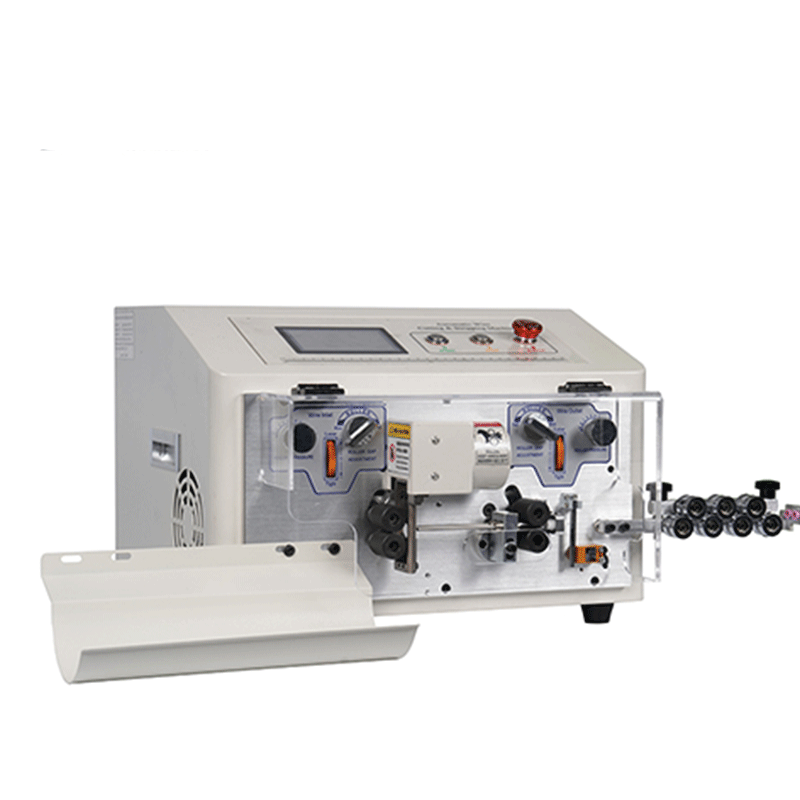

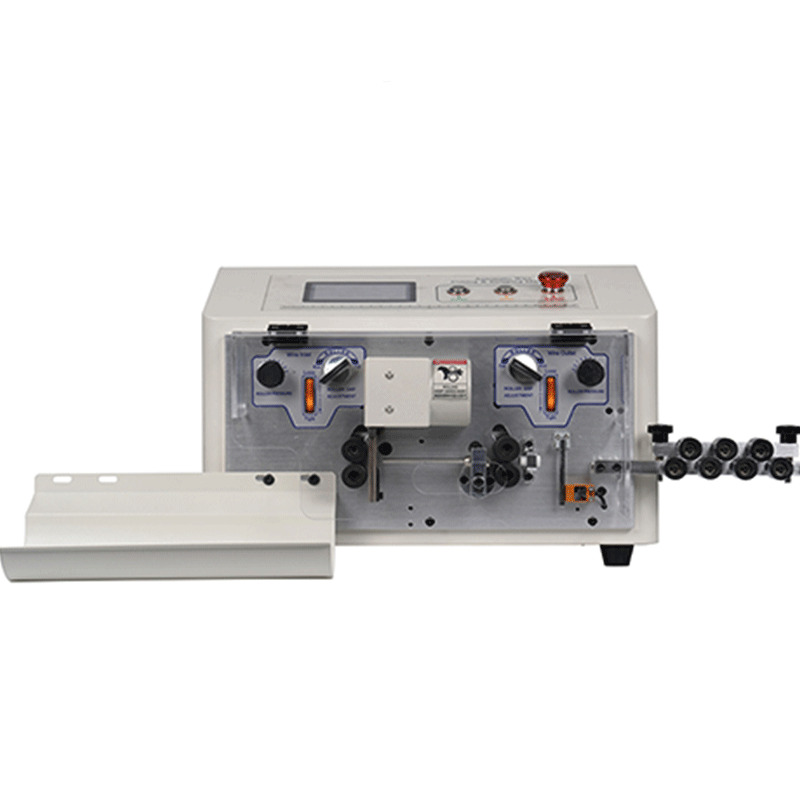

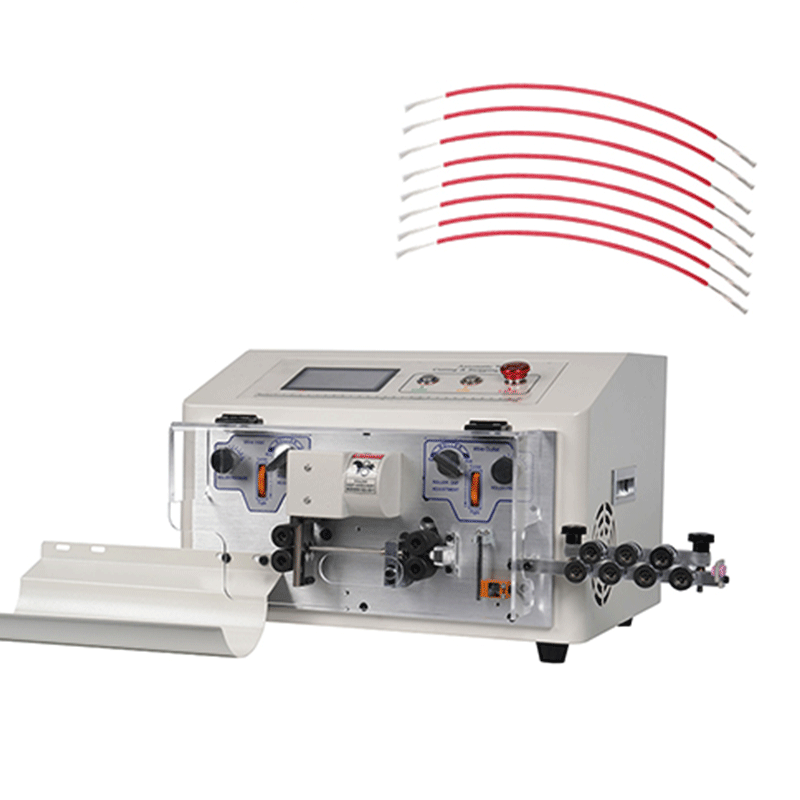

Wire Cutting Stripping Machine with Touch Screen(0.1-4.5mm²)
Model:MN-S185
ENQUIRE NOW!
1. Model: MN-S185

2. Stripping length:head 0-35mm, end 0-15mm

3. Intermediate stripping: eleven place strip

4. Wire cross section:0.1-4.5mm2

5. Suitable wire stripping: PVC/PTFE/silicone cable/fiber glass wire
Specifications
Feature
Download
Metric
Imperial
Model  MN-S200
Cutting length  1 - 9999 mm
Cutting length tolerance  < 0.002 * L
Stripping length (side I) 0 - 35 mm
Stripping length (side II) 0 - 15 mm
Maximum guide tube diameter  6 mm
Blade material  Tungsten steel
Power 200W
Weight  31 kg

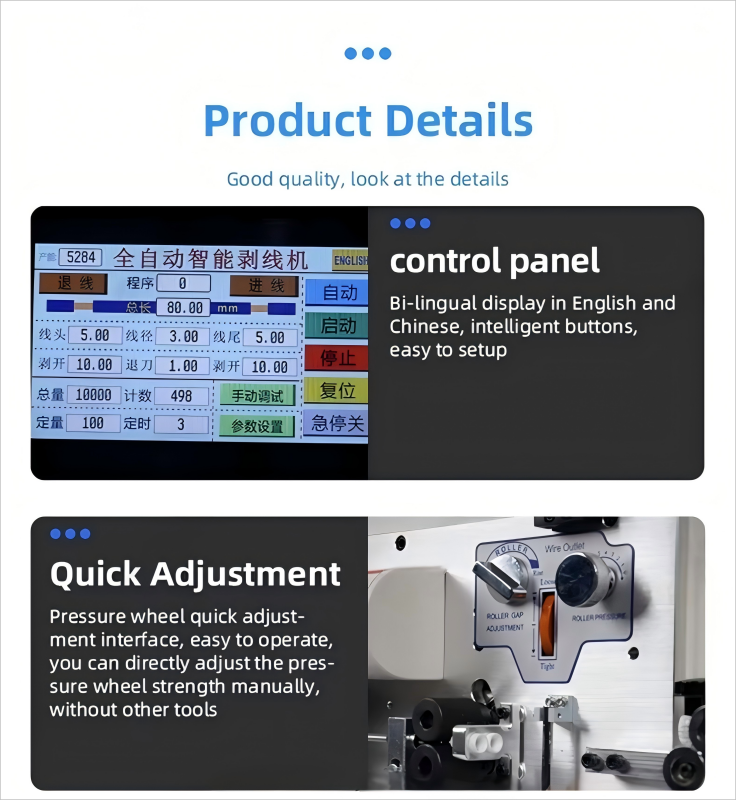

    Touch Screen display, support Chinese and English, all buttons and processing program desiged based on automatic computer programming,easy to operate.

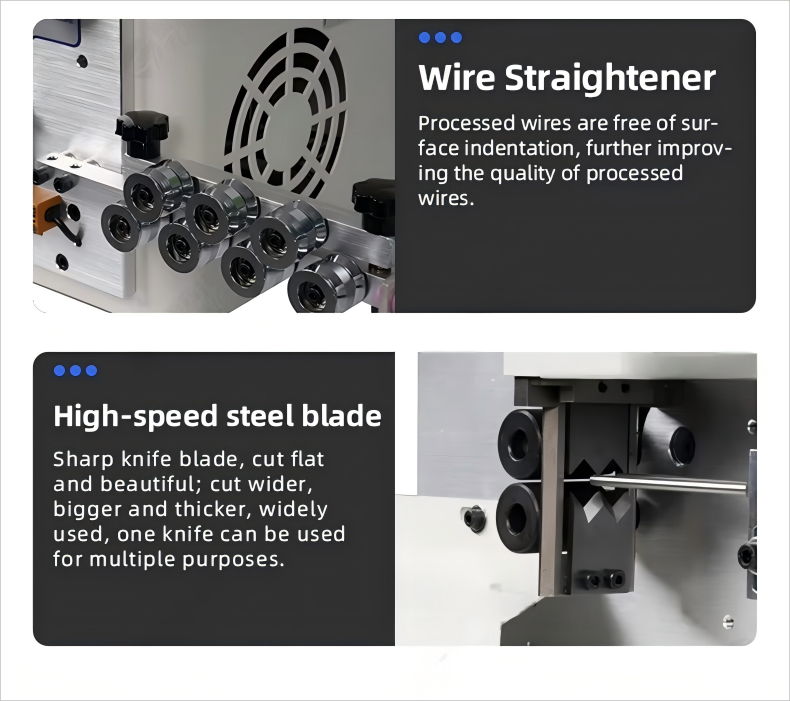

    Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.

    High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.

    The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.

    Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longerservice life.

    Intelligent control system,it can store hundreds of parameter setting.

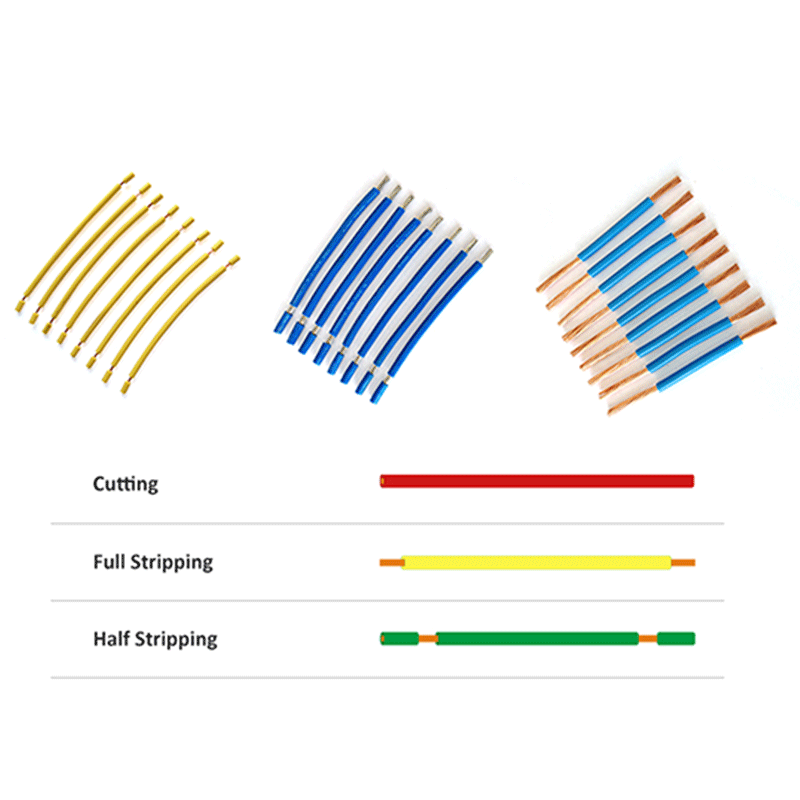

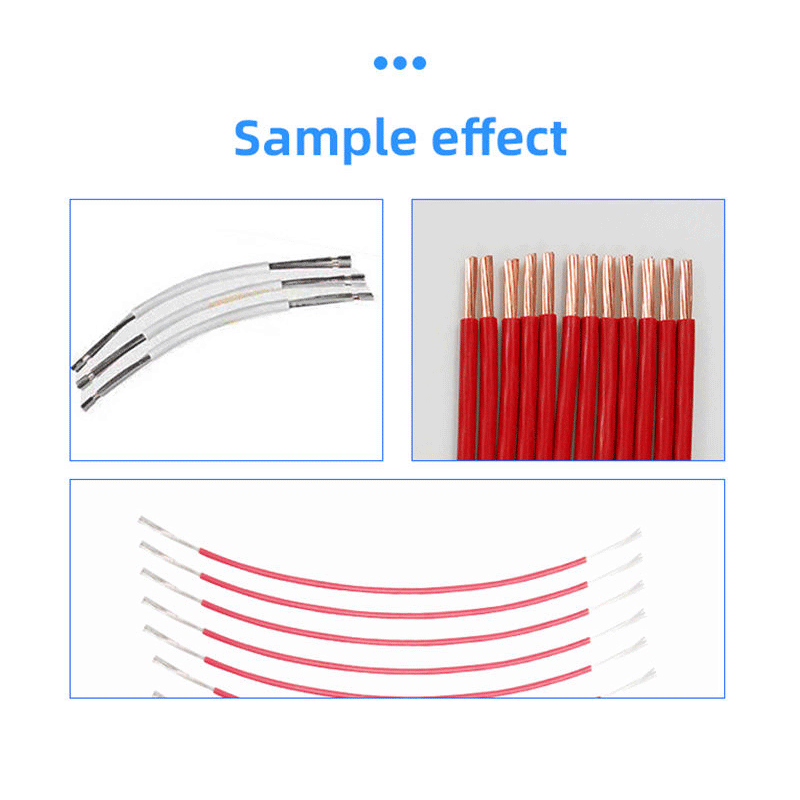

    Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.

    Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
