Wire stripping machine is a specialized device used to remove the insulation layer from wires and cables, and is widely used in the power, communications, and new energy industries. Its core function is to precisely strip the insulation material using cutting tools while protecting the conductor from damage.
Home Porducts Strip
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

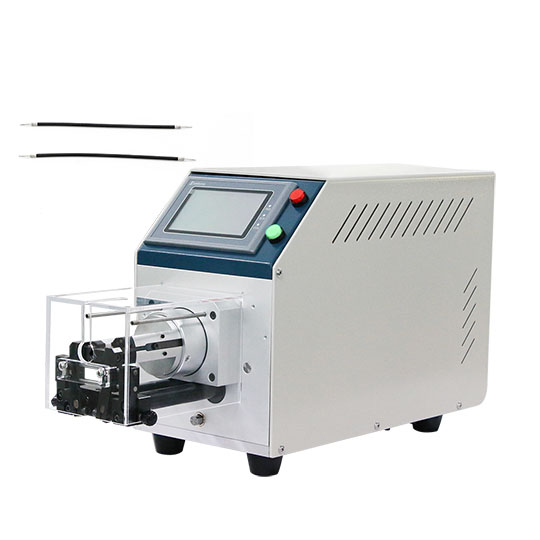

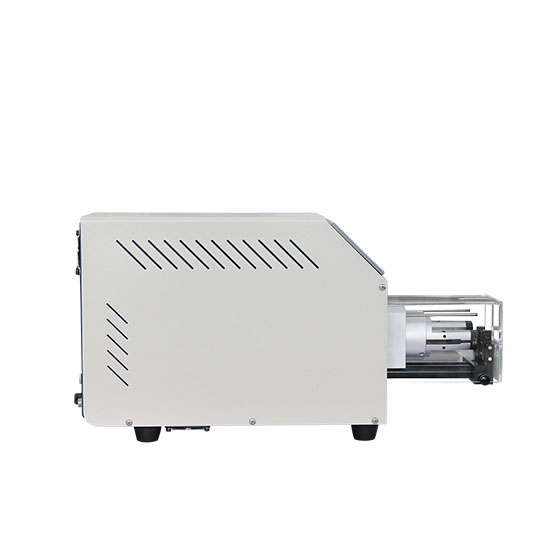

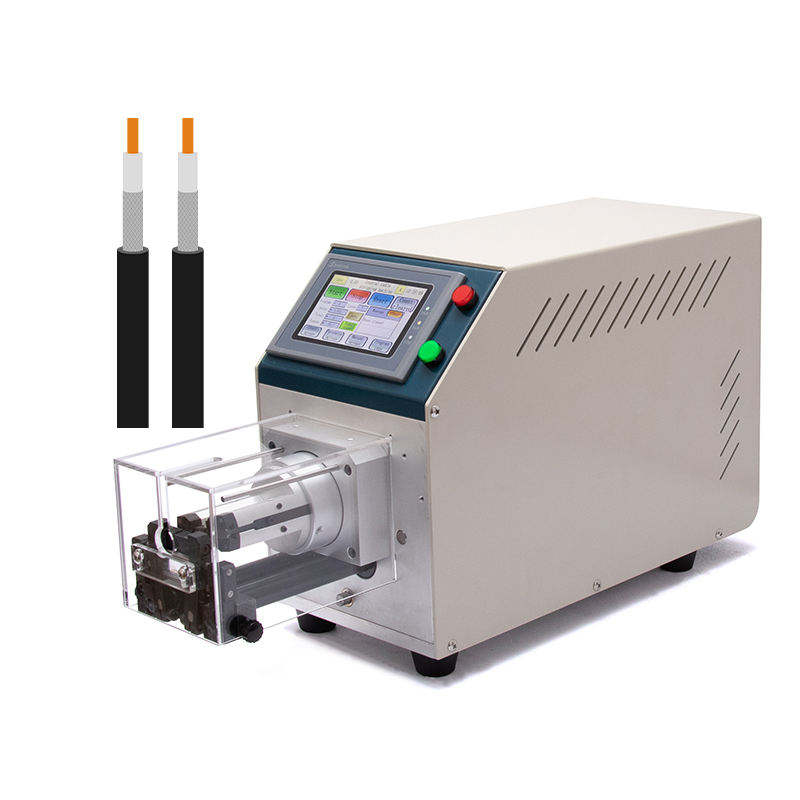

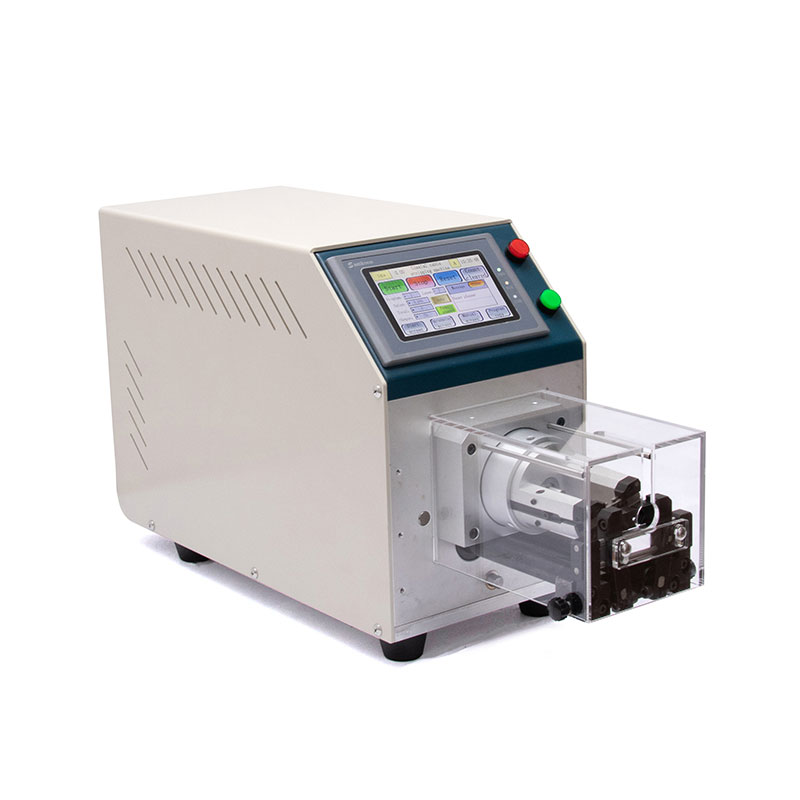

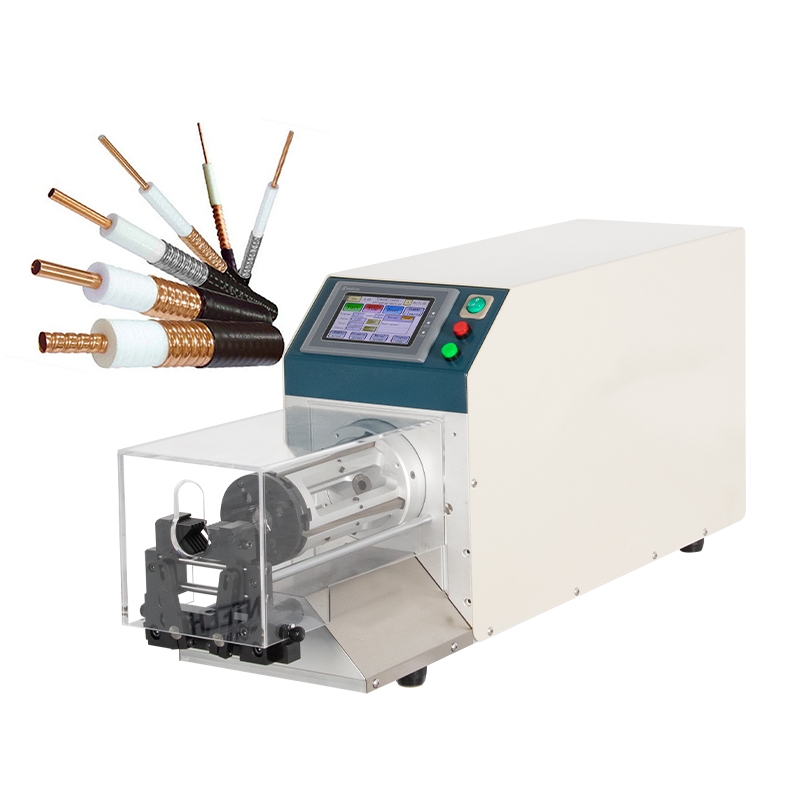

Coaxial Cable Stripping Machine (OD 1.13-6.99)
Model:MN-X605
ENQUIRE NOW!
Model:MN-X605
Max. stripping length:56mm

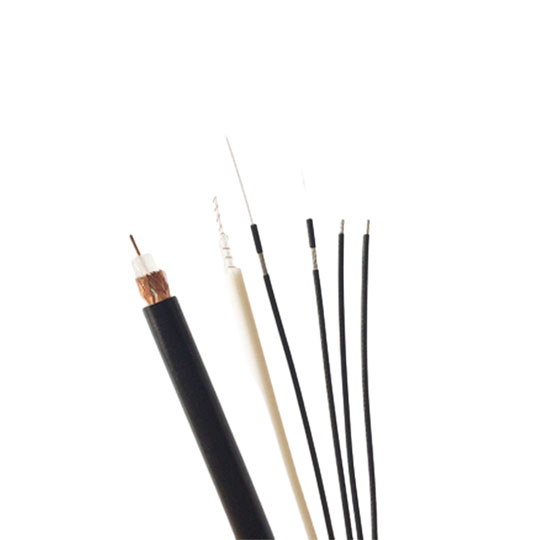

Wire diameter: 0.8-6.99mm

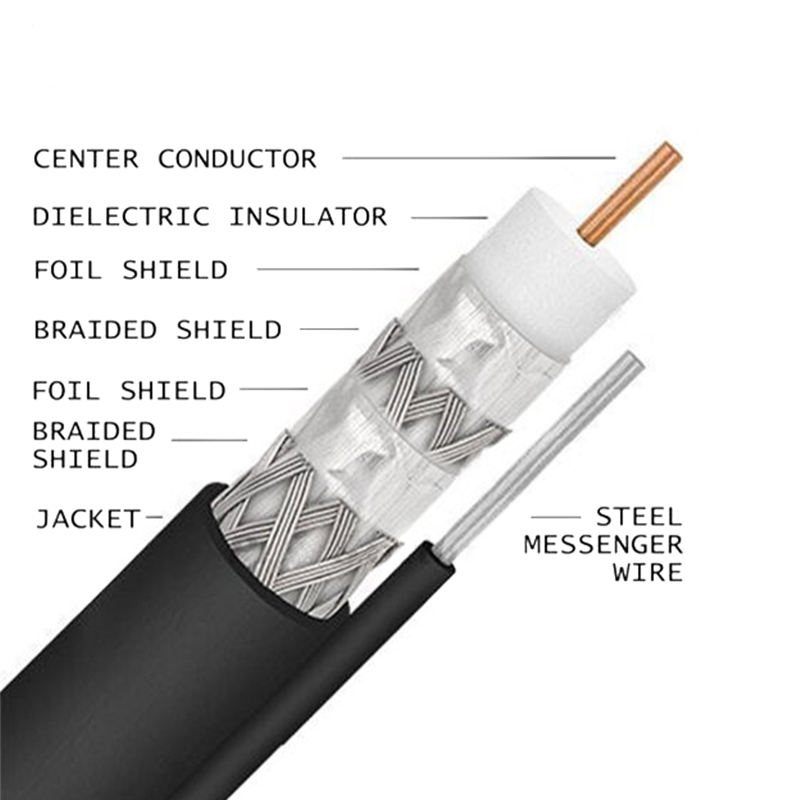

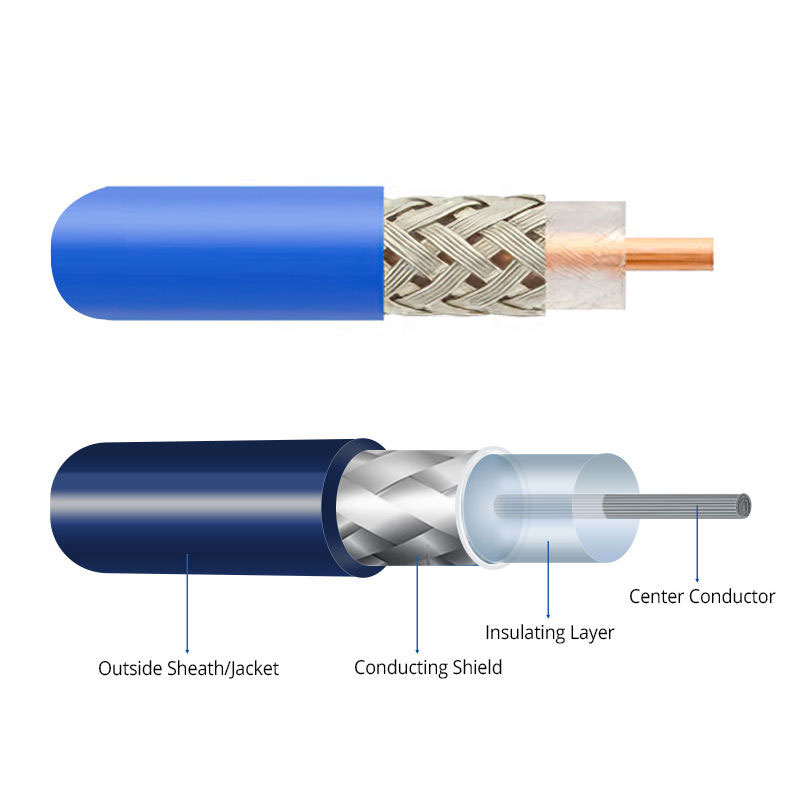

Max. stripping layer:9 layers
Specifications
Video
Download
Metric
Imperial
Model MN-X605
Max. stripping length 56 mm
Wire diameter 1.13-6.99mm
Max. stripping layer 9 layers
Productivity 750-1150pcs/h
Diameter increments 0.01 mm
Stripping mode Rotary stripping
Display Touch Screen
Dimension 600*185*280mm
Operating Mode Start Switch/Foot Pedal
Feature

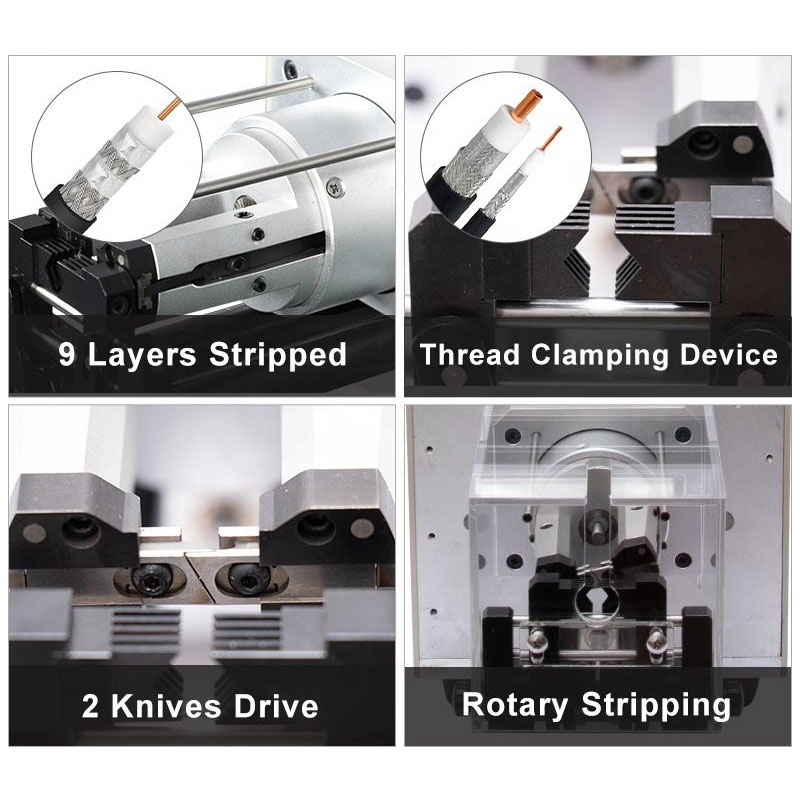

1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.

2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.

3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.

4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.

5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
