| Model | MN-X615 |
| Wire diameter | 0.5-7mm |
| Stripping length | 0-45mm |
| Stripping length setting unit | 0.01 mm |
| Blade set | 2pcs |
| Storage capacity | 99 Programs |
| Dimension | 495*138*260mm |
| Productivty | 750-1150pcs/hour |
| Power supply | AC220V/110V 50/60HZ |
| Power | 300W |
| Weight | 14KGS |

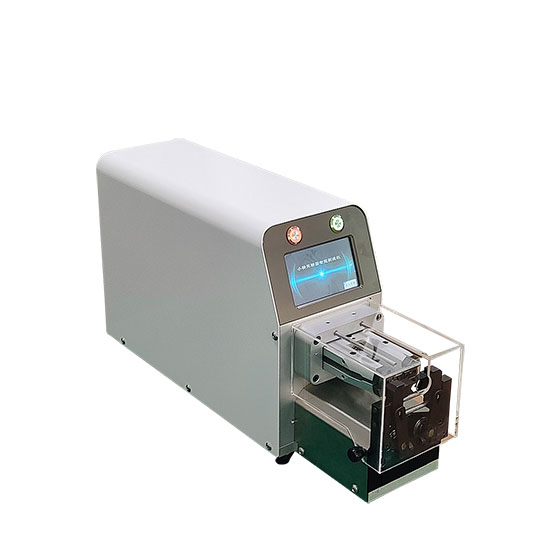

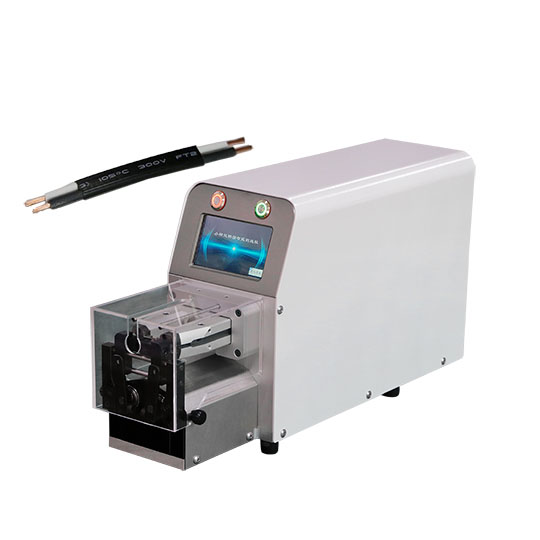

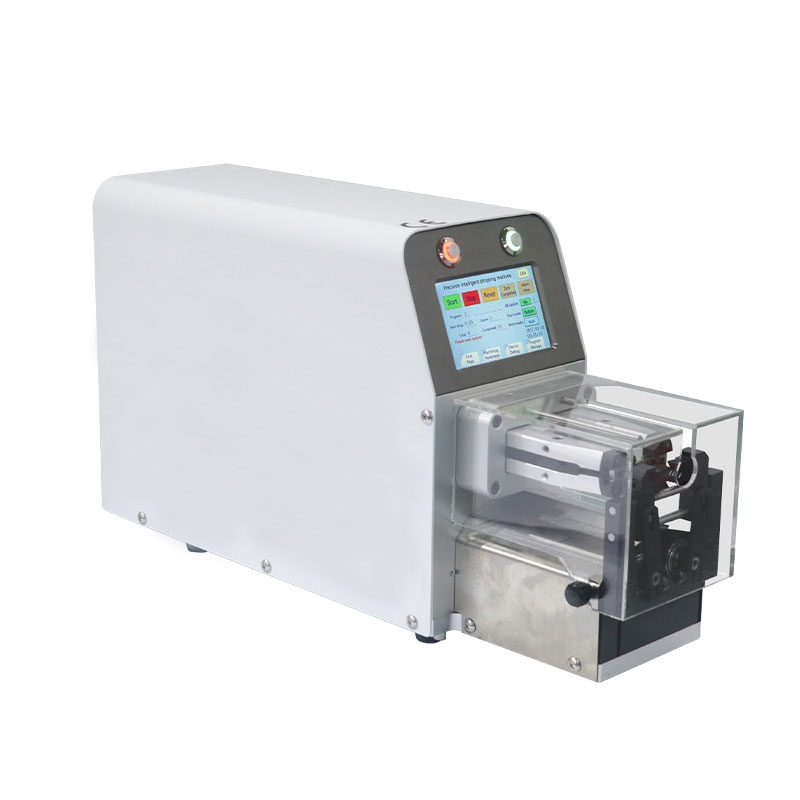

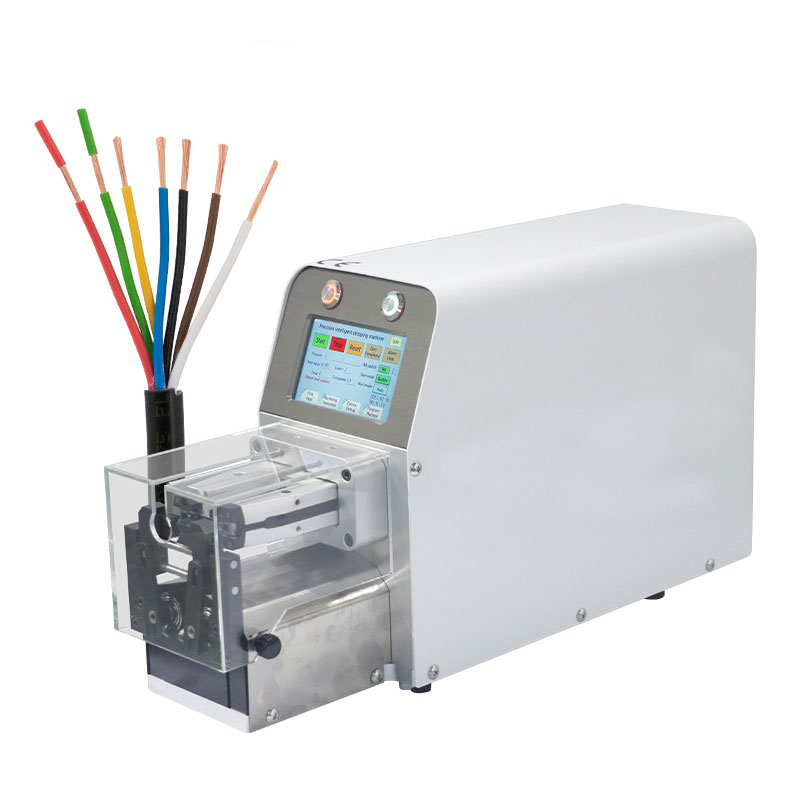

This machine is a fully programmable wire stripping machine designed for precise peeling of multi-core sheathed cables and individual core wires in a programmed sequence.
Key Features:
1. Supports multi-wire diameter programming according to different production requirements, enabling flexible cycle processing.
2. Multiple processing programs can be stored, allowing fast switching for small-batch and diversified orders.
3. Ingeniously designed safety cover ensures safe operation without compromising efficiency.
4. Equipped with an independent waste collection system to gather stripped wire residues and keep the machine clean and organized.

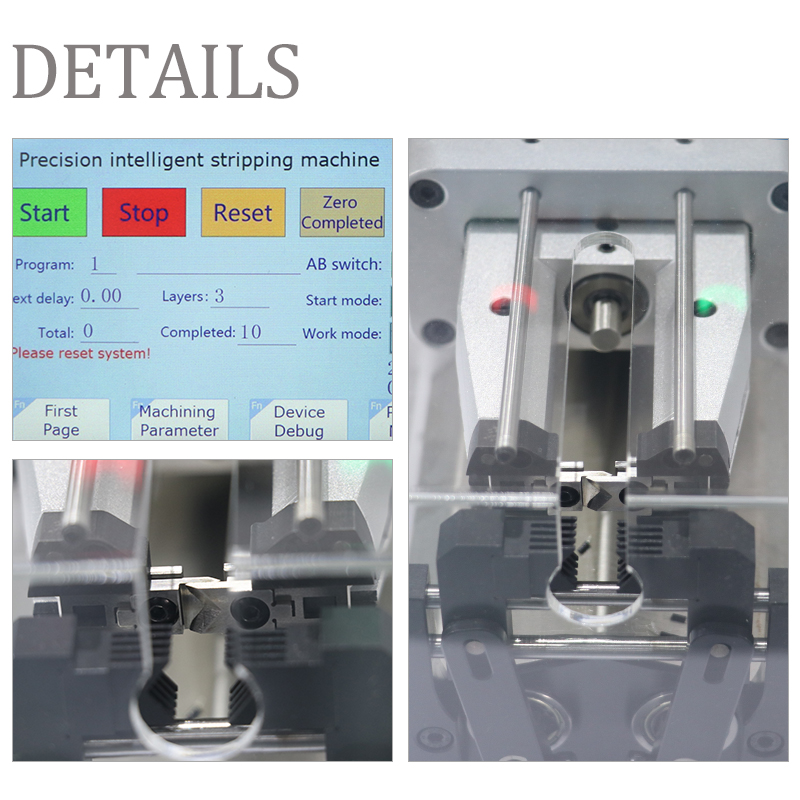

5. Intuitive graphical HMI interface provides user-friendly, fast, and convenient operation.
6. Quick process switching via barcode/scanning gun, significantly improving workflow efficiency.
