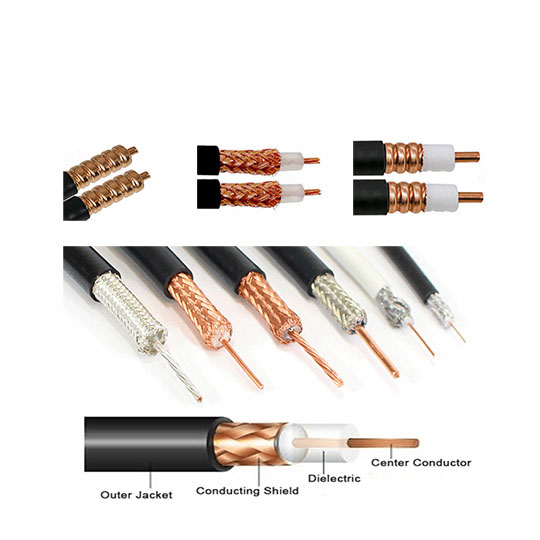

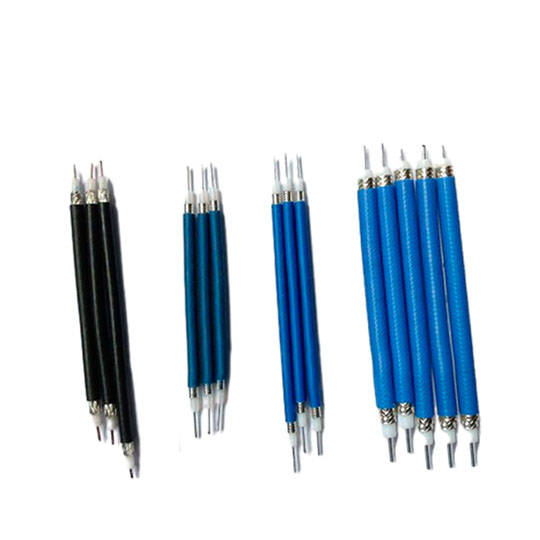

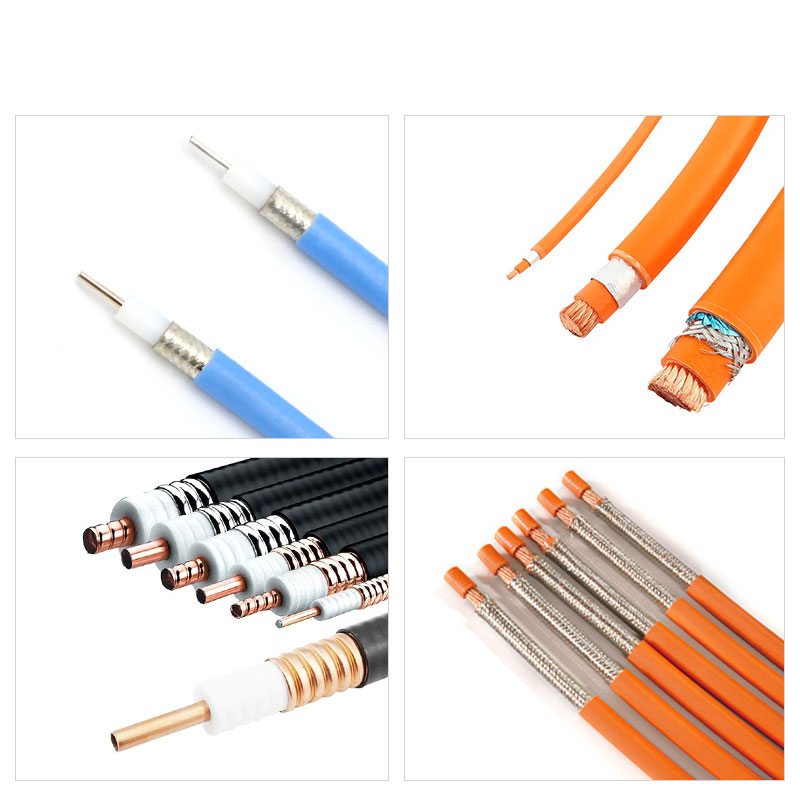

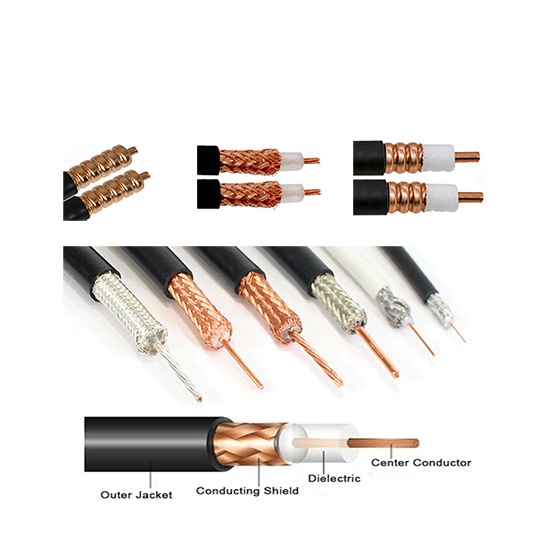

| Applicable wire | Coaxial cable |
| Display interface | Chinese LCD 95mm*50mm |
| Working power supply | AC220V/110V 50/60HZ |
| Power | 800W |
| Stripping length | 3mm-200mm |
| Peeling length setting unit | 0.01mm |
| Weight | 65kg |
| Cutting wire diameter range | Ø3-Ø23mm (Ø-diameter) |
| Drive mode | DC servo motor/TBI ball screw |
| Cutting depth setting unit | 0.01mm |
| Maximum peeling layers | 9 layers |
| Tool material | imported tungsten steel |
| Wire guard material | ASSAB high speed steel |
| Working environment | -5-45 degrees, dry and vibration-free work surface |
| Storage capacity | 99 kinds of processing parameter data [can record 99 kinds (specifically, 100 kinds) of parameter data with different settings] |
| Production efficiency | 300-700pcs/h |
| Dimensions | 1000*225*400mm |
| Additional applicable wire thickness | ST-2520>ST-6806>ST4806 |

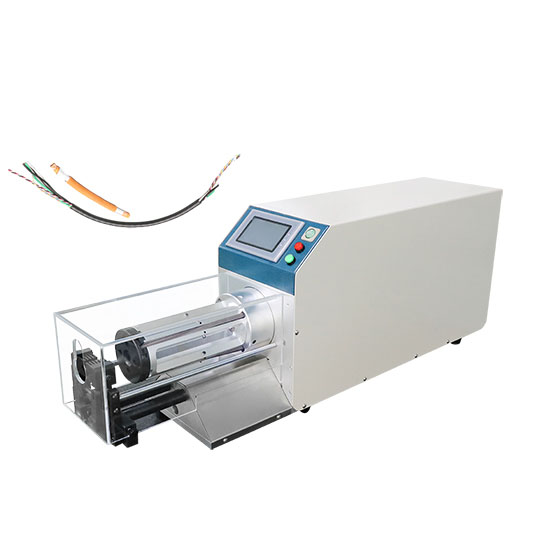

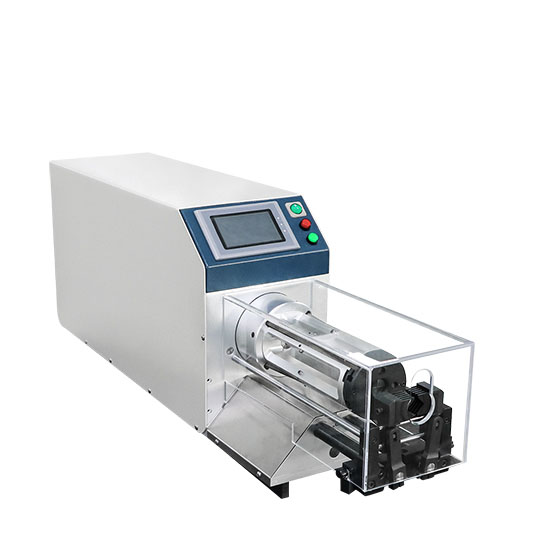

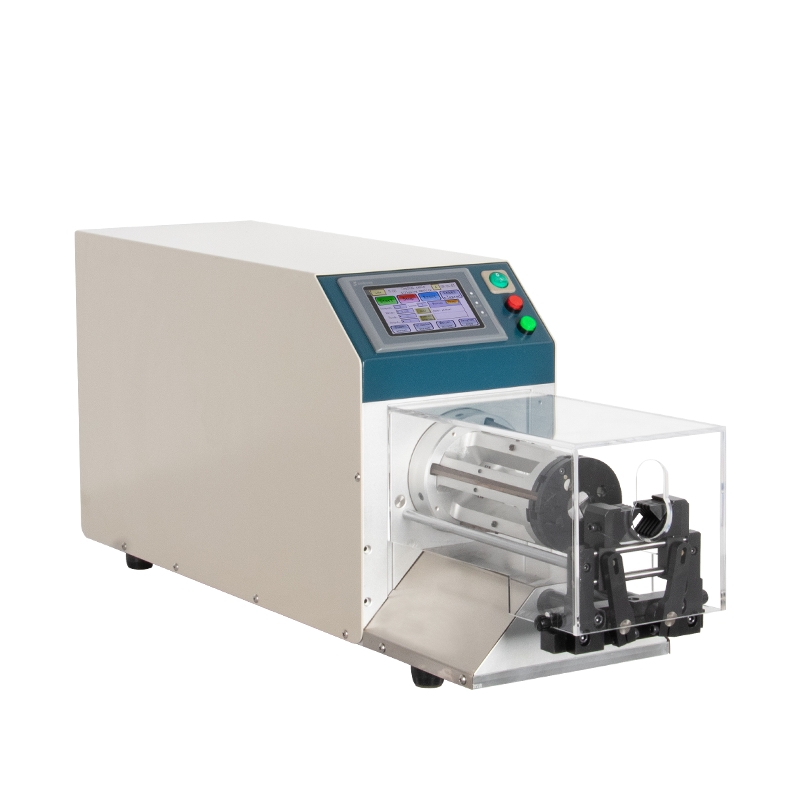

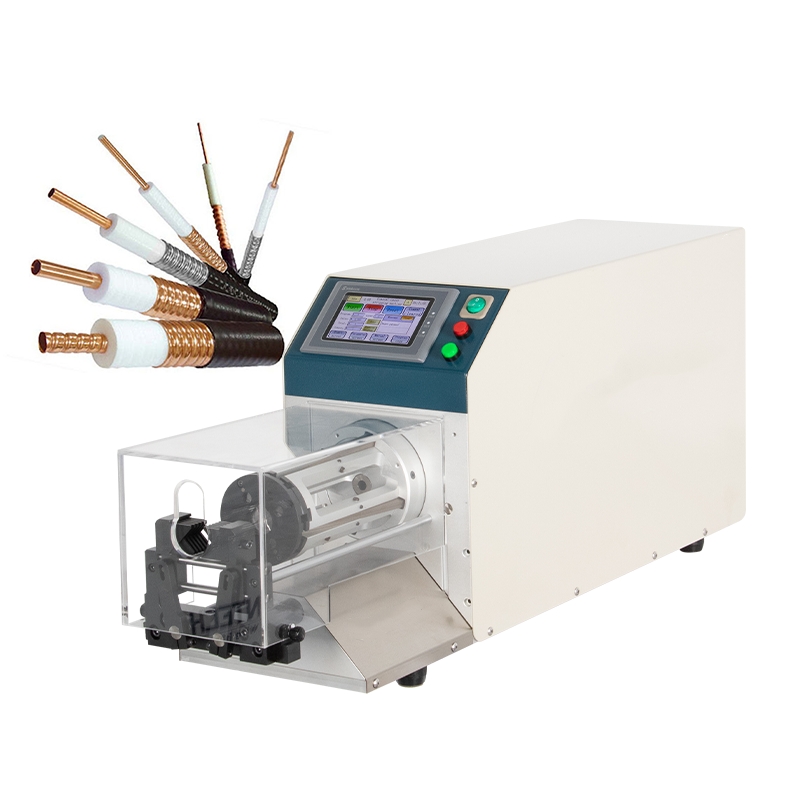

1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.
2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.
3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.
4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.
5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
