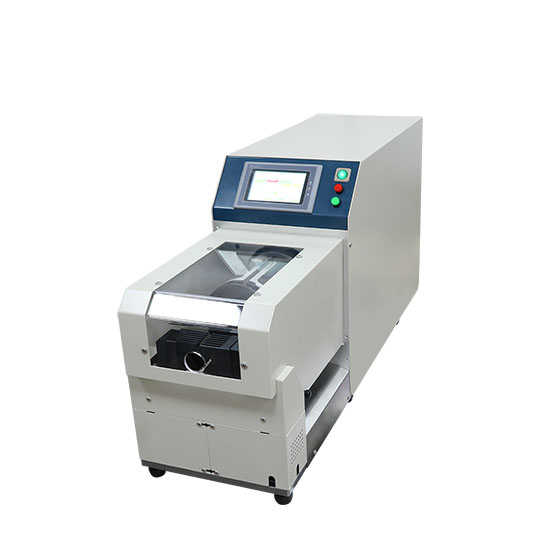

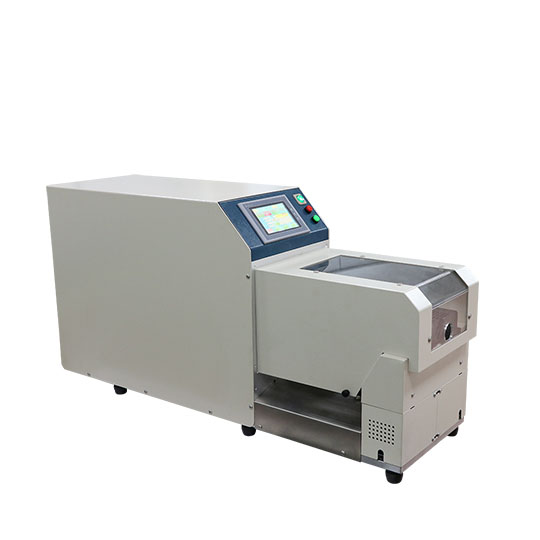

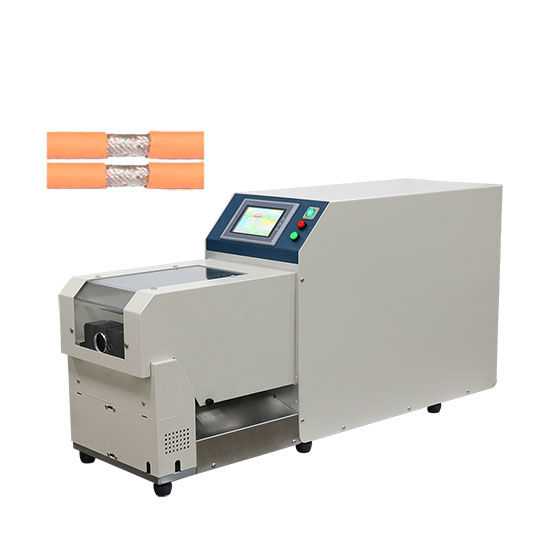

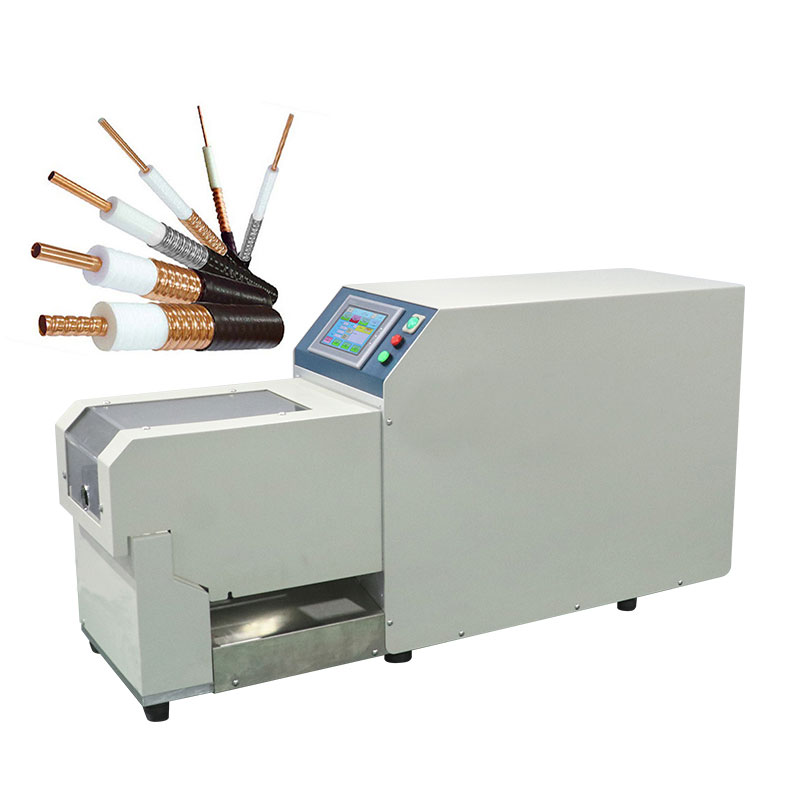

| Model | MN-X3515 |

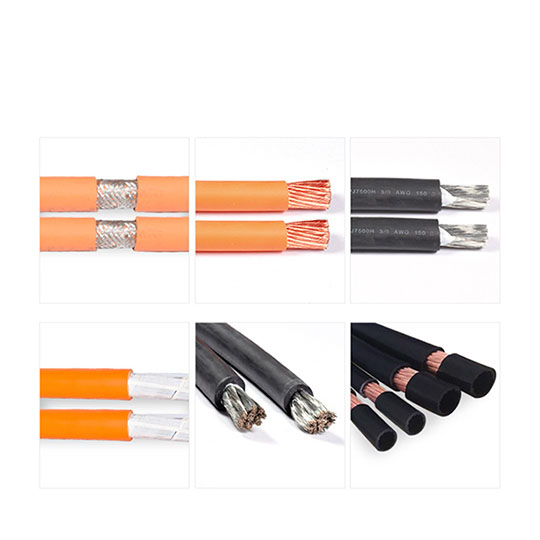

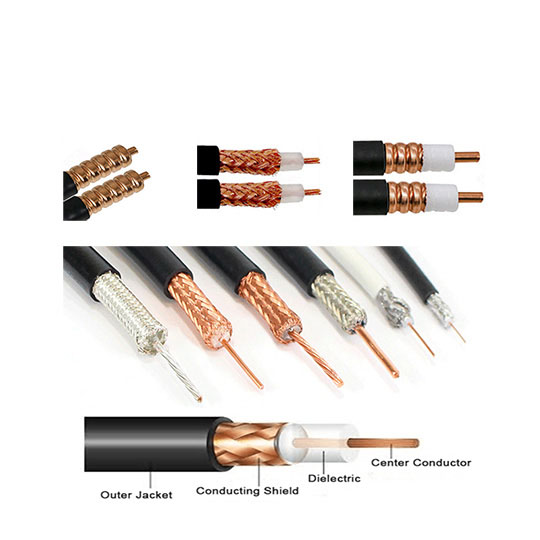

| Function | Coaxial cable, multstep stripping, rotay stripping, full stripping, partial stripping. |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Cable diameter | 3-30 mm |
| Stripping length | 0.1-200 mm |
| Cutting depth increment | 0.01mm |
| Blades | 4 pcs |
| Stripping steps | 9 |
| Centralizer | Yes |
| Datalibrary | Yes |
| OEM | Yes |
| Display | 4.3" color touchscreen, English/Chinese [other languages on request] |
| Rated power | 800W |
| Power supply | AC 110/220V±10%, 50/60 Hz |
| Dimensions | L1000xW335×H500 mm |
| Weight | 145 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.
2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.
3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.
4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.
5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
