| Wire OD | 1.5-9.5 mm |
| Incision increment | 0.01 mm |
| Stripping capability | 9 layers |
| Stripping length | 0.4-65 mm |
| Stripping length increment | 0.01 mm |
| Blade quantity | 4 pcs. |
| Productivity | 700-1200 pcs./h (depending on wire type) |
| Display mode | Touchscreen |
| Program storage capacity | 100 programs(editable program name /quick copy button) |
| Power | 400 W |
| Power supply | 220/110V(50/60 Hz) |
| Power cord type | Different types for different standards |
| Weight | 28 kg |
| Dimension | 600*185*280 mm |

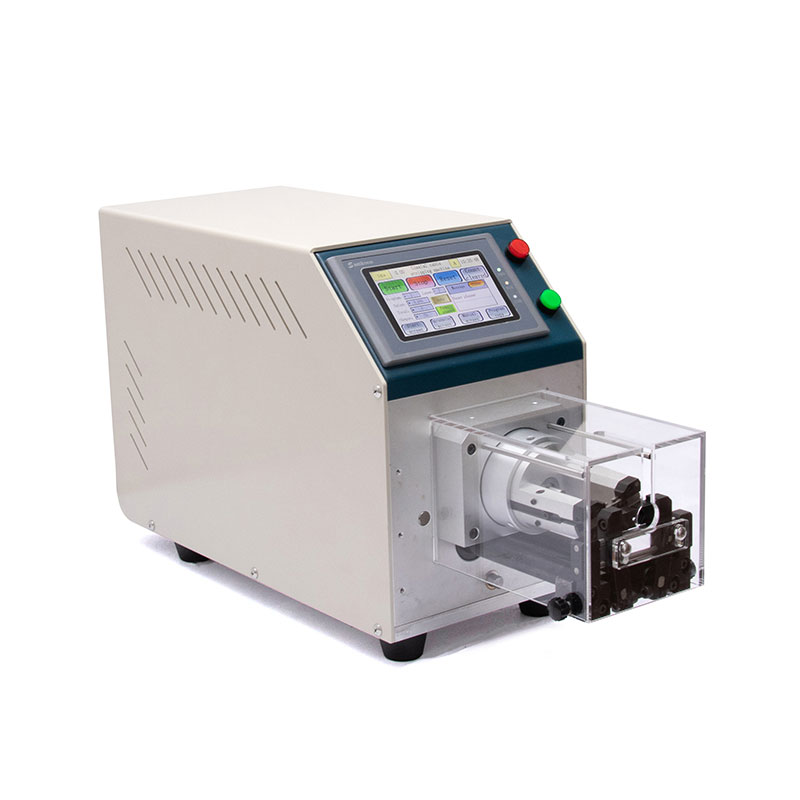

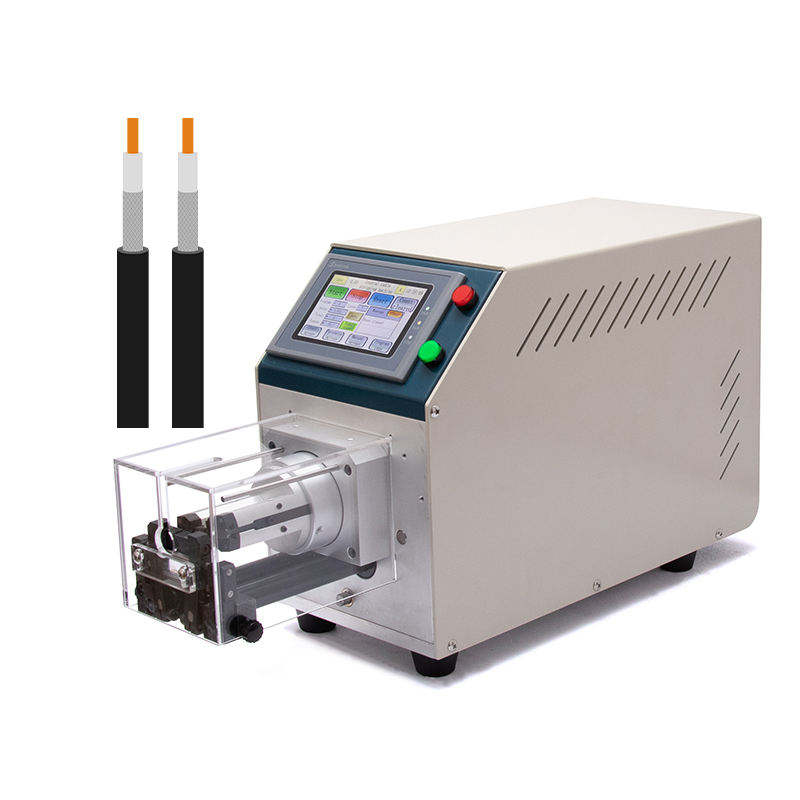

1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.

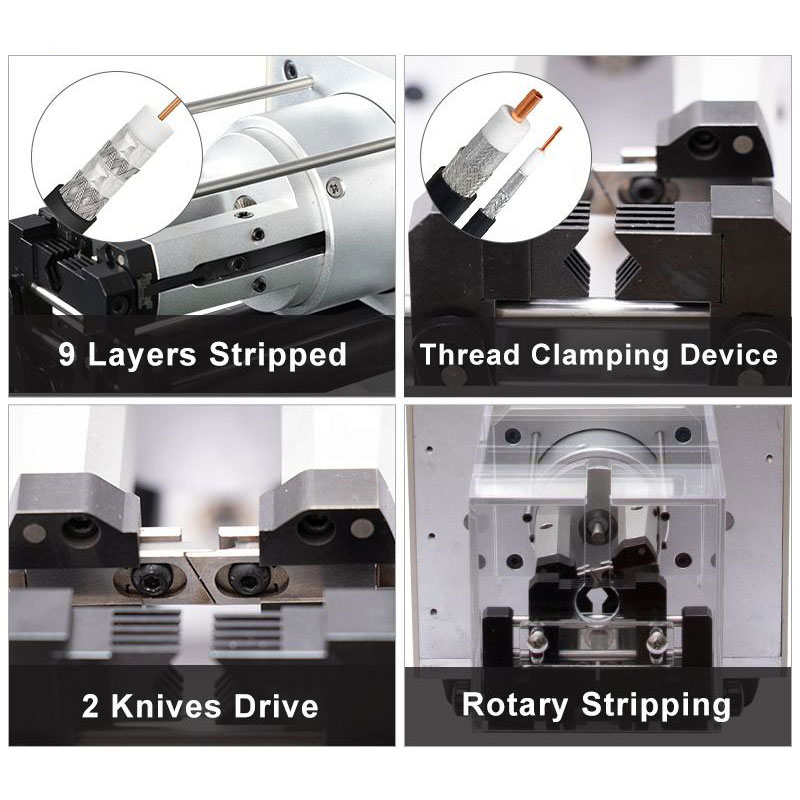

2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.
3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.
4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.
5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
