Wire stripping machine is a specialized device used to remove the insulation layer from wires and cables, and is widely used in the power, communications, and new energy industries. Its core function is to precisely strip the insulation material using cutting tools while protecting the conductor from damage.
Home Porducts Strip
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

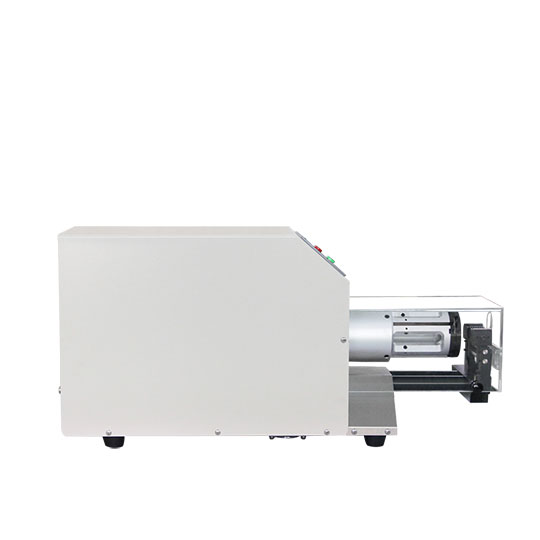

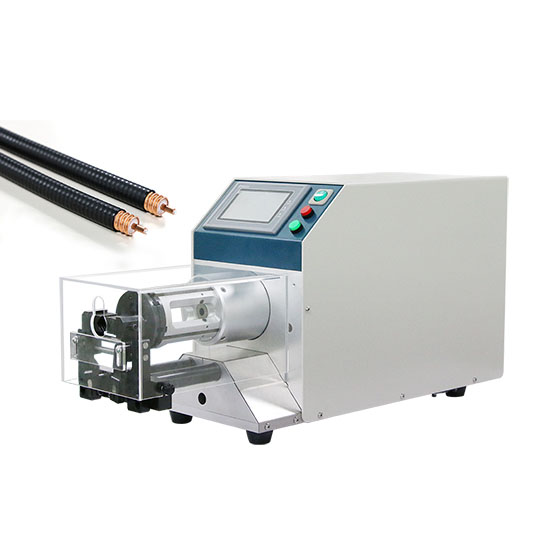

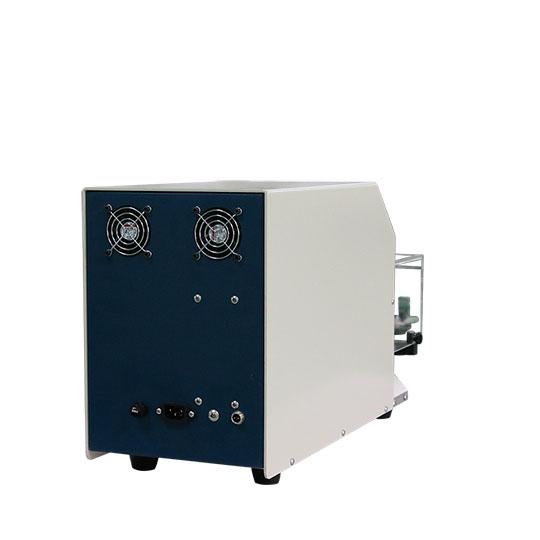

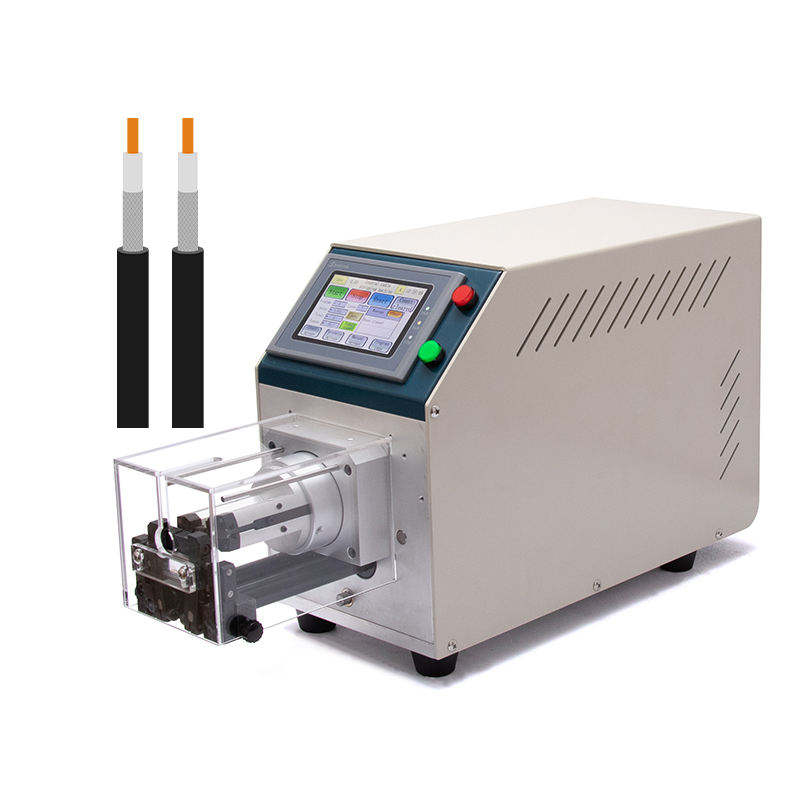

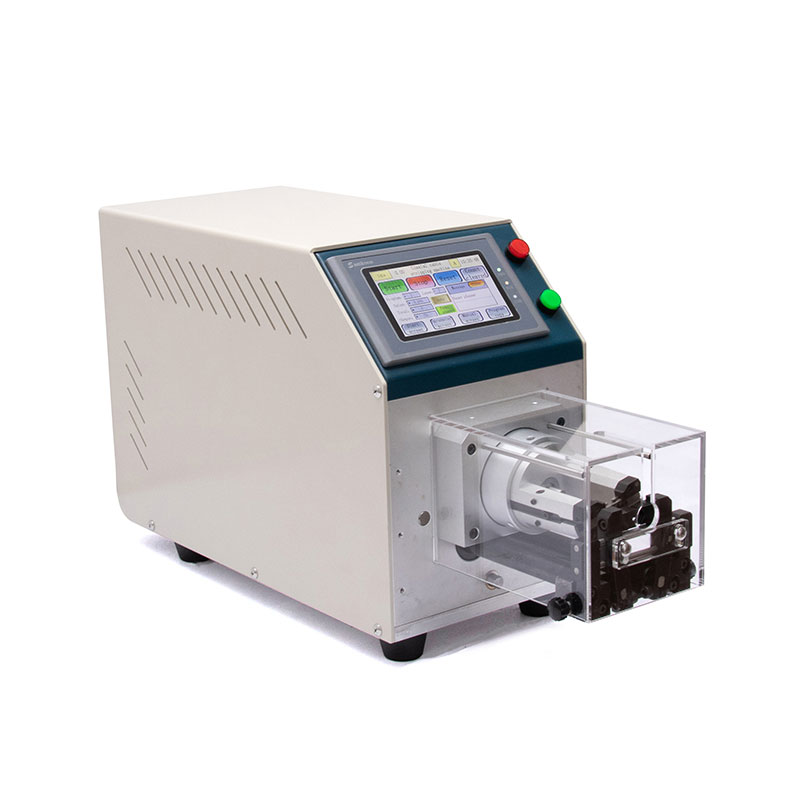

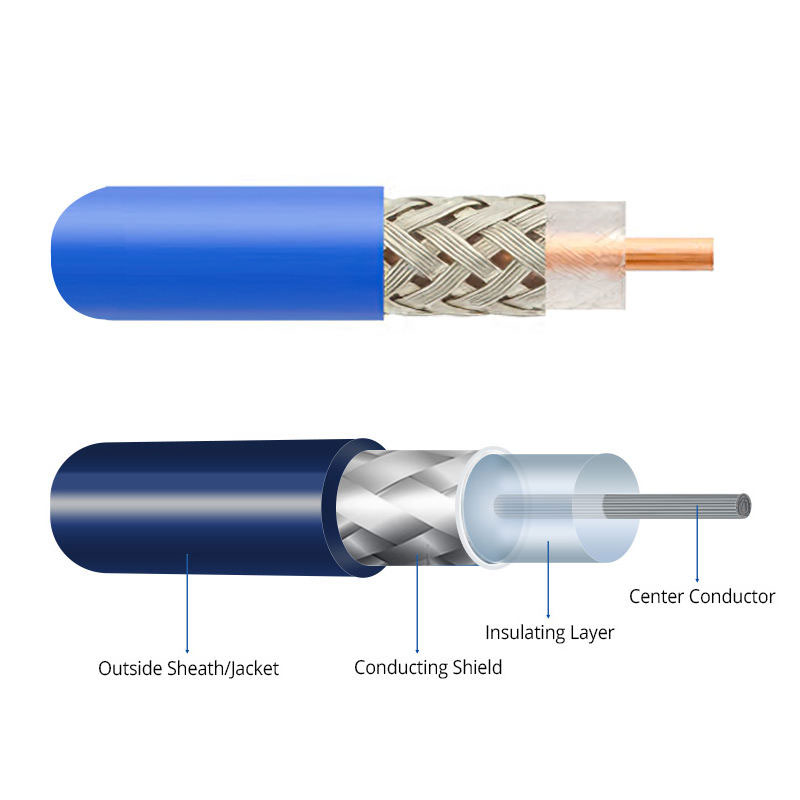

Coaxial Cable Stripping Machine (OD 1.5 -18 mm)
Model:MN-X610
ENQUIRE NOW!
Model:MN-X610
Max. stripping length:90mm
Wire diameter: 1.5 - 18 mm
Max. stripping layer:9 layers
Specifications
Video
Download
Metric
Imperial
Model MN-X610
Max. stripping length 90 mm
Diameter increments 0.01 mm
Wire diameter 1.5 - 18 mm
Max. stripping layer 9 layers
Display mode Touch screen
Productivity 400-800pcs/h
Blade quantity 4 pcs
Power 600W
Weight 40 kg
Dimension 720×230×350mm
Feature

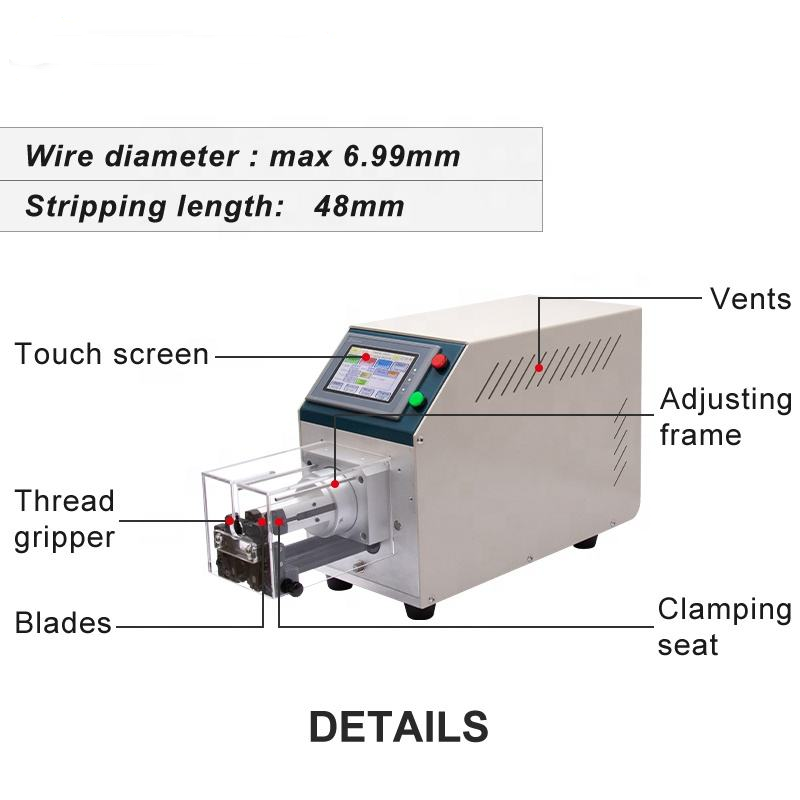

1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.

2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.

3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.

4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.

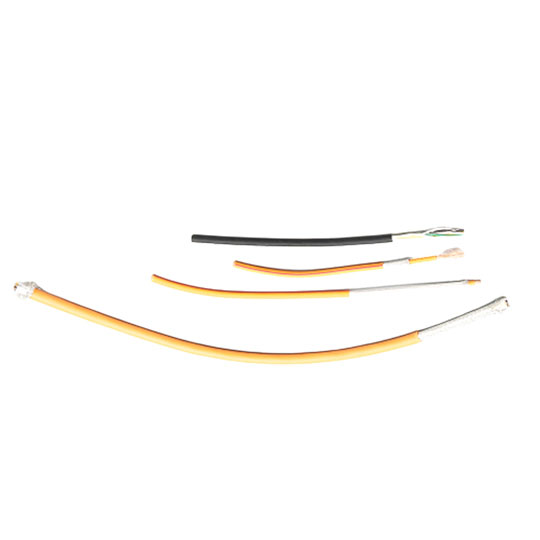

5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
