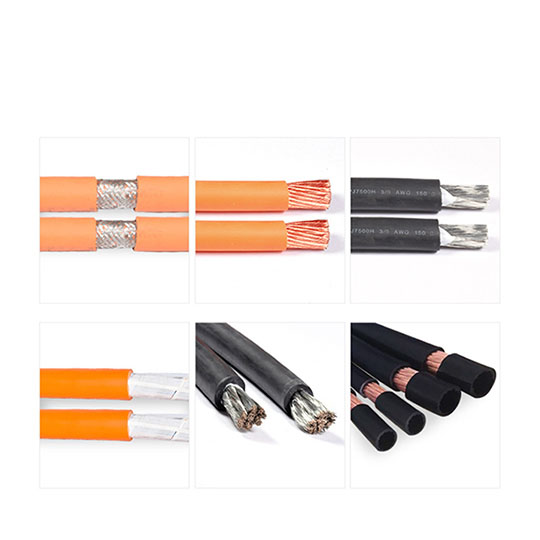

| Function | EV charging cable, multistep stripping, rotary stripping, full stripping, partial stripping |
| Cable diameter | 6-43 mm |
| Stripping length | 0.1-200 mm |
| Cutting depth increment | 0.01 mm |
| Blades | 4 pcs |
| Stripping steps | 9 |
| Product rate | 200 - 500 pcs/h |
| Centralizer | Yes |
| Data library | Yes |
| OEM | Yes |
| Display | 4.3" color touchscreen, English / Chinese [other languages on request] |
| Rated power | 800 W |
| Power supply | AC 110 / 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 1160 x W 285 x H 550 mm |
| Weight | 150 KG |
1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.
2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.
3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.
4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.
5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
