| Name | Bulk Terminal Machine with Vibrating Tray |
| Device Model | MN-CP890 |
| Overall Dimensions | 450*850*1480MM |
| Production Efficiency | 3,000/hr |
| Crimping Force | 60KN |
| Product Weight | 165 KG |
| Air Pressure | 0.6 - 0.8 MPA |
| Crimping Stroke | 40 MM |
| Motor Power | 1.8 KW |
| Power Supply | 220V/50HZ |
| Crimping Range | 1 - 25 mm2 |

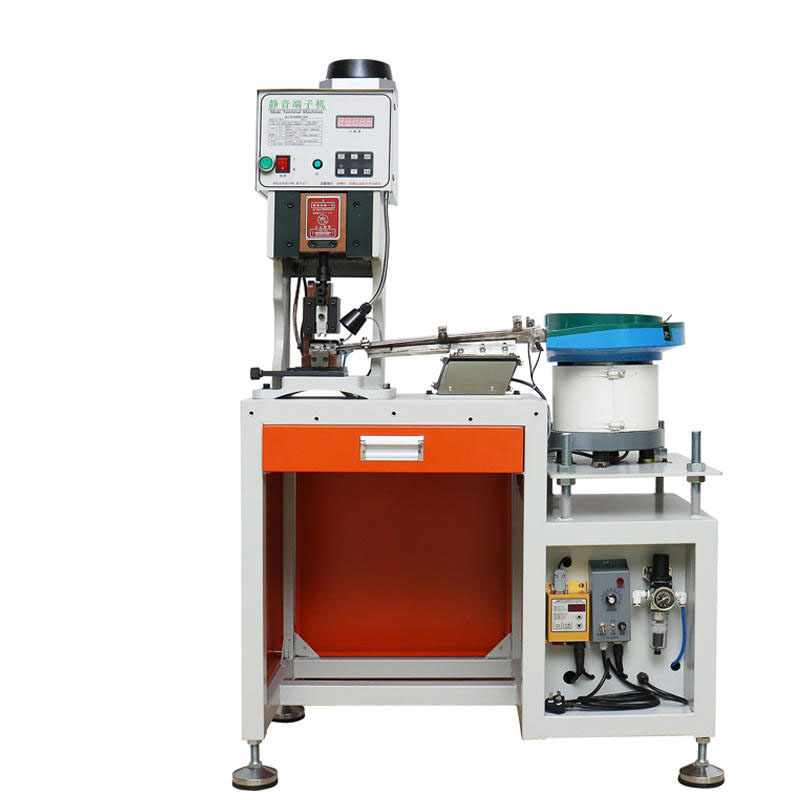

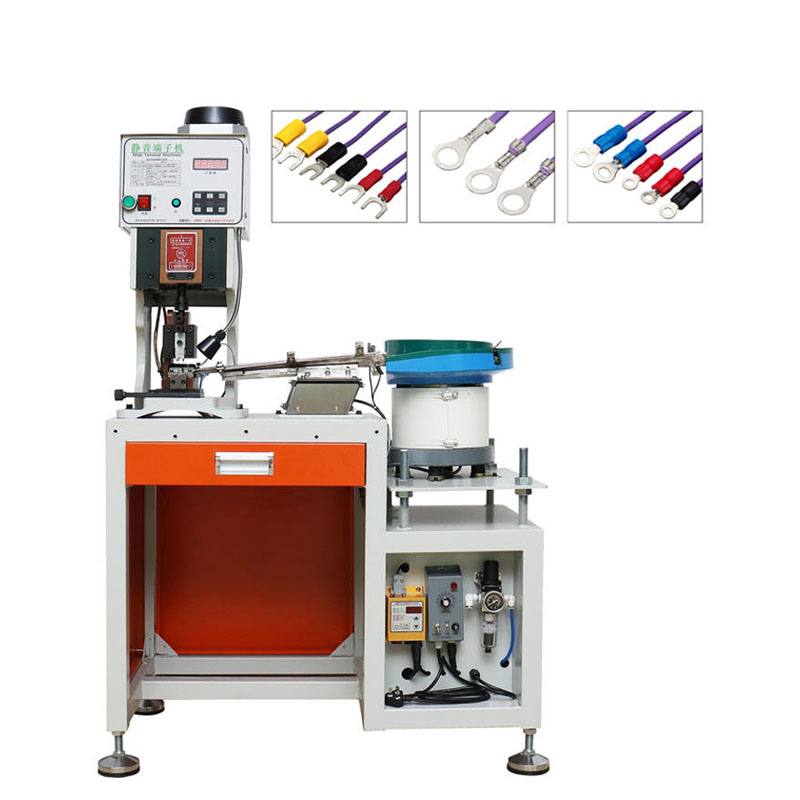

This machine adopts the automatic sorting and feeding method of vibrating plate terminals, which makes up for the inefficiency of manual discharging. The terminal crimping machine uses a reducer, and the motor frequency conversion controls the entire machine.
The electrical performance is stable, and the failure rate is extremely low, which greatly improves The production speed of using single-particle terminals has reached the level of production efficiency using continuous terminals, thereby greatly reducing production costs.
